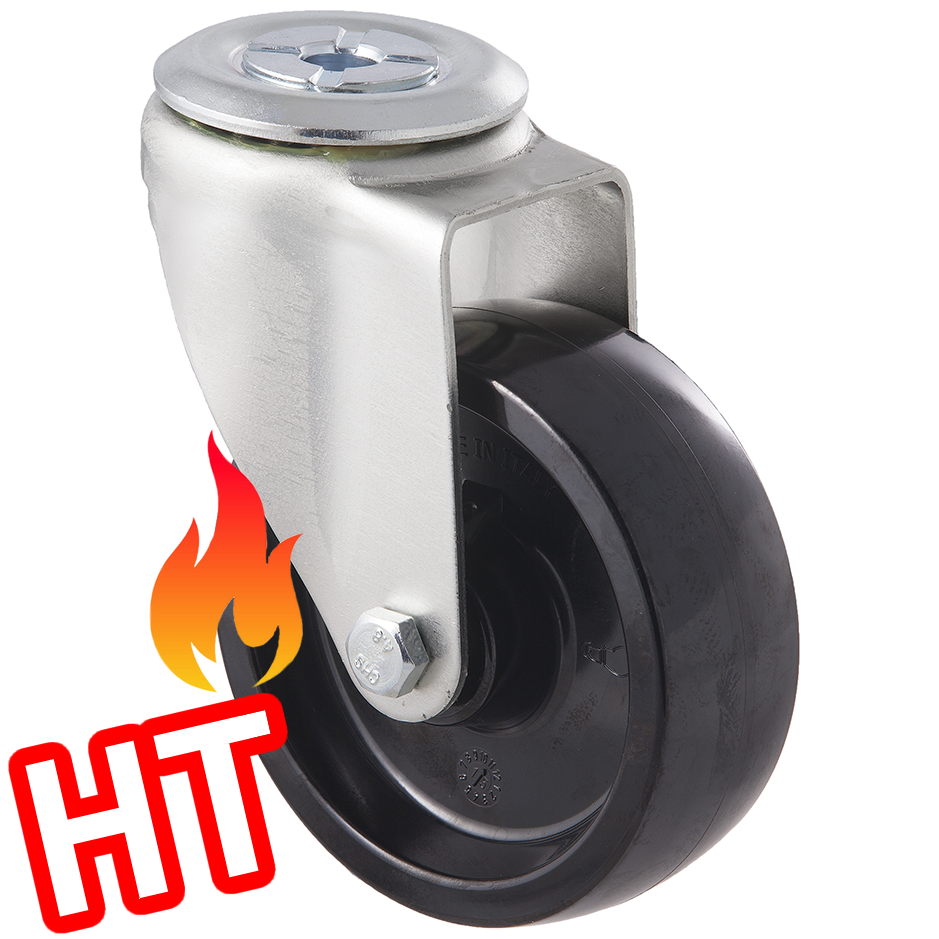

MKT100/MZHHT - 125 kg HIGH TEMP Bolt-Hole 100mm Phenolic Resin

$56.20 $59.20
GST included.
Shipping calculated at checkout.
Data sheet Data Sheet PDF Mounting solutions Mounting Solutions

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours

Call us on (03) 9792 3949 for discounts on trade and quantity orders!

Submit an enquiry

Product Description

Technical Specifications - HIGH TEMP!

  • Castor Type: Bolt-Hole
  • Load Capacity:
    • 125 kg @ 100°C
    • 100 Kg @ 250°C
    • 40 Kg @ 300°C
  • Brake Type: N/A
  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Phenolic
  • Wheel Bearing Type: Teflon Bush
  • Thread Guard Fitted?: No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 35mm
  • Overall Height: 135mm
  • Axle Type: Bolted
  • Swivel Radius (Inc. Brake If Fitted): 91mm

Light industrial high/low temp castor. General use including oven racks, powder coating trolleys and freezer trolleys.

Related Options..

  • Castor Type
    Bolt-Hole Swivel
  • Mounting Type
    Bolt Hole
  • Bolt Hole Diameter
    12.7 mm
  • Frame Finish
    Zinc
  • Maximum Capacity
    125 kg
  • Overall Height
    135 mm
  • Wheel Diameter
    100 mm
  • Tread Material
    Phenolic
  • Tread/Wheel Width
    35 mm
  • Axle Type
    Bolted
  • Bearing Type
    Teflon Bush
  • Product Range
    Premium High Low Temp Castor
