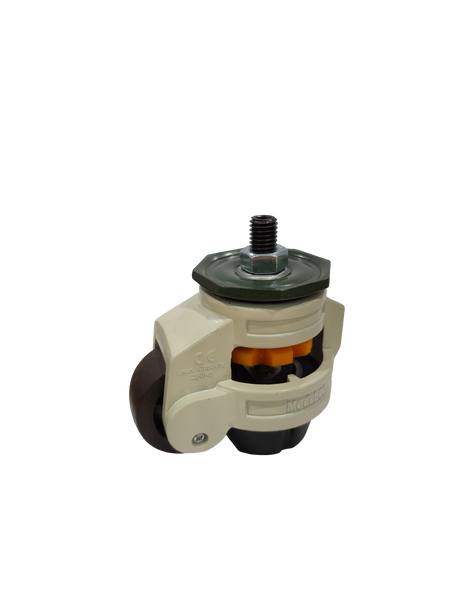

LV50HWHT-BH(12) - Level/Height Adjustment Castor 250kg
Shipping calculated at checkout.
LV50HWHT-BH(12) is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
LV50HWHT-BH(12) is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU LV50HWHT-BH(12)
-
Castor TypeLevelling Castor
-
Capacity250 kg
-
Swivel Radius63 mm
-
Overall Height85 mm
-
Lift Height+10 mm
- Wheel
-
Wheel DiameterØ50 mm
-
Tread Width24 mm
-
Tread MaterialNylon
- Frame
-
Frame FinishCream Powder Coat
-
Mounting TypeThreaded Pintle
-
Pintle ThreadM12
-
Thread Length40 mm
- Frame
-
Axle TypeBolted
- Bearing & Bore
-
TypeBush
- Lift Operation: Rotating ringer operated wheel (orange)
- Adjustment Range: +10mm
- Overall Height: 85-95mm
The LV50HWHT-BH(12) 50mm levelling castor combines a nylon swivel wheel with an adjustable rubber foot and M12 threaded pintle mounting. Rated at 250kg per castor, it suits workbenches, machinery and displays with a compatible mounting arrangement.
The finger-operated handwheel provides 10mm of height adjustment. Lower the foot to lift the wheel off the floor, level the equipment and support it on vibration-reducing rubber. Wind the foot back up to return the load to the wheel for repositioning.
This model features a cream powder-coated cast alloy body, a 40mm pintle thread length and an overall height adjustable from 85 to 95mm.
For heavier loads, relieve the load on the castor before adjusting the foot.

Data Sheet PDF
