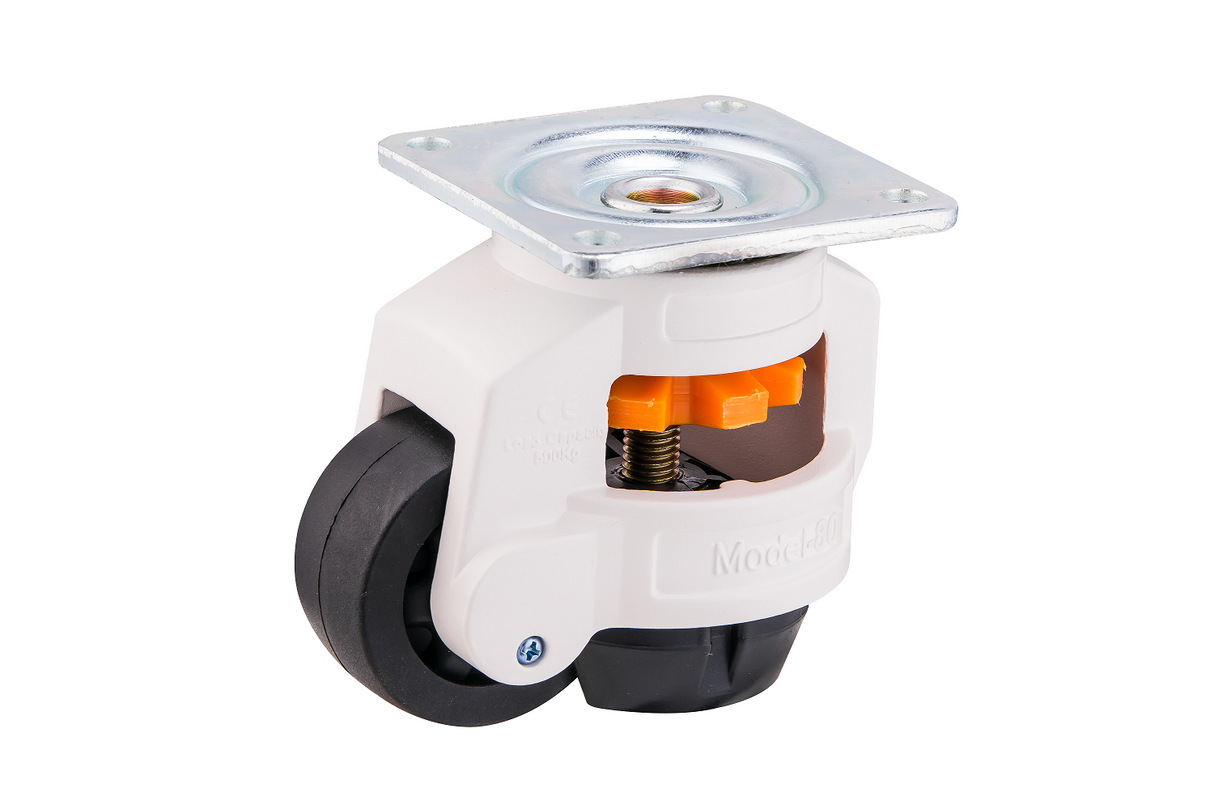

LV50HWHT - Level/Height Adjustment Castor 250kg

Product Description

Technical Specifications

• Castor Type: Swivel
• Load Capacity: 250 Kg per castor
• Mounting Type: Plate, 73mm x 73mm - Holes 7mm 58mm x 58mm Centres
• Wheel Material: Nylon
• Wheel Bearing Type: Plain Bush
• Frame Finish: Cream Powder Coat
• Wheel Diameter X Tread Width: 50mm x 24mm
• Swivel Radius: 63mm
• Lift/Levelling Operation: Finger Operated Rotating Wheel (orange)
• -adjustable Range: 0-10mm
• Overall Height: Castor 85mm+10mm at max height adjustment

Finger operated levelling castor. Anti vibration rubber foot and nylon wheel. Cast alloy body with powder coat finish. Once the rubber foot is lowered the castor wheel is raised off the ground (heavier loads must be taken off castors to allow adjustment). When the foot is wound up the wheel contacts the ground and becomes a swivel castor. Suitable for workbenches, pool tables, machinery and displays.1000kgmax loadover 4 units.
