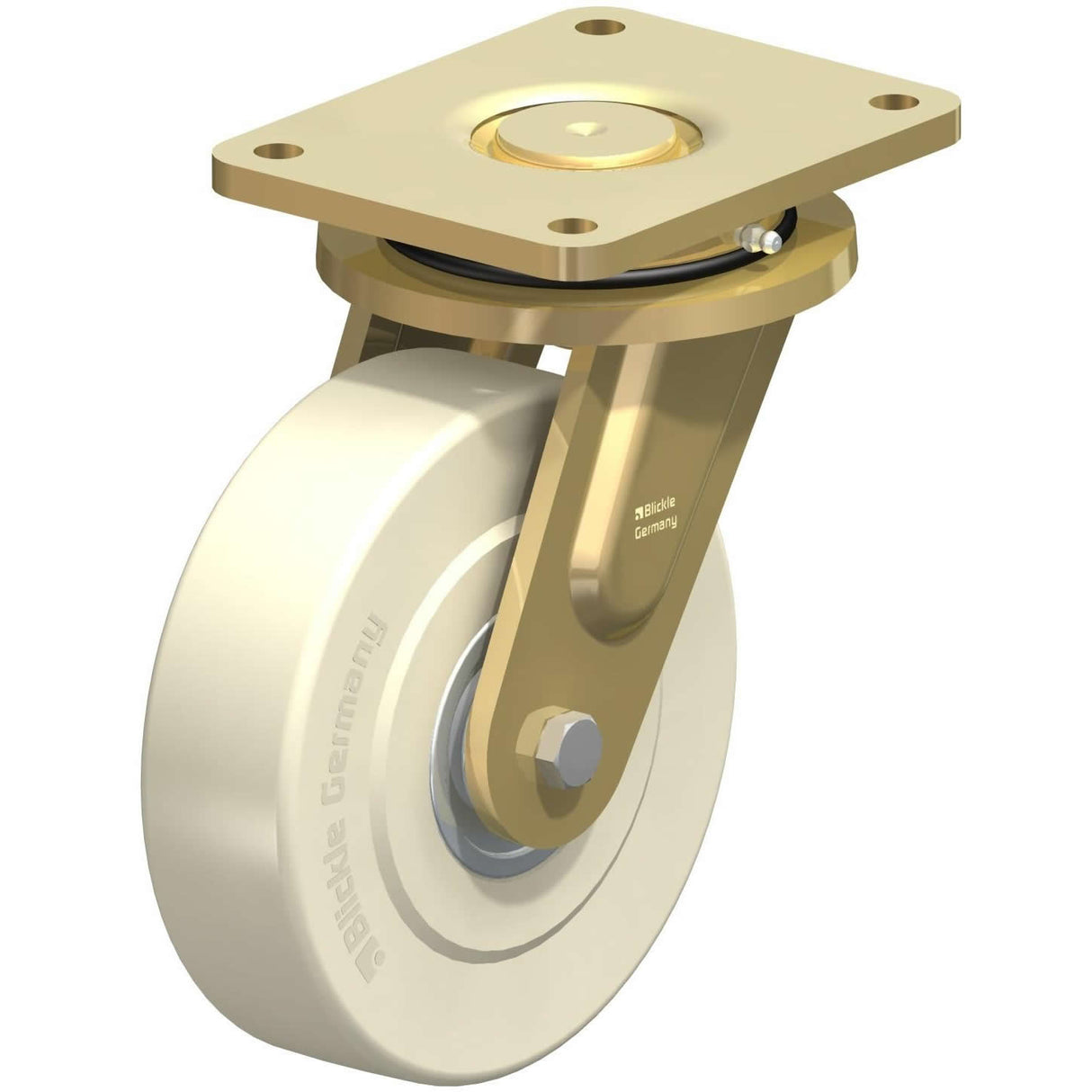

LS-GSPO 200K-35 3000 kg Swivel Plate 200mm High Impact Polymer/Cast Nylon
Regular price
$569.00
Unit price
GST included.
Shipping calculated at checkout.
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
LS-GSPO 200K-35 3000 kg Swivel Plate 200mm High Impact Polymer/Cast Nylon is backordered and will ship as soon as it is back in stock.
Notify me when this is back in stock
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Contact us
for discounts on trade and large quantity orders!
LS-GSPO 200K-35 3000 kg Swivel Plate 200mm High Impact Polymer/Cast Nylon is backordered and will ship as soon as it is back in stock.
-
Castor TypeSwivel
-
Capacity3,000 kg
-
Overall Height255 mm
- Wheel
-
Wheel Diameter200 mm
-
Tread Width55 mm
-
Tread MaterialHigh Impact Polymer
-
Axle TypeBolted
- Frame
-
Frame FinishZinc
- Bearing
-
TypeBall Bearing
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 3000 kg
- Brake Type: N/A

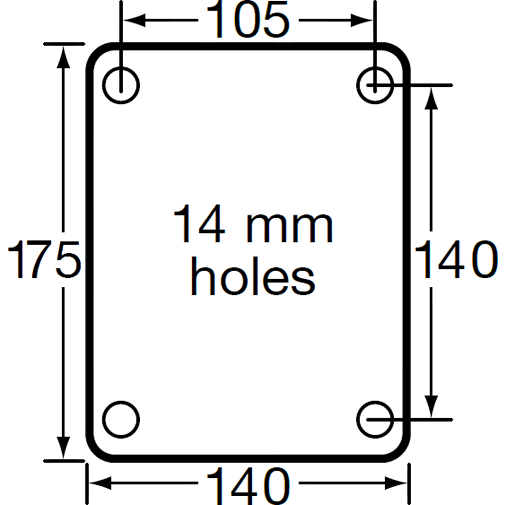

- Mounting Type: Plate
- Wheel Material: High Impact Polymer (HIP)/Cast Nylon
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 55mm
- Overall Height: 255mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 165mm
Heavy industrial High Impact Polymer (HIP) Cast Nylon castor. Suitable for demanding high load applications. Cast nylon will greatly reduce push effort with increased capacity.
