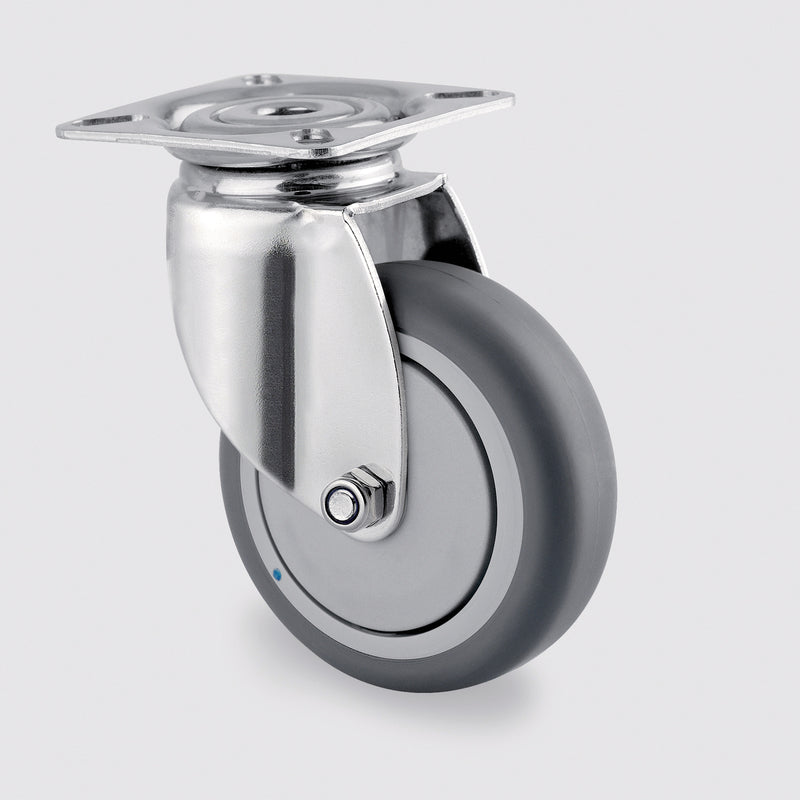

KSS07525-TPB 75 kg Swivel Plate 75mm Stainless Steel Grey TPE
Regular price
$42.34
Unit price
GST included.
Shipping calculated at checkout.
Shipping calculated at checkout.
No Listed Alternatives
We're sorry, no direct alternatives have been listed at this time.
Please contact the sales team on (03) 9792 3949 for assistance.
Data Sheet PDF
3D Model
KSS07525-TPB 75 kg Swivel Plate 75mm Stainless Steel Grey TPE is backordered and will ship as soon as it is back in stock.
Notify me when this is back in stock
Contact us
for discounts on trade and large quantity orders!
KSS07525-TPB 75 kg Swivel Plate 75mm Stainless Steel Grey TPE is backordered and will ship as soon as it is back in stock.
-
Castor TypeSwivel
-
Capacity75 kg
-
Overall Height100 mm
- Wheel
-
Wheel Diameter75 mm
-
Tread Width25 mm
-
Tread MaterialGrey TPE
-
Axle TypeBolted
- Frame
-
Frame FinishStainless Steel
- Bearing
-
TypeBall Bearing
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 75 kg
- Brake Type: N/A

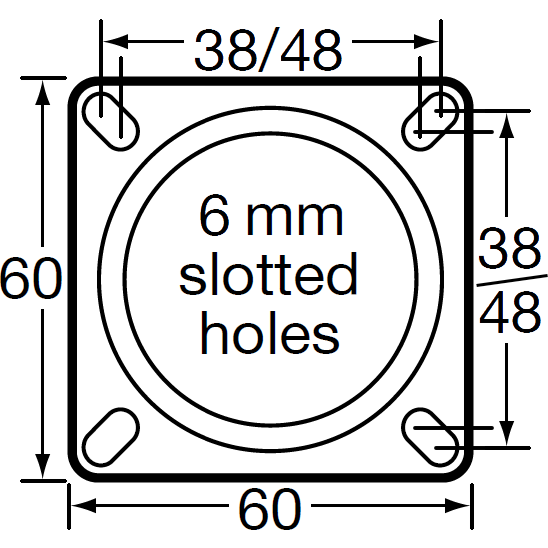

- Mounting Type: Plate
- Wheel Material: Grey TPE
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: Yes
- Frame Finish: Stainless Steel
- Wheel Diameter X Tread Width: 75mm x 25mm
- Overall Height: 100mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 67mm
Light duty stainless steel castors with grey TPE rubber-tyred wheels. General use on light duty applications where corrosion resistance is required such as medical equipment, food equipment, wet areas and outdoor furniture.
