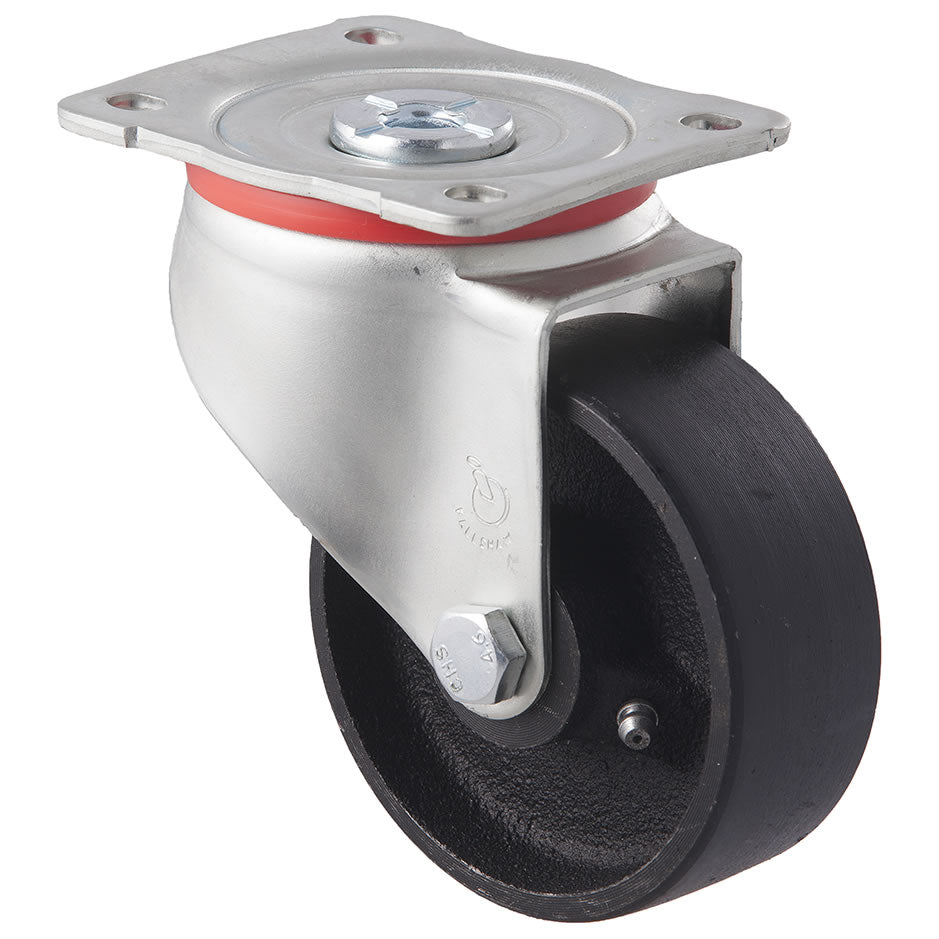

JCI100/JZP 230 Kg Zinc Castor Swivel Cast Iron 100mm x 38mm

Description

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 230 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 38mm
  • -Overall Height- 129mm
  • -Axle Type- Bolted

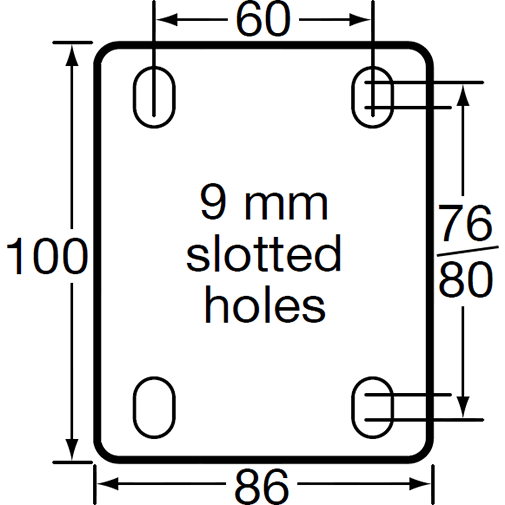

  • -Mounting Plate Dimensions- 100mm x 86mm
  • -Mounting Plate Hole Centres- 80/76mm x 60mm
  • -Mounting Plate Hole Diameter- 9mm Slotted
  • -Swivel Radius (inc. brake if fitted)- 90mm

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging.  Can be used for high temperature applications, please contact us for further information.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

$47.80 (Incl. GST)
