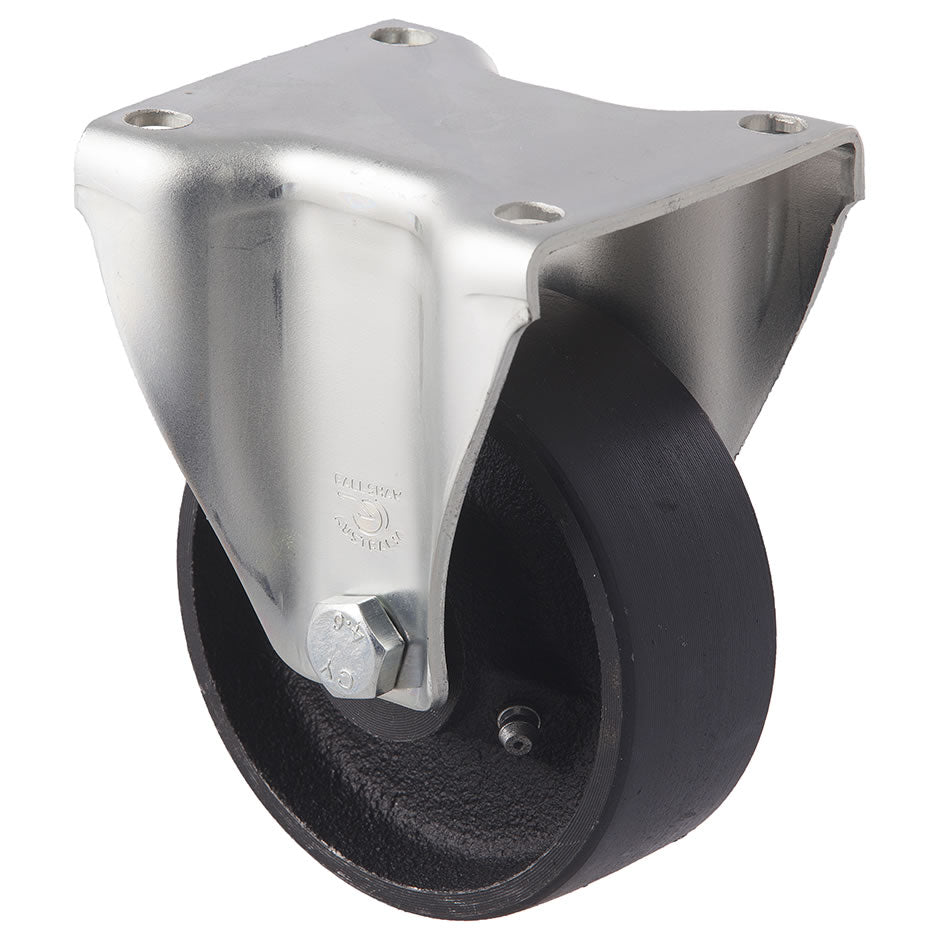

JCI100/JZF 230 Kg Zinc Castor Fixed Cast Iron 100mm x 38mm

Description

Technical Specifications:

  • Castor Type: Fixed
  • Load Capacity: 230 Kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Cast Iron
  • Wheel Bearing Type: Plain
  • Thread guard Fitted? No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 38mm
  • Overall Height: 129mm
  • Axle Type: Bolted

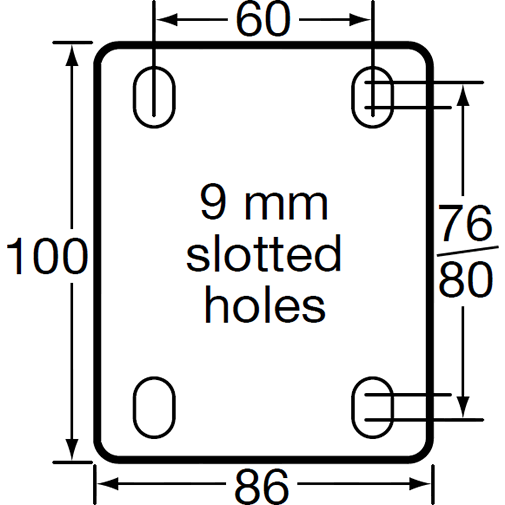

  • Mounting Plate Dimensions: 100mm x 86mm
  • Mounting Plate Hole Centres: 80/76mm x 60mm
  • Mounting Plate Hole Diameter: 9mm Slotted
  • Swivel Radius (inc. brake if fitted):

Medium industrial cast iron castor. General use including warehouse trolleys, engineering, transport and staging.

Download Specifications PDF

Delivery or in-store pickup available.

$39.55 (Incl. GST)
