HBR150 230 Kg Blue Rubber Wheel

BH-G150K 900 Kg Zinc Castor Fixed Cast Iron 150mm x 50mm

$84.85 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 900 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- Cast Iron
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 150mm x 50mm
• -Overall Height- 197mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 140mm x 110mm
• -Mounting Plate Hole Centres- 105mm x 75mm-80mm
• -Mounting Plate Hole Diameter- 11mm
• -Swivel Radius (Inc. brake if fitted)- N/A

Heavy industrial cast iron castor. Suitable for high loads in demanding applications, such as metal working workshops, foundries and other application where tyred wheels fail.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BH-GTH150K 750 Kg Zinc Castor Fixed P/U on Cast Iron 150mm x 50mm

$105.40 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 750 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Cast Iron
• -Wheel Bearing Type- Ball Bearing
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 150mm x 50mm
• -Overall Height- 197mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 140mm x 110mm
• -Mounting Plate Hole Centres- 105mm x 75mm-80mm
• -Mounting Plate Hole Diameter- 11mm
• -Swivel Radius (inc. brake if fitted)- N/A

Heavy industrial polyurethane tyred cast iron castor. Suitable for demanding high load applications and can be power towed. Polyurethane tyre will protect floor surface and reduce noise.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

BP15050B 250 Kg Blue Rubber Wheel

$30.80 (Incl. GST)

Technical Specifications

• -Load Capacity- 250 Kg
• -Wheel Diameter- 150mm
• -Wheel Material- Polypropylene
• -Tyre Material- Blue Rubber
• -Tread Width- 45mm
• -Hub Length (unsleeved)- 56mm
• -Hub Length (sleeved)- 62mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 12.7mm (1/2")
• -Sleeve Type- Top Hat Pair
• -Bearing Type- Ball Bearings

Heavy Industrial blue rubber wheel only (fitted with ball bearings - and supplied with 2 top hat spacers)

Delivery or in-store pickup available.

G150/20K 900 Kg Cast Iron Wheel

$52.95 (Incl. GST)

Technical Specifications

• -Load Capacity-  900 Kg
• -Wheel Diameter- 150mm
• -Wheel Material- Cast Iron
• -Tyre Material- Cast Iron
• -Tread Width- 50mm
• -Hub Length (unsleeved)- 60mm
• -Hub Length (sleeved)- 65.1mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 12.7mm(1/2")
• -Sleeve Type- Top Hat Pair
• -Bearing Type- Ball Bearings

Heavy Industrial cast iron wheel only - fitted with 20mm ball bearings. Option with top hat reducing pair (reduced to 1/2" ) for mounting into castors.

Delivery or in-store pickup available.

GTH150/20K 750 Kg Polyurethane Wheel

$72.90 (Incl. GST)

Technical Specifications

• -Load Capacity- 750 Kg
• -Wheel Diameter- 150mm
• -Wheel Material- Cast Iron
• -Tyre Material- Polyurethane
• -Tread Width- 50mm
• -Hub Length (unsleeved)- 60mm
• -Hub Length (sleeved)- 65.1mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 12.7mm(1/2")
• -Sleeve Type- Top Hat Pair
• -Bearing Type- Ball Bearings

Heavy Industrial polyurethane tyred cast iron wheel only - fitted with ball bearings

Delivery or in-store pickup available.

GTHN150/25H7 150mm x 50mm Polyurethane on Cast Iron Drive Wheel w/ H7 Keyway

$132.55 (Incl. GST)

Technical Specifications

• -Load Capacity-  650 Kg
• -Wheel Diameter-  150mm
• -Wheel Material-  Cast Iron
• -Tyre Material-  Polyurethane
• -Tread Width-  50mm
• -Hub Length (unsleeved)-  60mm
• -Hub Length (sleeved)- N/A
• -Bore Diameter (Unsleeved)-  25mm w/ H7 Keyway
• -Sleeved Bore Diameter Options- N/A
• -Sleeve Type- N/A
• -Bearing Type- N/A
•


Delivery or in-store pickup available.

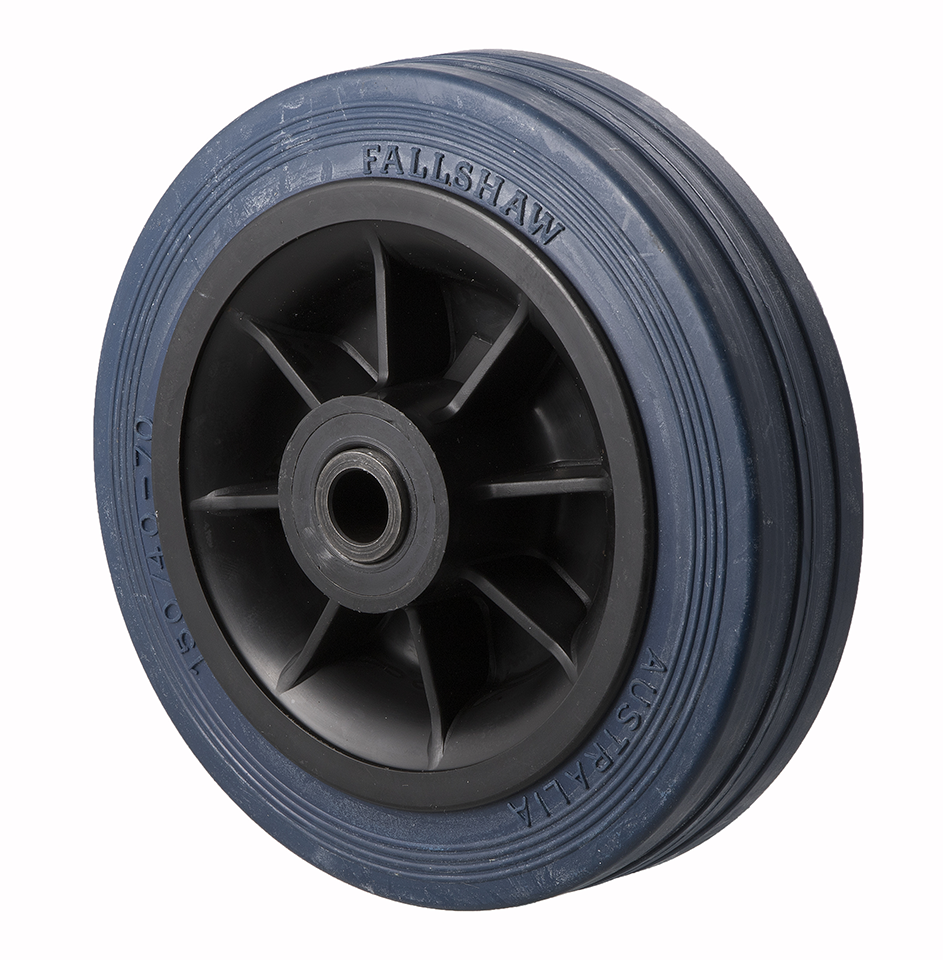

HBA150 230 Kg Blue Rubber Wheel

$33.70 (Incl. GST)

Technical Specifications

• -Load Capacity- 230 Kg
• -Wheel Diameter- 150mm
• -Wheel Material- Black Nylon
• -Tyre Material- Blue Rubber
• -Tread Width- 32mm
• -Hub Length (unsleeved)- 60mm
• -Hub Length (sleeved)- 61.3mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 13mm
• -Sleeve Type- Spacer Tube
• -Bearing Type- Plain

Heavy Industrial blue rubber/nylon wheel - plain bore (supplied with spacer sleeve)

Delivery or in-store pickup available.

HBA150S 230 Kg Blue Rubber Wheel

$39.60 (Incl. GST)

Technical Specifications

• -Load Capacity- 230 Kg
• -Wheel Diameter- 150mm
• -Wheel Material- Black Nylon
• -Tyre Material- Blue Rubber
• -Tread Width- 32mm
• -Hub Length (unsleeved)- 60mm
• -Hub Length (sleeved)- 61.3mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 13mm
• -Sleeve Type- S/S Spacer Tube
• -Bearing Type- Plain

Heavy Industrial blue rubber/nylon wheel - plain bore (supplied with S/S spacer sleeve)

Delivery or in-store pickup available.

HBS150 230 Kg Blue Rubber Wheel

$44.70 (Incl. GST)

Technical Specifications

• -Load Capacity- 230 Kg
• -Wheel Diameter- 150mm
• -Wheel Material- Black Nylon
• -Tyre Material- Blue Rubber
• -Tread Width- 32mm
• -Hub Length (unsleeved)- 60mm
• -Hub Length (sleeved)- 61.3mm
• -Bore Diameter (Unsleeved)- 20mm
• -Sleeved Bore Diameter Options- 13mm
• -Sleeve Type- S/S Spacer Tube
• -Bearing Type- S/S Roller

Heavy Industrial blue rubber/nylon wheel - S/S roller bearing fitted (supplied with S/S spacer sleeve)

Delivery or in-store pickup available.

HIN6F-CIPU 400 Kg Zinc Castor Fixed P/U on Cast Iron 150mm x 50mm

$37.95 (Incl. GST)

Technical Specifications

• -Castor Type- Fixed
• -Load Capacity- 400 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Cast Iron
• -Wheel Bearing Type- Precision Ball Bearing
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 150mm x 50mm
• -Overall Height- 191mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 114mm x 100mm
• -Mounting Plate Hole Centres- 85mm x 72mm
• -Mounting Plate Hole Diameter- 11mm
• -Swivel Radius (inc. brake if fitted)- N/A

Economy heavy duty castor, polyurethane on cast iron wheel fitted with precision ball bearings. Suitable for work benches, heavy trolleys, workshop equipment.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

HIN6S-CIPU 400 Kg Zinc Castor Swivel P/U on Cast Iron 150mm x 50mm

$40.95 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 400 Kg
• -Brake Type- N/A
• -Mounting Type- Plate
• -Wheel Material- P/U on Cast Iron
• -Wheel Bearing Type- Precision Ball Bearing
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 150mm x 50mm
• -Overall Height- 191mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 114mm x 100mm
• -Mounting Plate Hole Centres- 85mm x 72mm
• -Mounting Plate Hole Diameter- 11mm
• -Swivel Radius (inc. brake if fitted)- 115mm

Economy heavy duty castor, polyurethane on cast iron wheel fitted with precision ball bearings. Suitable for work benches, heavy trolleys, workshop equipment.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

HIN6SB-CIPU 400 Kg Zinc Castor Swivel Total Brake P/U on Cast Iron 150mm x 50mm

$53.75 (Incl. GST)

Technical Specifications

• -Castor Type- Swivel
• -Load Capacity- 400 Kg
• -Brake Type- Total Brake
• -Mounting Type- Plate
• -Wheel Material- P/U on Cast Iron
• -Wheel Bearing Type- Precision Ball Bearing
• -Thread guard Fitted?- No
• -Frame Finish- Zinc
• -Wheel Diameter X Tread Width- 150mm x 50mm
• -Overall Height- 191mm
• -Axle Type- Bolted
• -Mounting Plate Dimensions- 114mm x 100mm
• -Mounting Plate Hole Centres- 85mm x 72mm
• -Mounting Plate Hole Diameter- 11mm
• -Swivel Radius (inc. brake if fitted)- 141mm

Economy heavy duty castor, polyurethane on cast iron wheel fitted with precision ball bearings. Suitable for work benches, heavy trolleys, workshop equipment.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.
