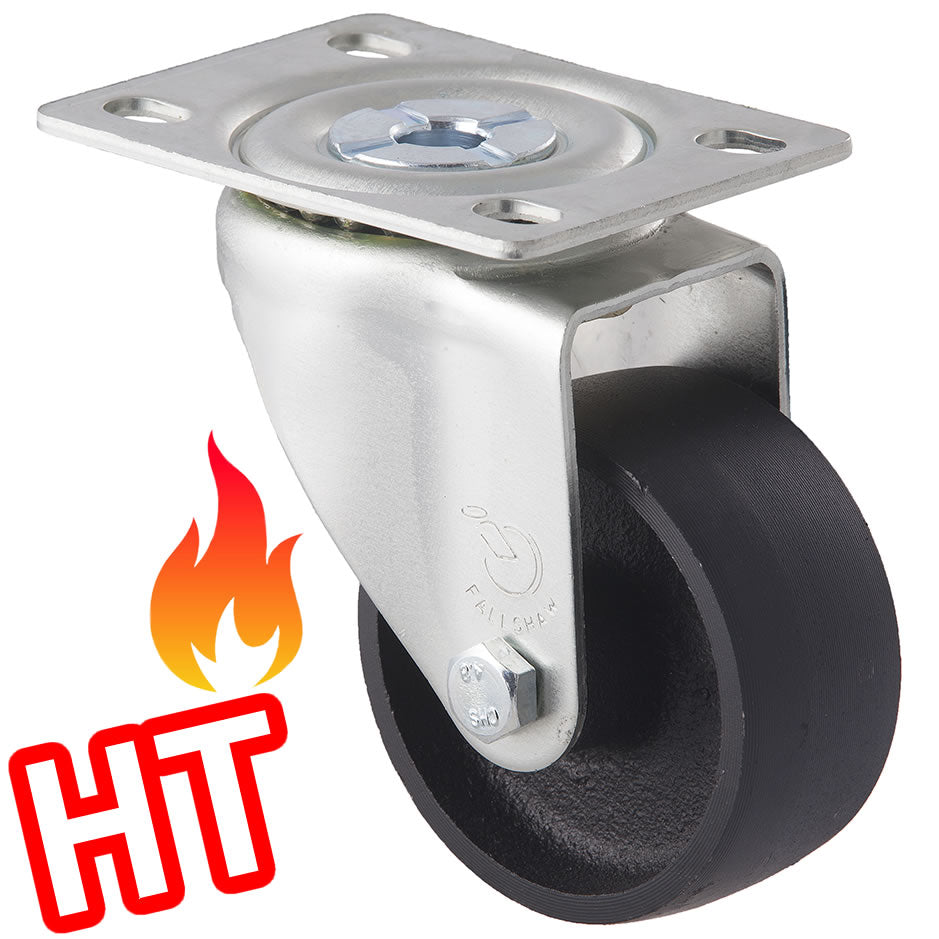

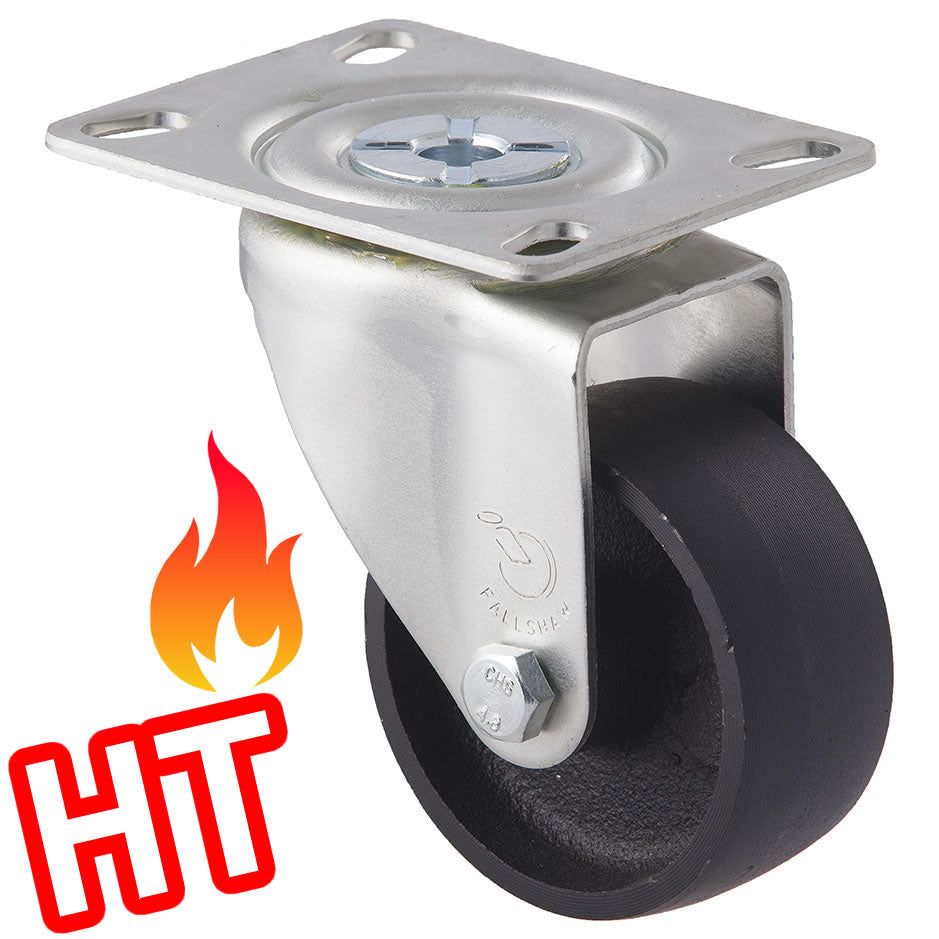

DCI75/MZPHT 100 Kg Zinc Castor Swivel Cast Iron 75mm x 32mm

Description

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 100 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 75mm x 32mm
  • -Overall Height- 106mm
  • -Axle Type- Bolted

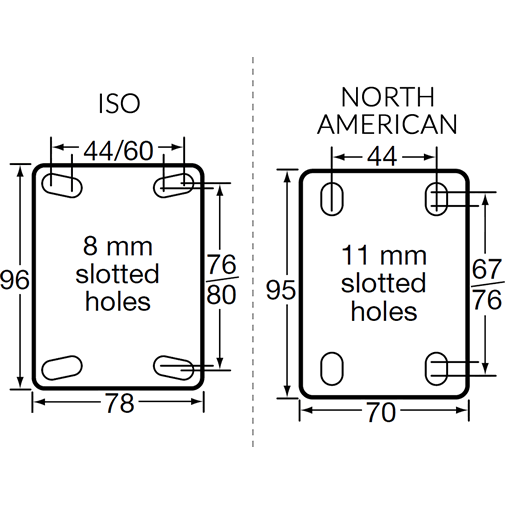

  • -Mounting Plate Dimensions- 96mm x 78mm
  • -Mounting Plate Hole Centres- 80/76mm x 60/44mm
  • -Mounting Plate Hole Diameter- 9mm Slotted
  • -Swivel Radius (inc. brake if fitted)- 71mm

Light industrial cast iron castor. General use including warehouse trolleys, engineering and furniture.

<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

$33.85 (Incl. GST)
