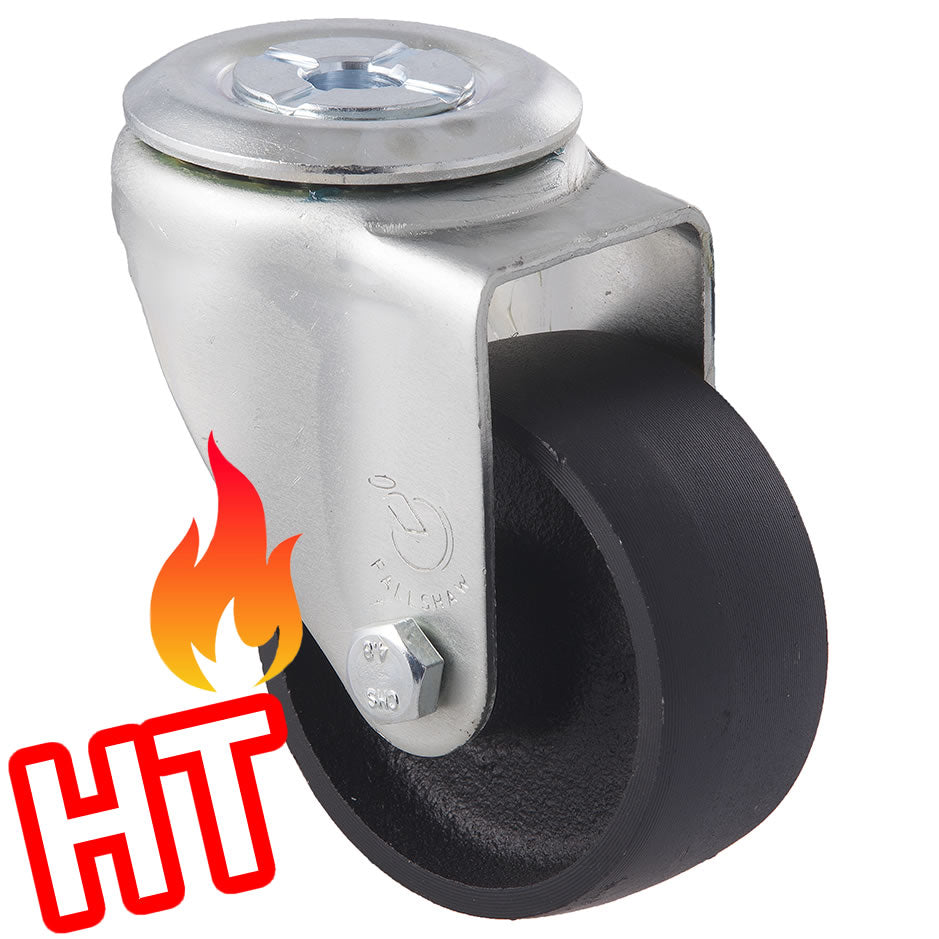

DCI75/MZHHT 100 Kg Zinc Castor Bolt-Hole Cast Iron 75mm x 32mm
Related Items
1013 100 Kg 6mm Round Groove Wheel
$37.40 (Incl. GST)
Technical Specifications
- -Groove Type- 6mm Round Groove
- -Load Capacity- 100 Kg
- -Wheel Diameter- 100mm
- -Wheel Material- Steel
- -Finish- Zinc Plated
- -Tyre Material- Steel
- -Tread Width- 13mm
- -Groove Width- 6mm
- -Groove Depth- 7mm
- -Hub Length (unsleeved)- 12mm
- -Hub Length (sleeved)- 17mm
- -Bore Diameter (unsleeved)- 17mm
- -Sleeved Bore Diameter Options- 12mm
- -Sleeve Type- Top Hat Pair (Included)
- -Bearing Type- Ball Bearing
- -Axle Bolt/Nut Supplied? No
Machined steel rope groove pulley, suits 6mm wire rope.
Delivery or in-store pickup available.
1213 100 Kg 6mm Round Groove Wheel
$45.00 (Incl. GST)
Technical Specifications
- -Groove Type- 6mm Round Groove
- -Load Capacity- 100 Kg
- -Wheel Diameter- 120mm
- -Wheel Material- Steel
- -Finish- Zinc Plated
- -Tyre Material- Steel
- -Tread Width- 13mm
- -Groove Width- 6mm
- -Groove Depth- 7mm
- -Hub Length (unsleeved)- 12mm
- -Hub Length (sleeved)- 17mm
- -Bore Diameter (unsleeved)- 17mm
- -Sleeved Bore Diameter Options- 12mm
- -Sleeve Type- Top Hat Pair (Included)
- -Bearing Type- Ball Bearing
- -Axle Bolt/Nut Supplied? No
Machined steel rope groove pulley, suits 6mm wire rope.
Delivery or in-store pickup available.
250X4-4PR-ZZ-G 100 Kg Plastic Centre Pneumatic Wheel
$37.65 (Incl. GST)
Technical Specifications
- -Load Capacity- 100 Kg
- -Nominal Wheel Diameter- 220mm
- -Nominal Tread Width- 40mm
- -Tyre Type & Tread Style- Grey, Power Edge Pattern
- -Ply Rating- 4 ply
- -Rim Diameter- 4"
- -Rim Material- Red Plastic
- -Rim Style- 1 piece
- -Boss Width- 63mm
- -Hub Type- Central
- -Bore Diameter- 20mm
- -Bearing Type- Unground Ball Bearing
Grey non-marking, plastic centred pneumatic wheel, tube type, unground bearings - UV stabilised.
Delivery or in-store pickup available.
250X4LGG-PWA10 100 Kg Plastic Centre Pneumatic Wheel
$37.65 (Incl. GST)
Technical Specifications
- -Load Capacity- 100 Kg
- -Nominal Wheel Diameter- 220mm
- -Nominal Tread Width- 45mm
- -Tyre Type & Tread Style- Grey, Lug Pattern
- -Ply Rating- 4 ply
- -Rim Diameter- 4"
- -Rim Material- Red Plastic
- -Rim Style- 1 piece
- -Boss Width- 60mm
- -Hub Type- Central
- -Bore Diameter- 1"
- -Bearing Type- Acetyl Bush
Grey non-marking, plastic centred pneumatic wheel, tube type, plain bush - UV stabilised
Delivery or in-store pickup available.
250X4LGG-PWA20 100 Kg Plastic Centre Pneumatic Wheel
$37.65 (Incl. GST)
Technical Specifications
- -Load Capacity- 100 Kg
- -Nominal Wheel Diameter- 220mm
- -Nominal Tread Width- 45mm
- -Tyre Type & Tread Style- Grey, Lug Pattern
- -Ply Rating- 4 ply
- -Rim Diameter- 4"
- -Rim Material- Red Plastic
- -Rim Style- 1 piece
- -Boss Width- 60mm
- -Hub Type- Central
- -Bore Diameter- 20mm
- -Bearing Type- Acetyl Bush
Grey non-marking, plastic centred pneumatic wheel, tube type, plain bush - UV stabilised
Delivery or in-store pickup available.
250X4LGG-PWA34 100 Kg Plastic Centre Pneumatic Wheel
$37.65 (Incl. GST)
Technical Specifications
- -Load Capacity- 100 Kg
- -Nominal Wheel Diameter- 220mm
- -Nominal Tread Width- 45mm
- -Tyre Type & Tread Style- Grey, Lug Pattern
- -Ply Rating- 4 ply
- -Rim Diameter- 4"
- -Rim Material- Red Plastic
- -Rim Style- 1 piece
- -Boss Width- 60mm
- -Hub Type- Central
- -Bore Diameter- 3/4"
- -Bearing Type- Acetyl Bush
Grey non-marking, plastic centred pneumatic wheel, tube type, plain bush - UV stabilised
Delivery or in-store pickup available.
250X4LGG-PWA58 100 Kg Plastic Centre Pneumatic Wheel
$37.65 (Incl. GST)
Technical Specifications
- -Load Capacity- 100 Kg
- -Nominal Wheel Diameter- 220mm
- -Nominal Tread Width- 45mm
- -Tyre Type & Tread Style- Grey, Lug Pattern
- -Ply Rating- 4 ply
- -Rim Diameter- 4"
- -Rim Material- Red Plastic
- -Rim Style- 1 piece
- -Boss Width- 60mm
- -Hub Type- Central
- -Bore Diameter- 5/8"
- -Bearing Type- Acetyl Bush
Grey non-marking, plastic centred pneumatic wheel, tube type, plain bush - UV stabilised
Delivery or in-store pickup available.
250X4LGG-PWB20 100 Kg Plastic Centre Pneumatic Wheel
$37.65 (Incl. GST)
Technical Specifications
- -Load Capacity- 100 Kg
- -Nominal Wheel Diameter- 220mm
- -Nominal Tread Width- 45mm
- -Tyre Type & Tread Style- Grey, Lug Pattern
- -Ply Rating- 4 ply
- -Rim Diameter- 4"
- -Rim Material- Red Plastic
- -Rim Style- 1 piece
- -Boss Width- 60mm
- -Hub Type- Central
- -Bore Diameter- 20mm
- -Bearing Type- Unground Ball Bearing
Grey non-marking, plastic centred pneumatic wheel, tube type, unground bearings - UV stabilised.
Delivery or in-store pickup available.
250X4LGG-PWB34 100 Kg Plastic Centre Pneumatic Wheel
$37.65 (Incl. GST)
Technical Specifications
- -Load Capacity- 100 Kg
- -Nominal Wheel Diameter- 220mm
- -Nominal Tread Width- 45mm
- -Tyre Type & Tread Style- Grey, Lug Pattern
- -Ply Rating- 4 ply
- -Rim Diameter- 4"
- -Rim Material- Red Plastic
- -Rim Style- 1 piece
- -Boss Width- 60mm
- -Hub Type- Central
- -Bore Diameter- 3/4"
- -Bearing Type- Unground Ball Bearing
Grey non-marking, plastic centred pneumatic wheel, tube type, unground bearings - UV stabilised
Delivery or in-store pickup available.
250X4LGG-PWB58 100 Kg Plastic Centre Pneumatic Wheel
$37.65 (Incl. GST)
Technical Specifications
- -Load Capacity- 100 Kg
- -Nominal Wheel Diameter- 220mm
- -Nominal Tread Width- 45mm
- -Tyre Type & Tread Style- Grey, Lug Pattern
- -Ply Rating- 4 ply
- -Rim Diameter- 4"
- -Rim Material- Red Plastic
- -Rim Style- 1 piece
- -Boss Width- 60mm
- -Hub Type- Central
- -Bore Diameter- 5/8"
- -Bearing Type- Unground Ball Bearing
Grey non-marking, plastic centred pneumatic wheel, tube type, unground bearings - UV stabilised
Delivery or in-store pickup available.
250X4LUG-PWA10 100 Kg Plastic Centre Pneumatic Wheel
$31.80 (Incl. GST)
Technical Specifications
- -Load Capacity- 100 Kg
- -Nominal Wheel Diameter- 220mm
- -Nominal Tread Width- 45mm
- -Tyre Type & Tread Style- Black, Lug Pattern
- -Ply Rating- 4 ply
- -Rim Diameter- 4"
- -Rim Material- Red Plastic
- -Rim Style- 1 piece
- -Boss Width- 60mm
- -Hub Type- Central
- -Bore Diameter- 1"
- -Bearing Type- Acetyl Bush
Black rubber, plastic centred pneumatic wheel, tube type, plain bush - UV stabilised
Delivery or in-store pickup available.
250X4LUG-PWA20 100 Kg Plastic Centre Pneumatic Wheel
$31.80 (Incl. GST)
Technical Specifications
- -Load Capacity- 100 Kg
- -Nominal Wheel Diameter- 220mm
- -Nominal Tread Width- 45mm
- -Tyre Type & Tread Style- Black, Lug Pattern
- -Ply Rating- 4 ply
- -Rim Diameter- 4"
- -Rim Material- Red Plastic
- -Rim Style- 1 piece
- -Boss Width- 60mm
- -Hub Type- Central
- -Bore Diameter- 20mm
- -Bearing Type- Acetyl Bush
Black rubber, plastic centred pneumatic wheel, tube type, plain bush - UV stabilised
Delivery or in-store pickup available.
