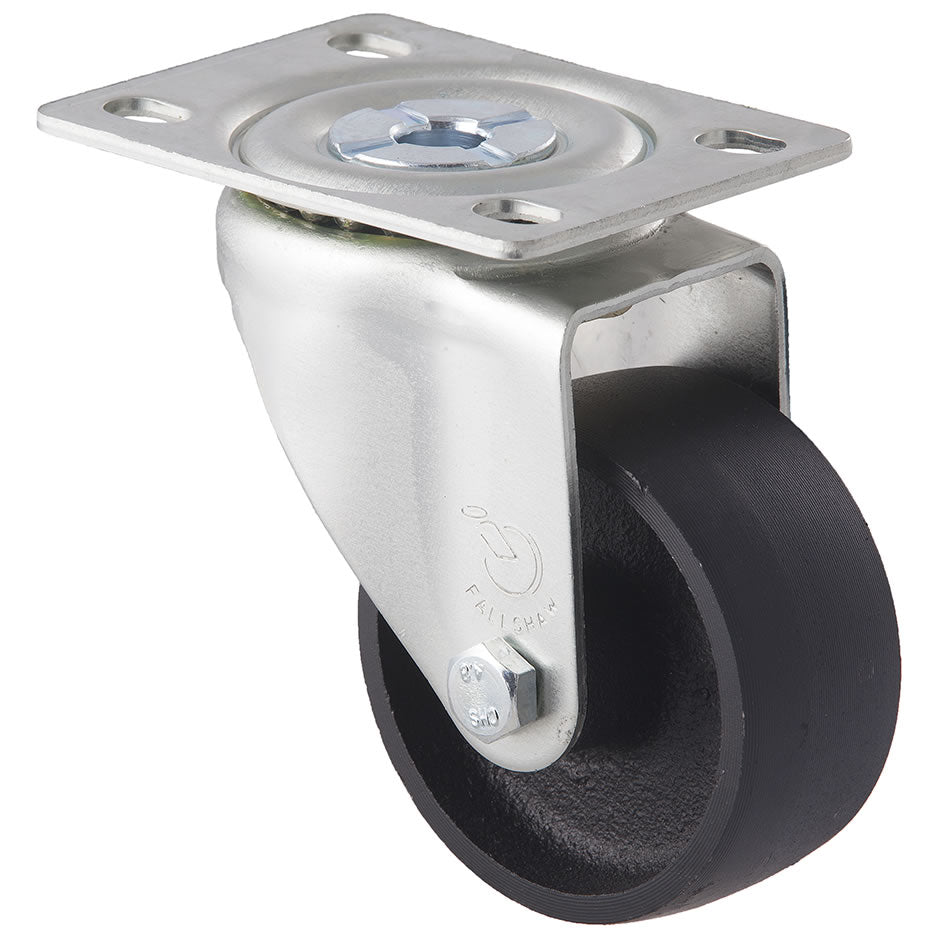

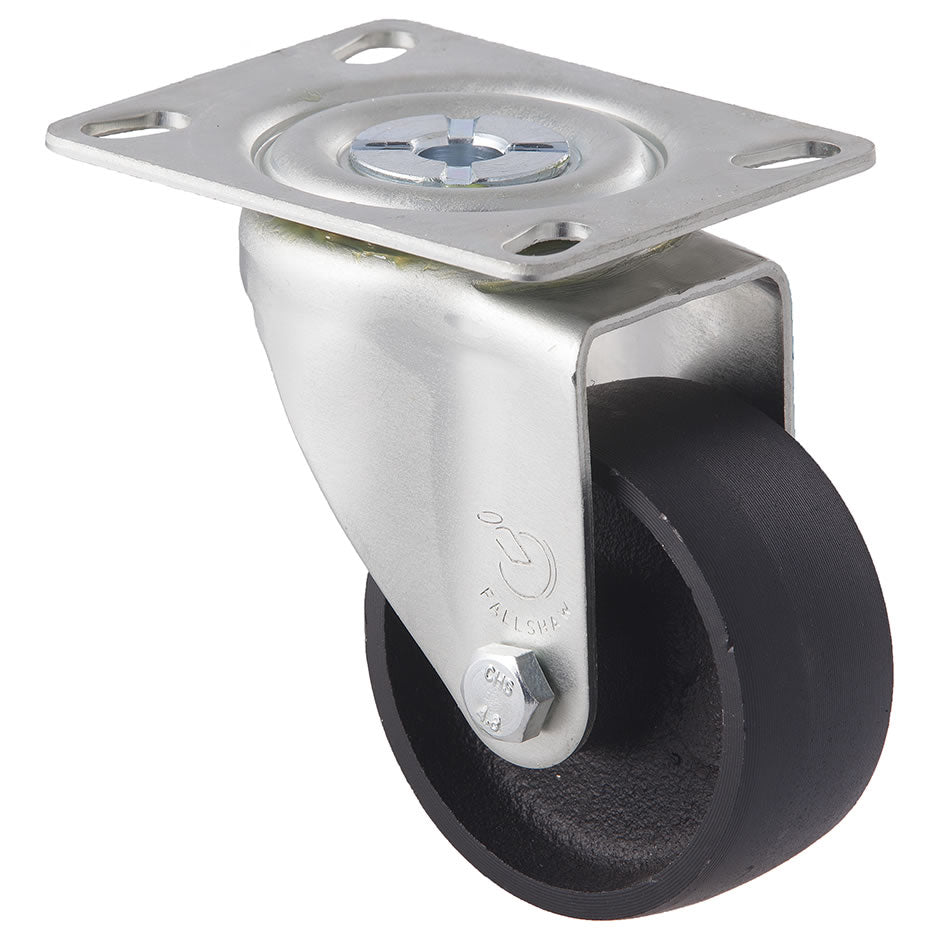

DCI75/MZP 100 Kg Swivel Plate 75mm Cast Iron

Description

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 100 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Cast Iron
  • -Wheel Bearing Type- Plain
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 75mm x 32mm
  • -Overall Height- 106mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 71mm

Light industrial cast iron castor. General use including warehouse trolleys, engineering and furniture.

Also used in oven racks, powder coating trolleys and freezer trolleys.

Related Options..

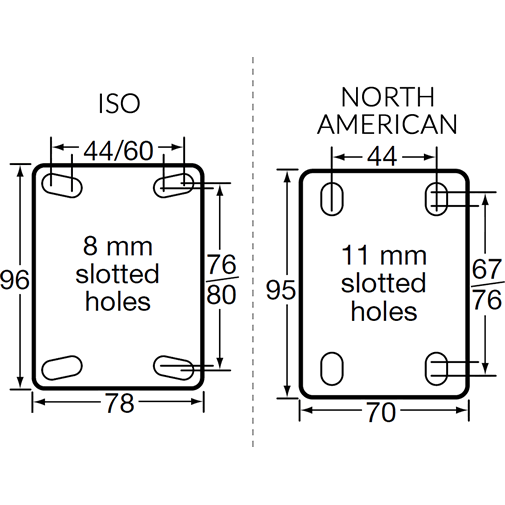

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

Top Plate Option
$31.00 (Incl. GST)
