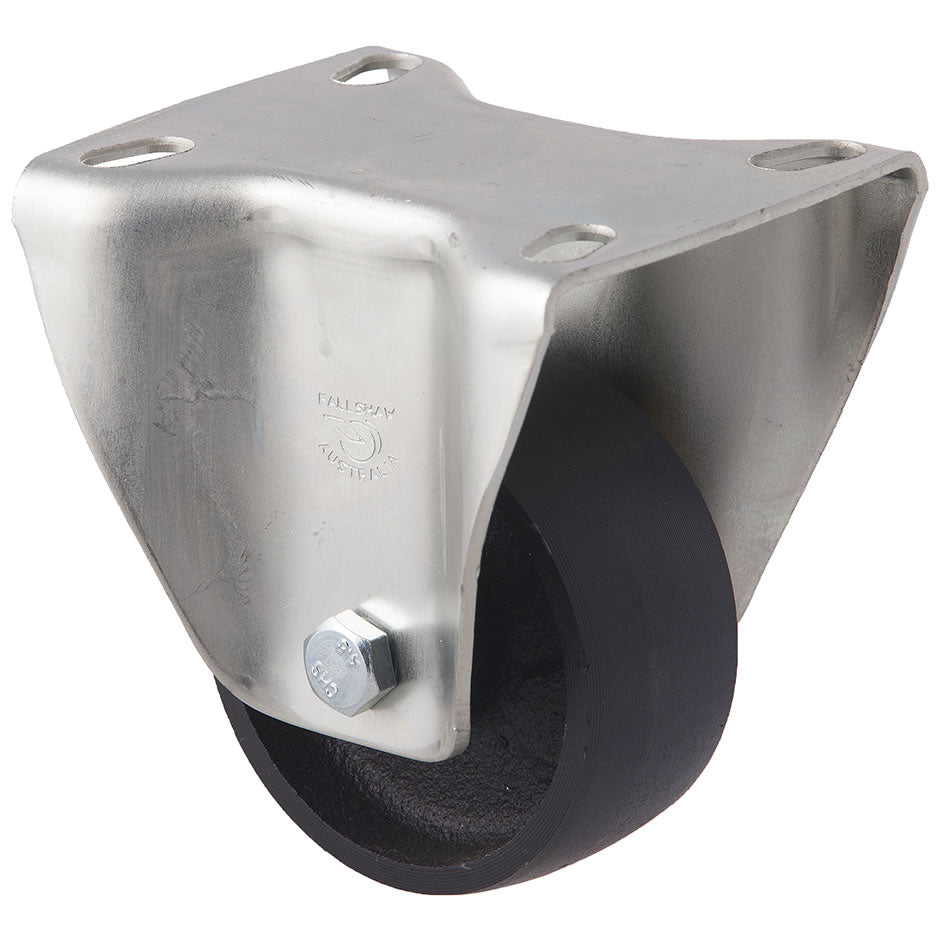

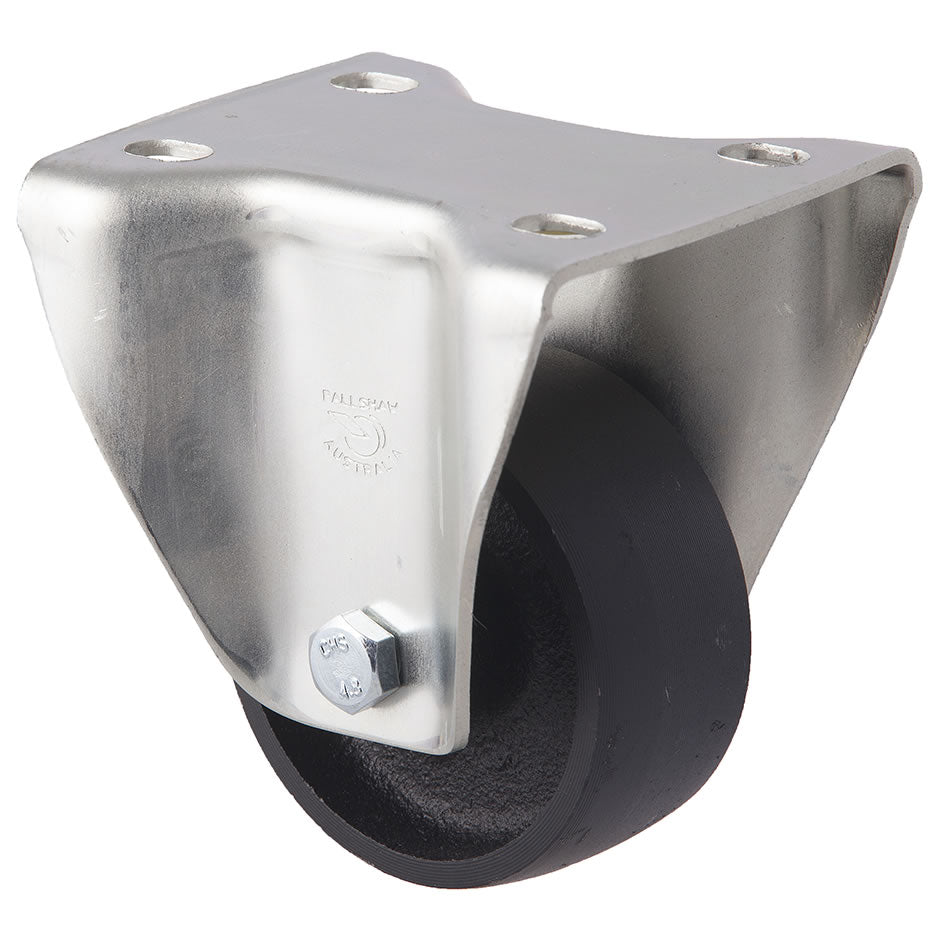

DCI75/MZF - 100 kg Fixed Plate 75mm Cast Iron

$30.10 $31.70
GST included.
Shipping calculated at checkout.
Data Sheet PDF Data Sheet PDF Mounting Solutions Mounting Solutions
Top Plate Option

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours

Contact us for discounts on trade and large quantity orders!

Product Description

Technical Specifications

  • Castor Type: Fixed
  • Load Capacity: 100 kg
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Cast Iron
  • Wheel Bearing Type: Plain
  • Thread Guard Fitted?: No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 75mm x 32mm
  • Overall Height: 106mm
  • Axle Type: Bolted
  • Swivel Radius (Inc. Brake If Fitted): N/A

Light industrial cast iron castor. General use including warehouse trolleys, engineering and furniture.

Also used in oven racks, powder coating trolleys and freezer trolleys.

Related Options..

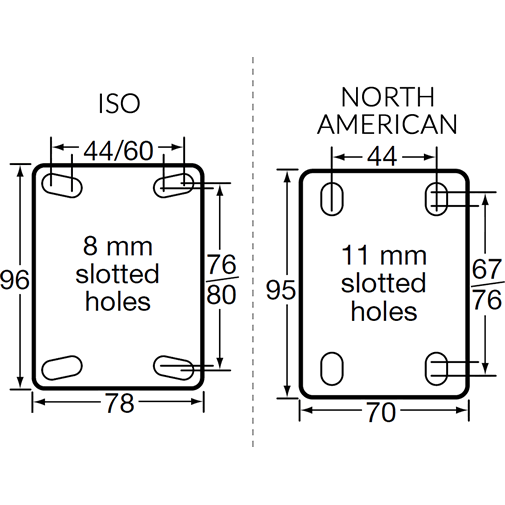

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

  • Castor Type
    Fixed
  • Frame Finish
    Zinc
  • Mounting Type
    Key specification differs from other available variants Mounting Plate
  • Maximum Capacity
    100 kg
  • Wheel Diameter
    75 mm
  • Tread Width
    32 mm
  • Tread Material
    Cast Iron
  • Overall Height
    106 mm
  • Bearing Type
    Plain
  • Axle Type
    Bolted
