Technical Specifications
Swivel
- -Castor Type- Swivel
- -Load Capacity- 350 Kg per castor
- -Brake Type- N/A
- -Mounting Type- Plate
- -Wheel Material- P/U on Nylon
- -Wheel Bearing Type- Roller Bearings
- -Thread guard Fitted?- No
- -Frame Finish- Zinc
- -Wheel Diameter X Tread Width- 125mm x 40mm
- -Overall Height- 162mm
- -Axle Type- Bolted
- -Swivel Radius (inc. brake if fitted)- 109mm
Swivel Total Brake
- -Castor Type- Swivel
- -Load Capacity- 350 Kg
- -Brake Type- Total Brake
- -Mounting Type- Plate
- -Wheel Material- P/U on Nylon
- -Wheel Bearing Type- Roller Bearings
- -Thread guard Fitted?- No
- -Frame Finish- Zinc
- -Wheel Diameter X Tread Width- 125mm x 40mm
- -Overall Height- 162mm
- -Axle Type- Bolted
- -Swivel Radius (inc. brake if fitted)- 140mm
High quality Australian Made castors, will outlast and out perform all economy range castors.

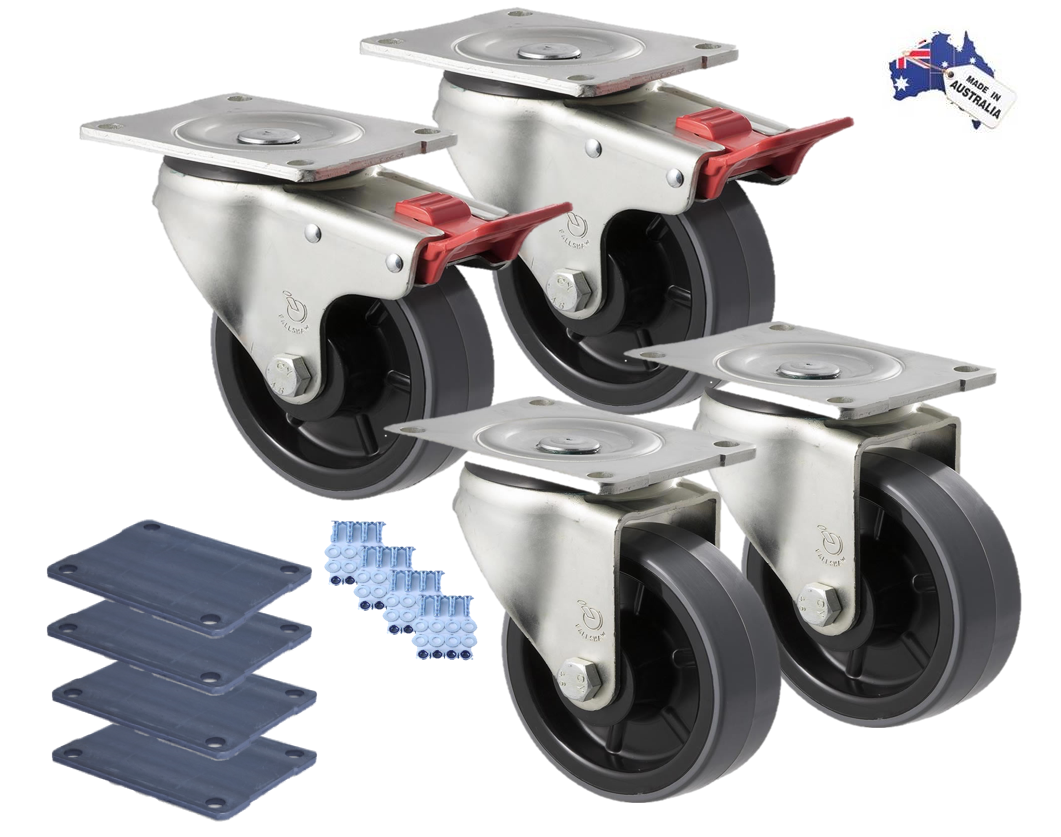

Pack contains 2x swivel, 2x swivel total brake castors, 4x mounting plates, 4x bolt packs to suit.

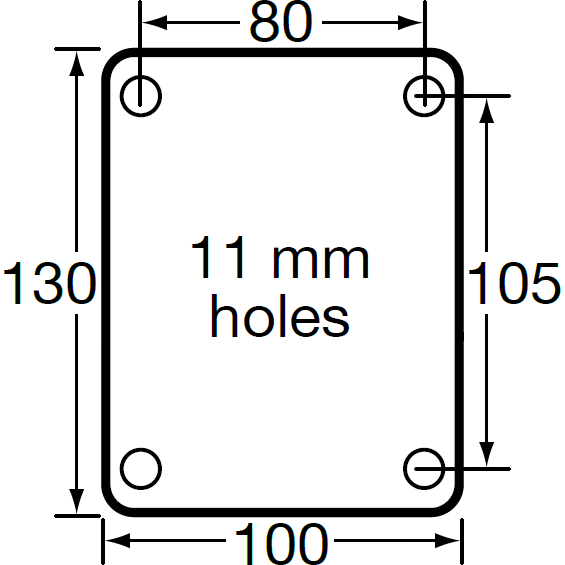

Weld on mounting plates are the best fitting option so the castor can be bolted on and isn't affected by the heat of the weld.
Suitable for all heavy industrial use, high quality polyurethane is most resistant to swarf and metal filings and provides smooth quiet operation whilst protecting floor surfaces.
