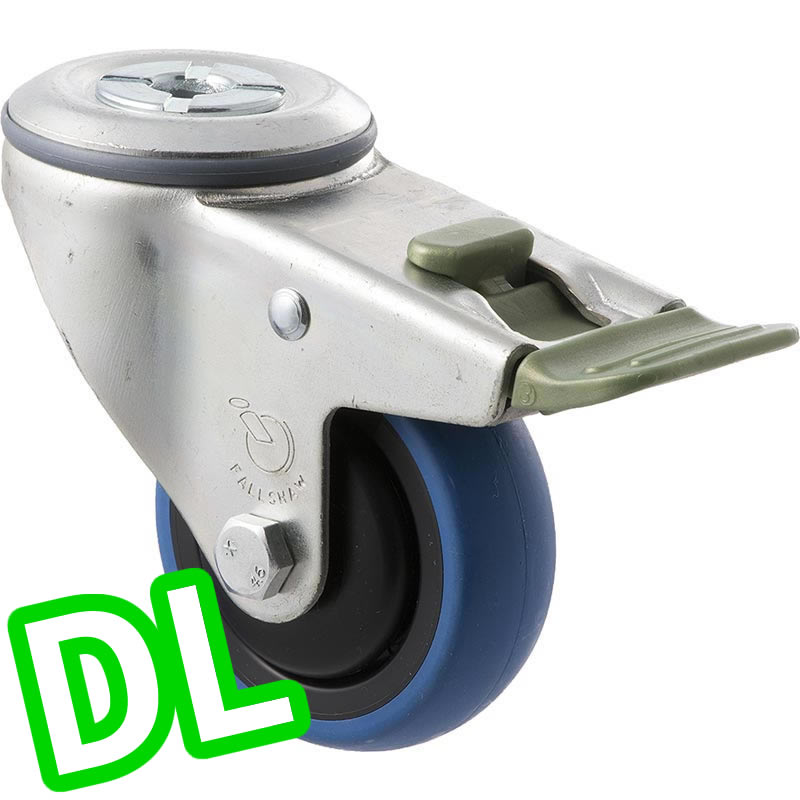

CBQ75G/MZHDL - 85 kg Bolt-Hole Direction Lock Only 75mm Blue Rubber

$46.30 $48.75
GST included.
Shipping calculated at checkout.
Data Sheet PDF Data Sheet PDF Mounting Solutions Mounting Solutions

Order within:

00:00:00 for same day dispatch.

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours
Contact us for discounts on trade and large quantity orders!

Product Description

Technical Specifications

  • Castor Type: Bolt-Hole
  • Load Capacity: 85 kg
  • Brake Type:Direction Only

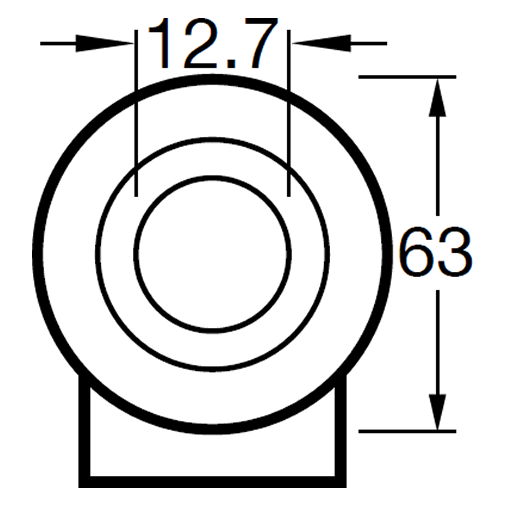

  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: Blue Rubber
  • Wheel Bearing Type: Ball Bearing
  • Thread Guard Fitted?: Yes
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 75mm x 30mm
  • Overall Height: 106mm
  • Axle Type: Bolted
  • Swivel Radius (Inc. Brake If Fitted): 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

Related Options..

  • Maximum Capacity
    85 kg
  • Overall Height
    106 mm
  • Wheel Diameter
    75 mm
  • Tread Width
    30 mm
  • Tread Material
    Blue Rubber
  • Castor Type
    Swivel
  • Mounting Type
    Bolt Hole
  • Bolt Hole Diameter
    12.7 mm
  • Frame Finish
    Zinc
  • Bearing Type
    Ball Bearing
  • Axle Type
    Bolted
