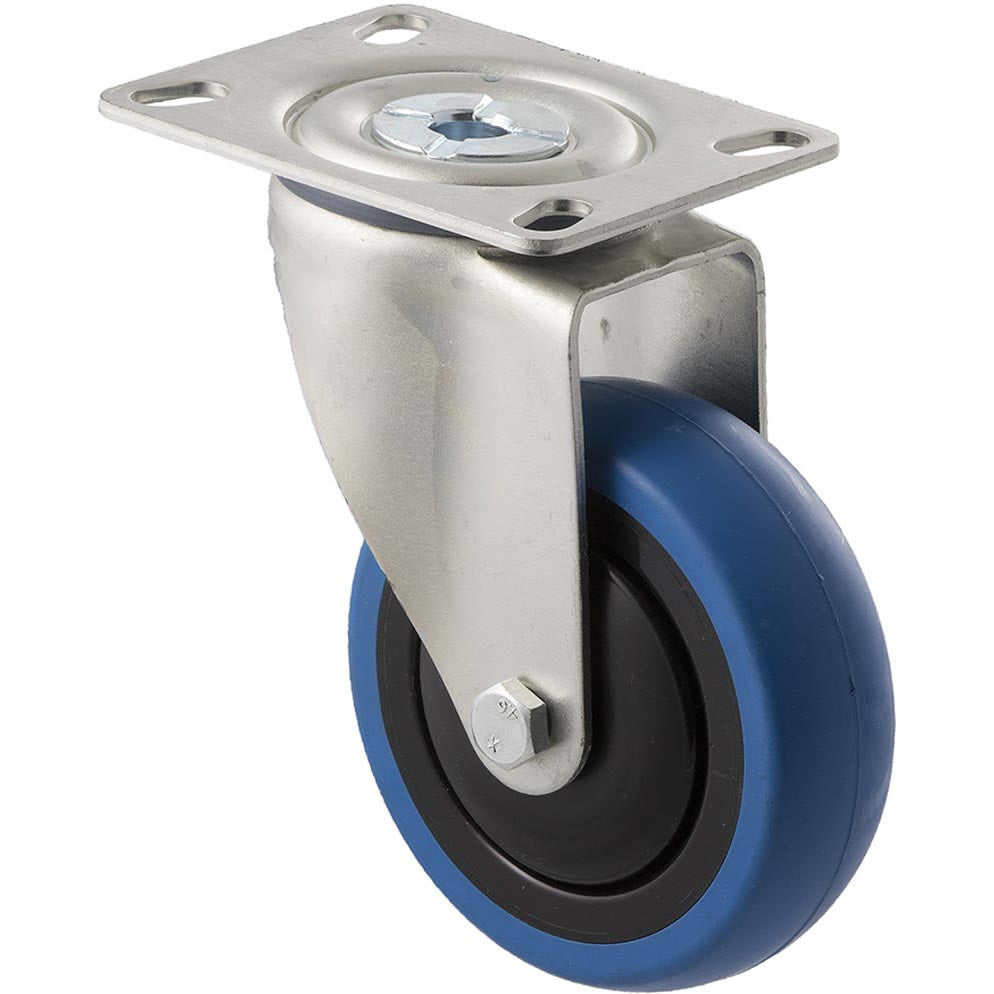

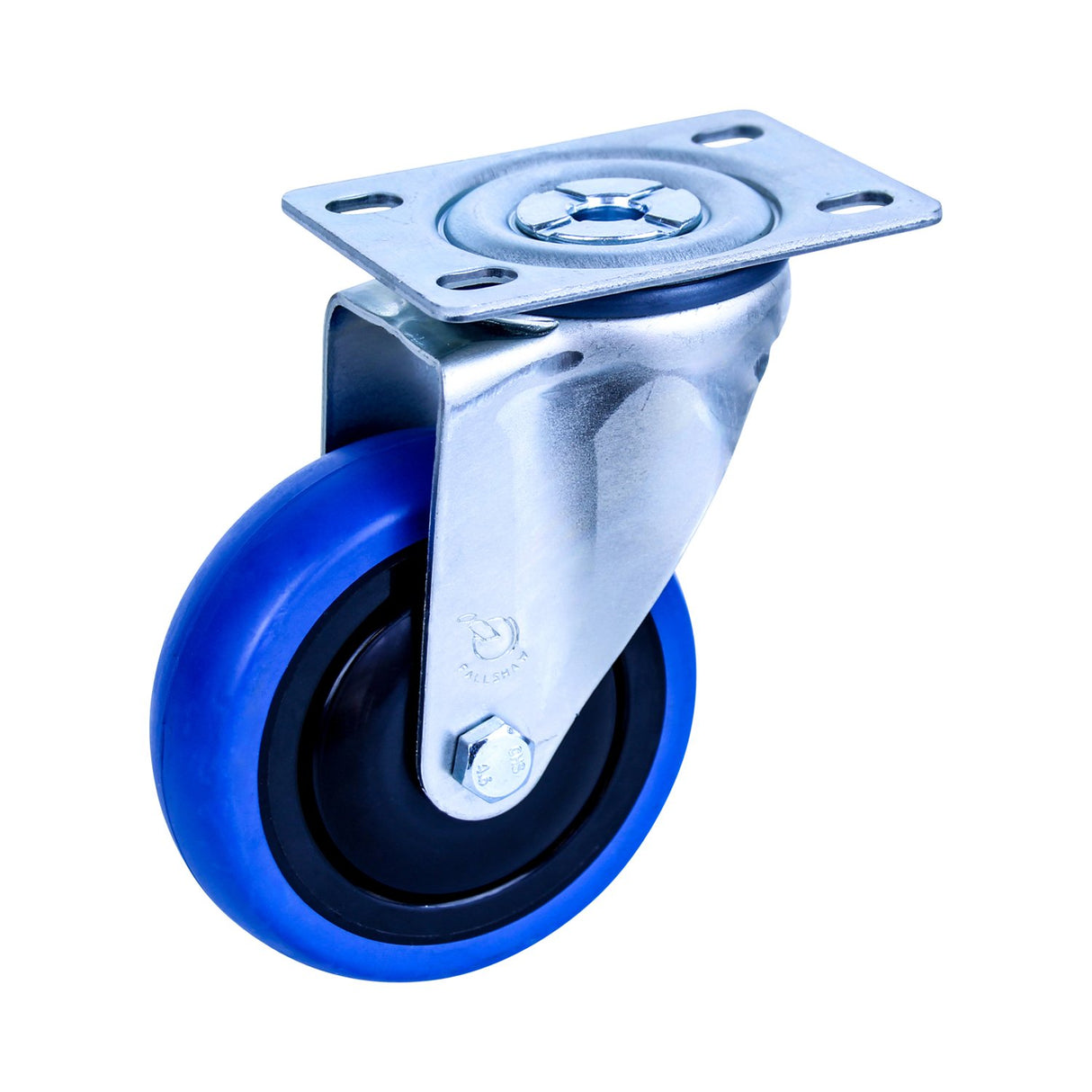

CBQ100G/MZP 100 Kg Swivel Plate 100mm Blue Rubber

Description

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 100 Kg
  • -Brake Type- N/A
  • -Mounting Type- Plate
  • -Wheel Material- Blue Rubber
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- Yes
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 30mm
  • -Overall Height- 135mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 91mm

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

Related Options..

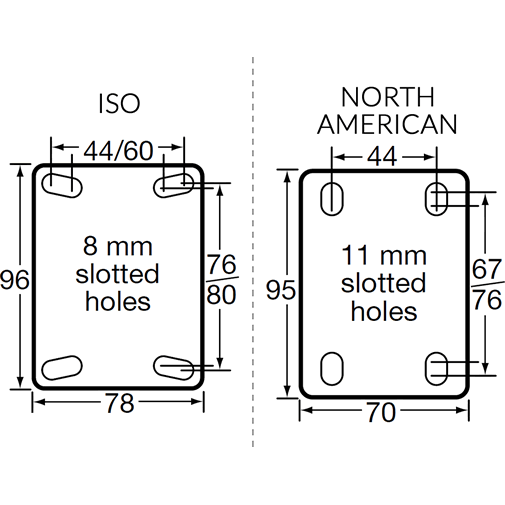

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

Top Plate Option
$38.85 (Incl. GST)

Make an enquiry about this product: CBQ100G/MZP 100 Kg Swivel Plate 100mm Blue Rubber
