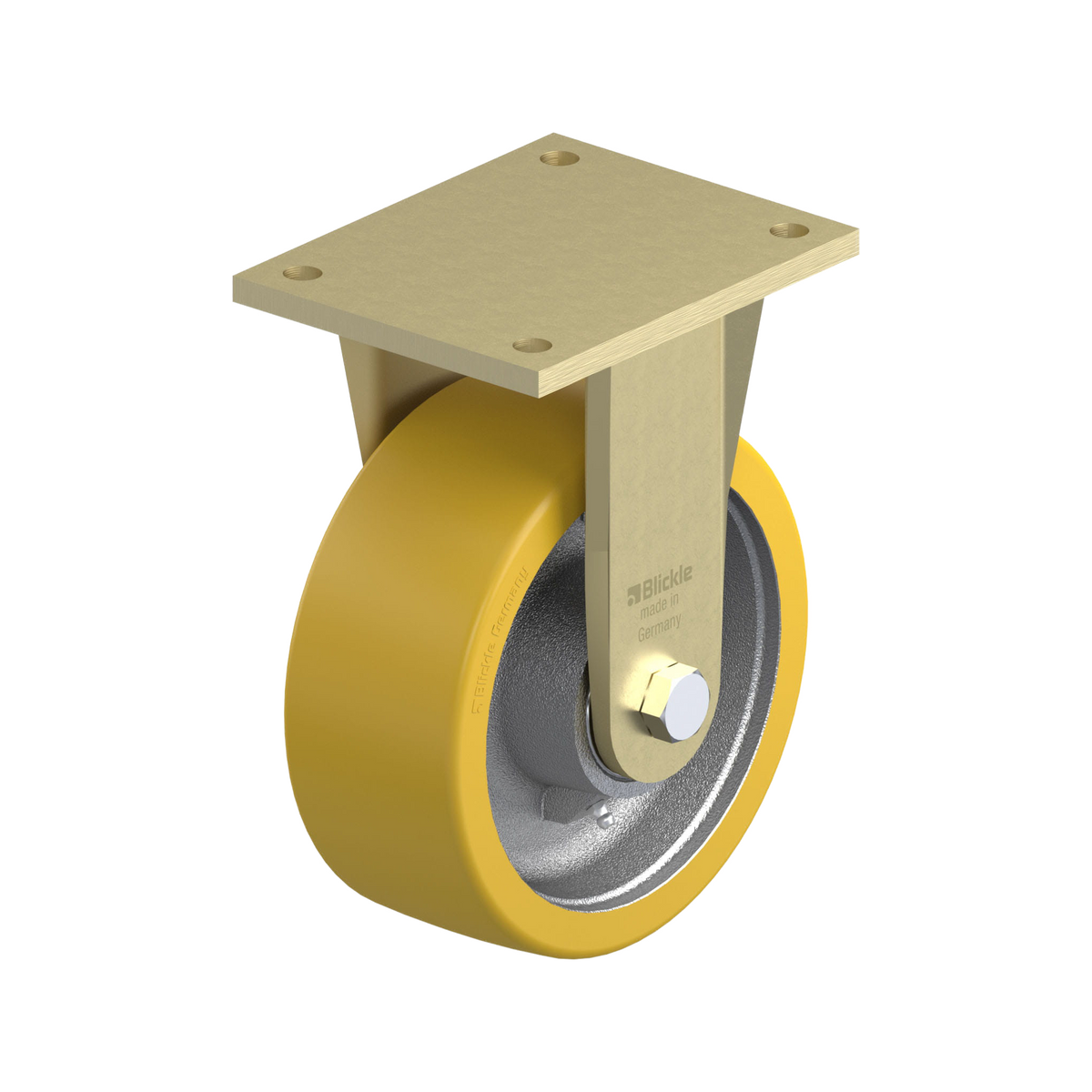

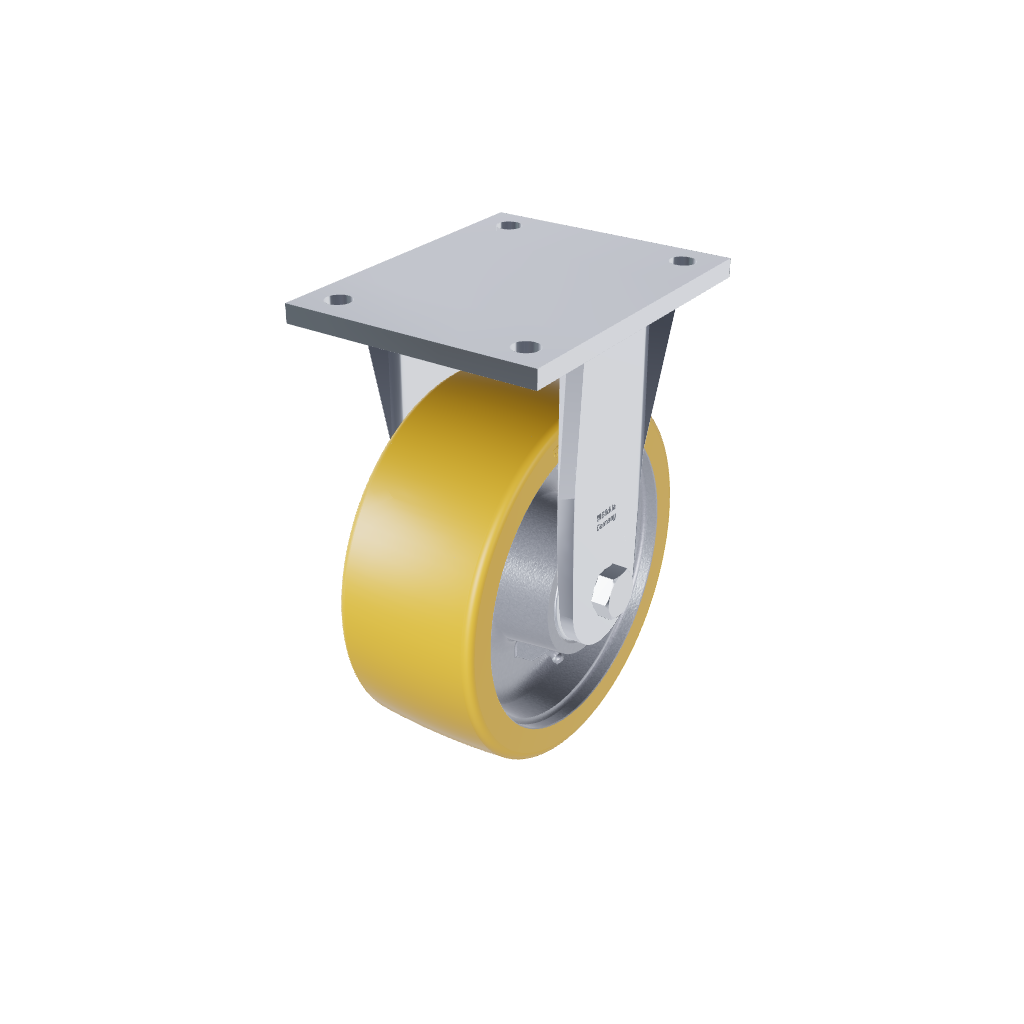

Blickle GTH Ultra Heavy Duty 200mm Fixed Polyurethane Castor
Shipping calculated at checkout.
BS-GTH 202K is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
BS-GTH 202K is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.

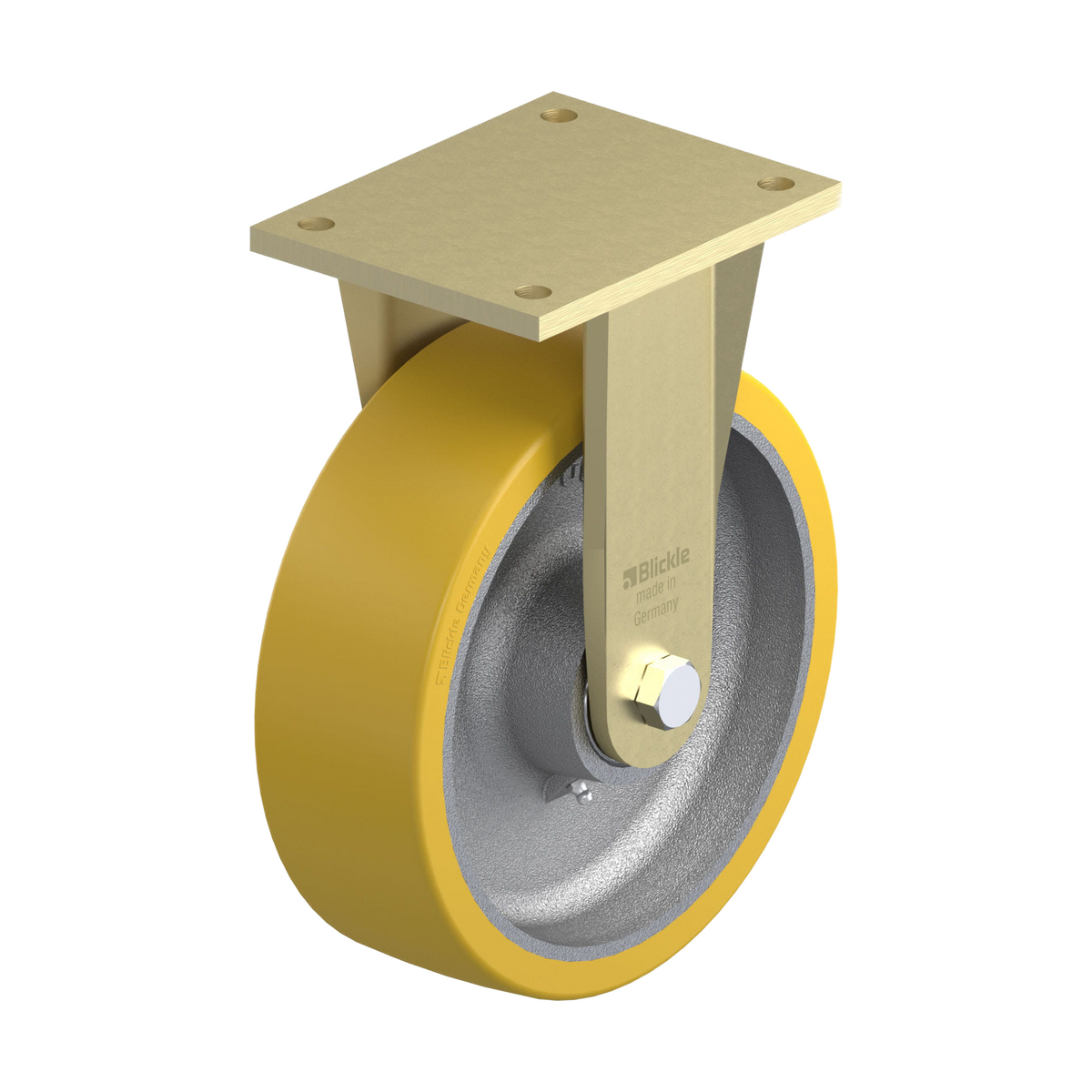

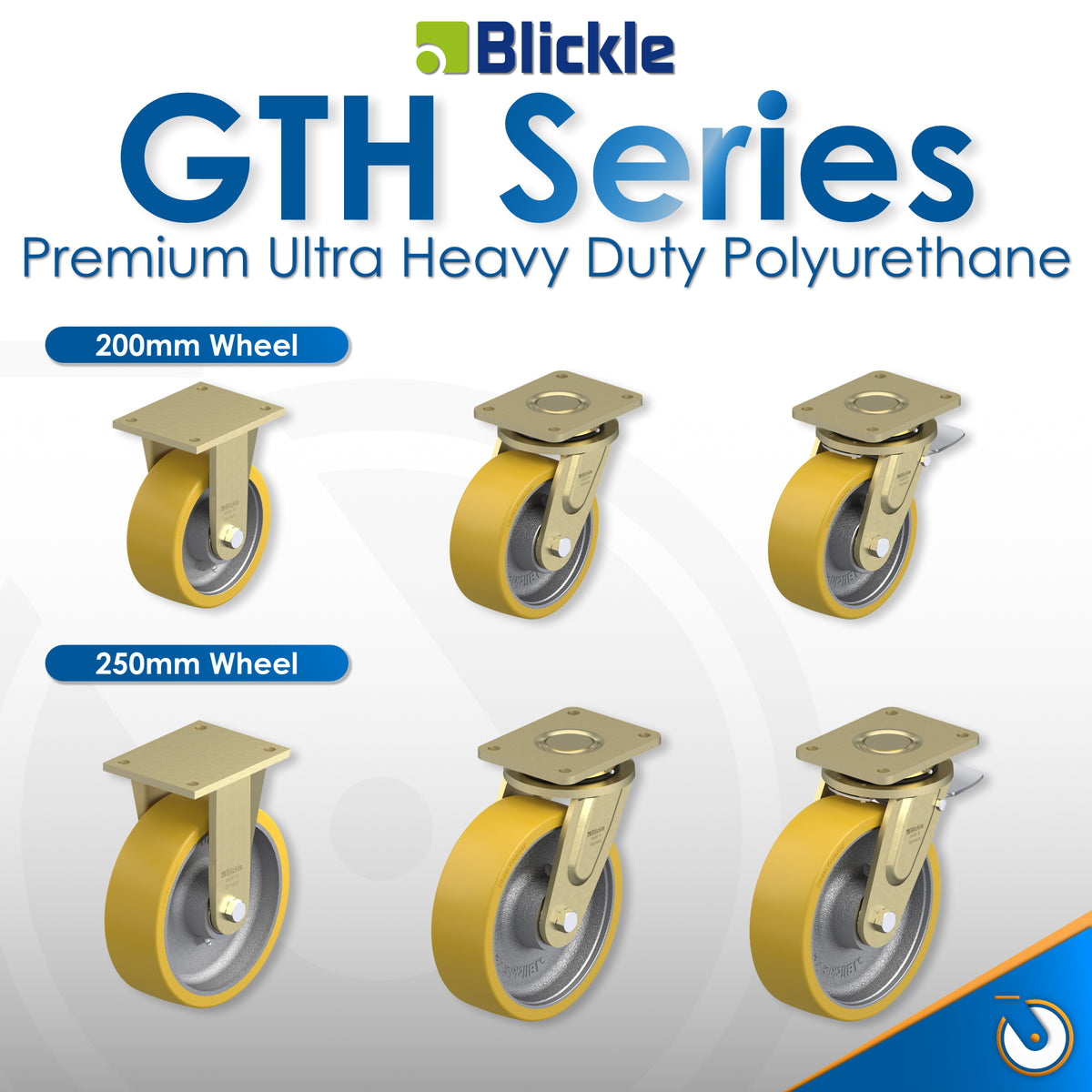

Blickle GTH Polyurethane Ultra Heavy Duty Castor Series
Shipping calculated at checkout.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Underlined specification values indicate differences between product options.
Please confirm all specifications before ordering.
- SKU BS-GTH 202K
-
Castor TypeFixed
-
Capacity1,600 kg
-
Static Capacity4,000 kg
-
Overall Height255 mm
-
Lift Height+0 mm
- Wheel
-
Wheel DiameterØ200 mm
-
Tread Width80 mm
-
Wheel MaterialCast Iron
-
Tread MaterialPolyurethane
-
Hardness92 Shore A
-
Temperature Range-20 to 70 °C
-
Non-Marking
- Frame
-
Frame FinishCr6-Free Zinc Plated
-
Mounting TypePlate
-
Plate Dimensions (L x W)175 x 140 mm
-
Plate Hole Centres (L x W)140 x 105 mm
-
Bolt Hole Hardware SizeM12
-
Bolt Hole DiameterØ14 mm
-
Axle TypeBolted
-
- Bearing & Bore
-
TypeBall Bearing
-
Seal TypeShielded
-
Bore TolerancePrecision
The Blickle GTH ultra heavy duty series is a premium German made polyurethane castor designed for equipment that needs to carry extreme loads, remain manoeuvrable under load and withstand severe industrial use.
The Blickle Extrathane® polyurethane tread has a hardness of 92 Shore A, providing very good rolling resistance with excellent abrasion, cut and tear resistance. The non-marking tread provides good floor protection and is highly resistant to many aggressive substances, combining long service life with better running comfort than solid nylon or metal wheels.
The Extrathane® tread is cast directly onto a cast iron wheel centre, while ball bearings provide smooth and consistent rotation under extreme loads. An integrated grease nipple allows the wheel to be serviced, helping maintain reliable movement and extend working life in demanding industrial environments.

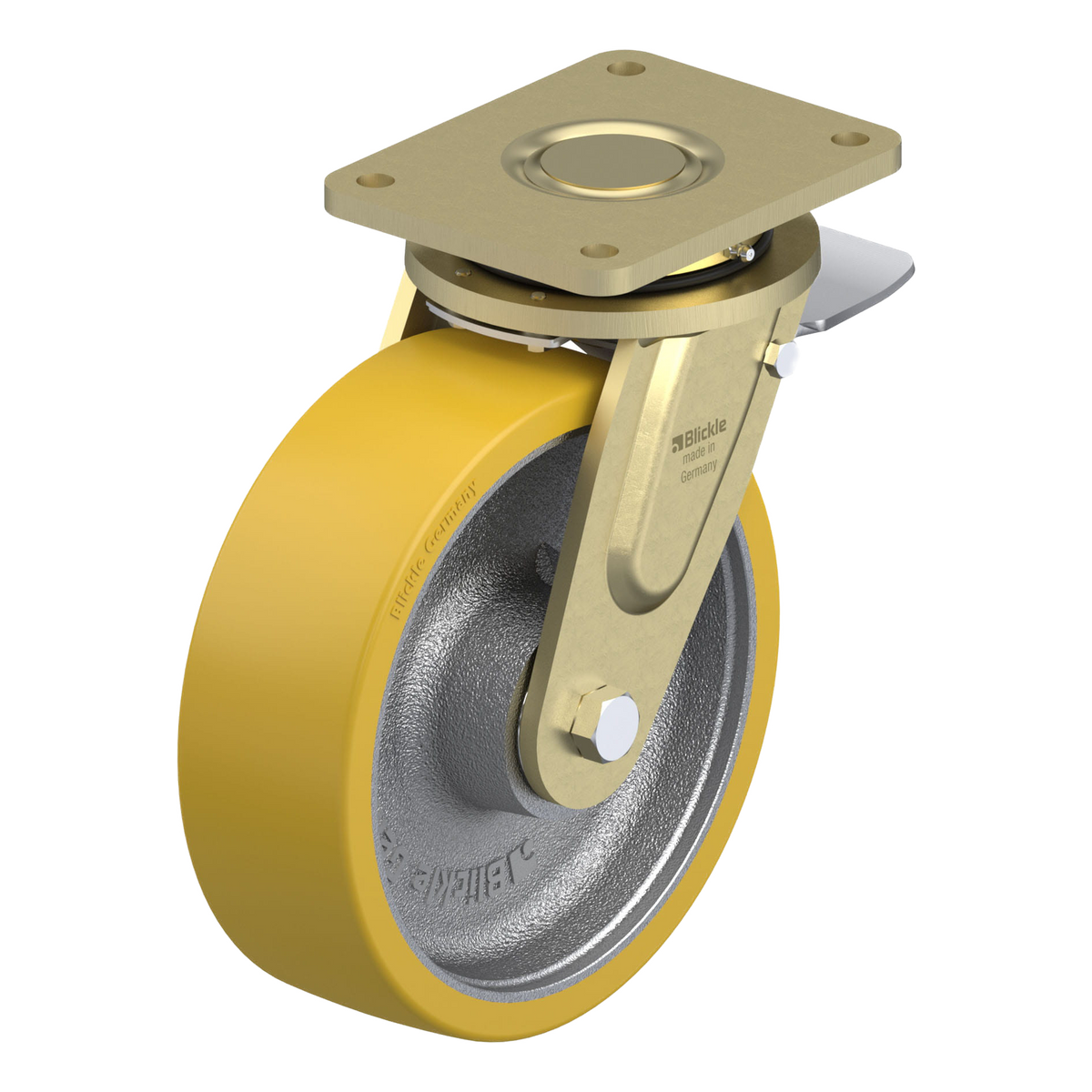

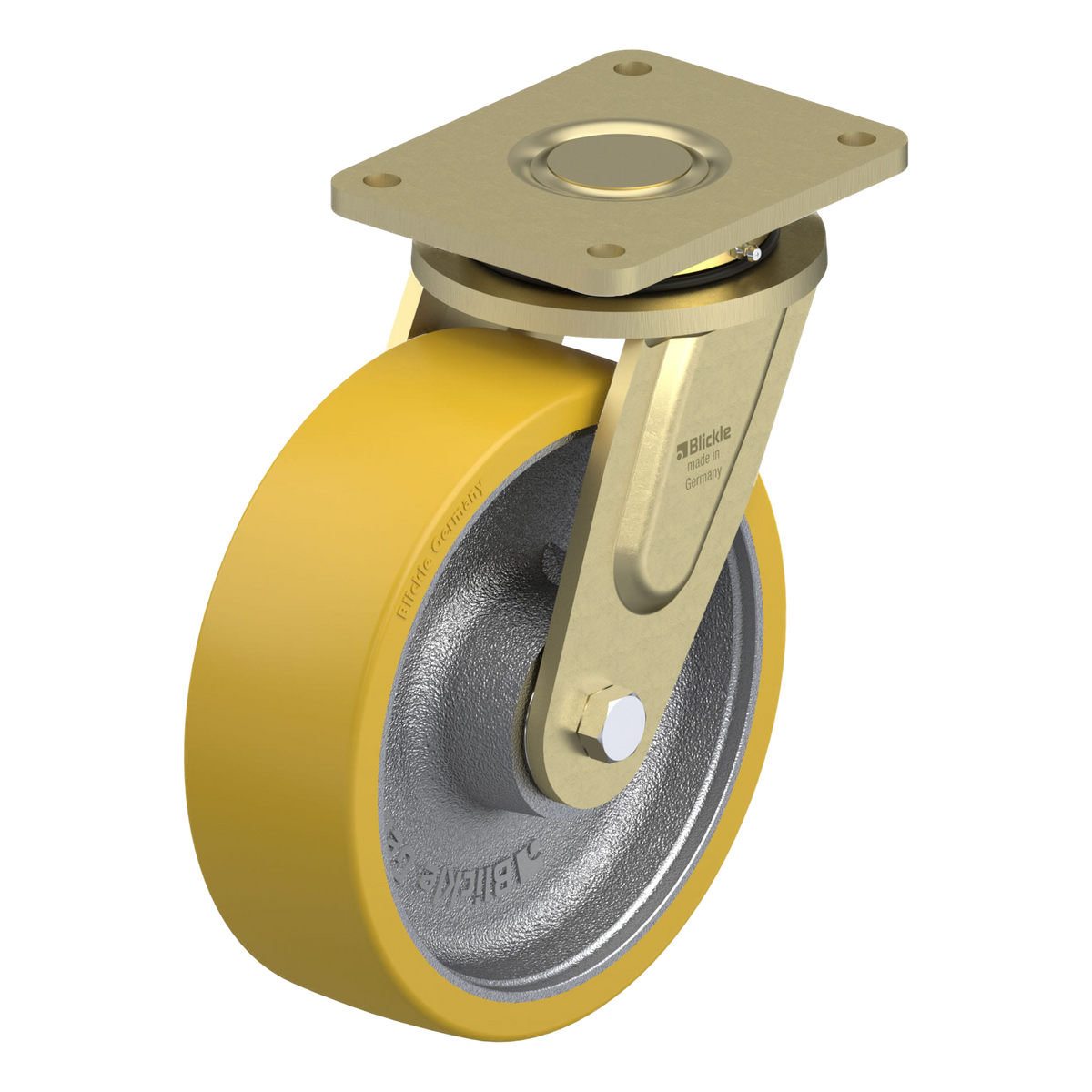

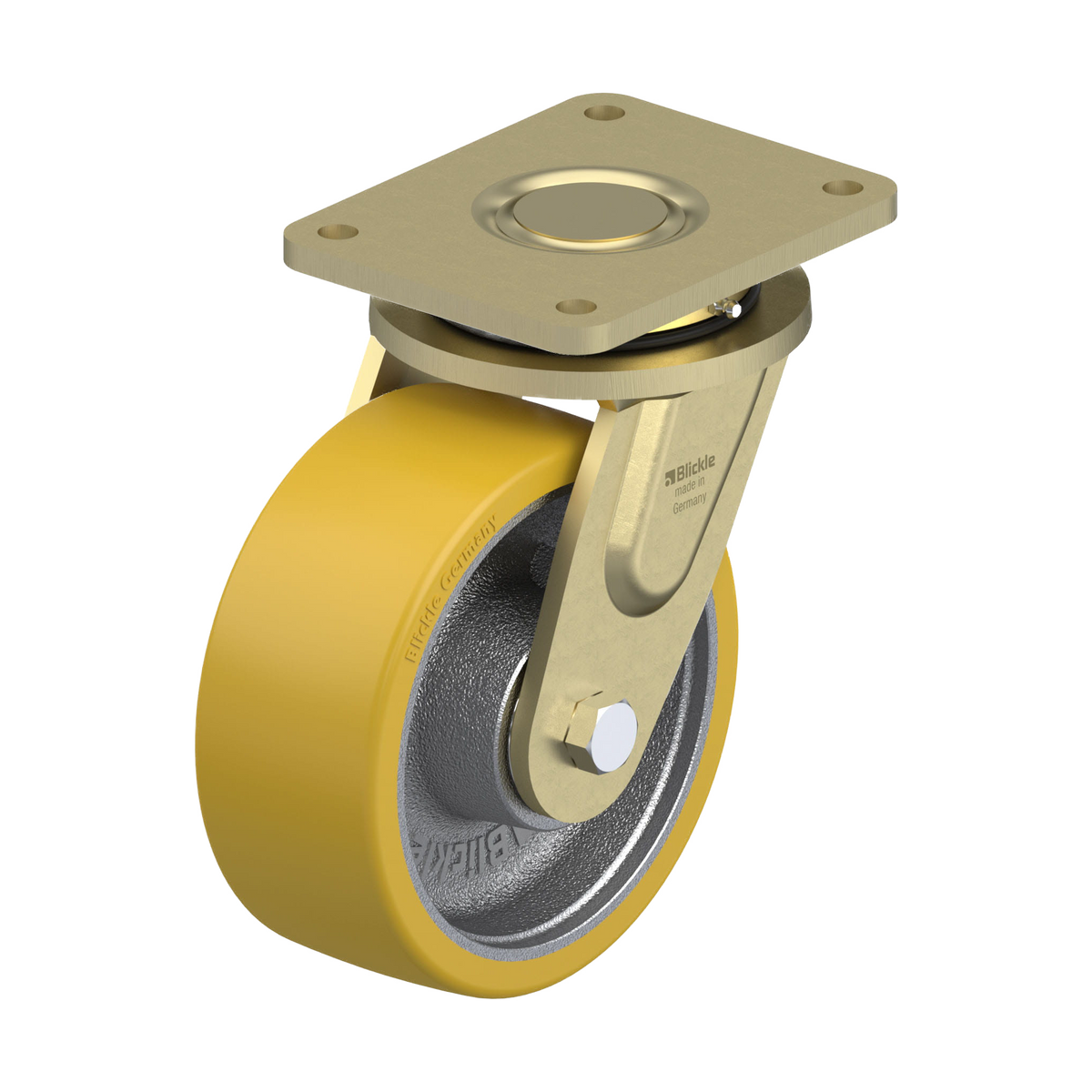

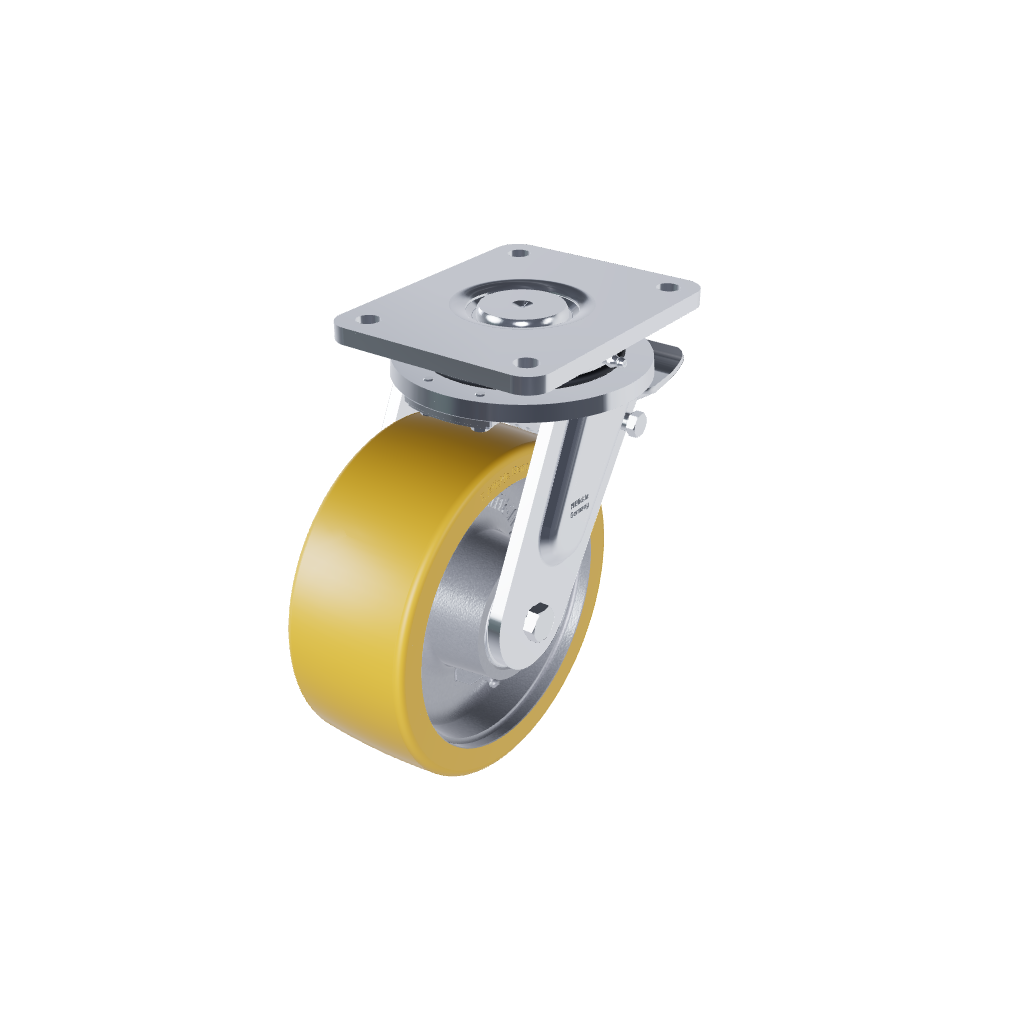

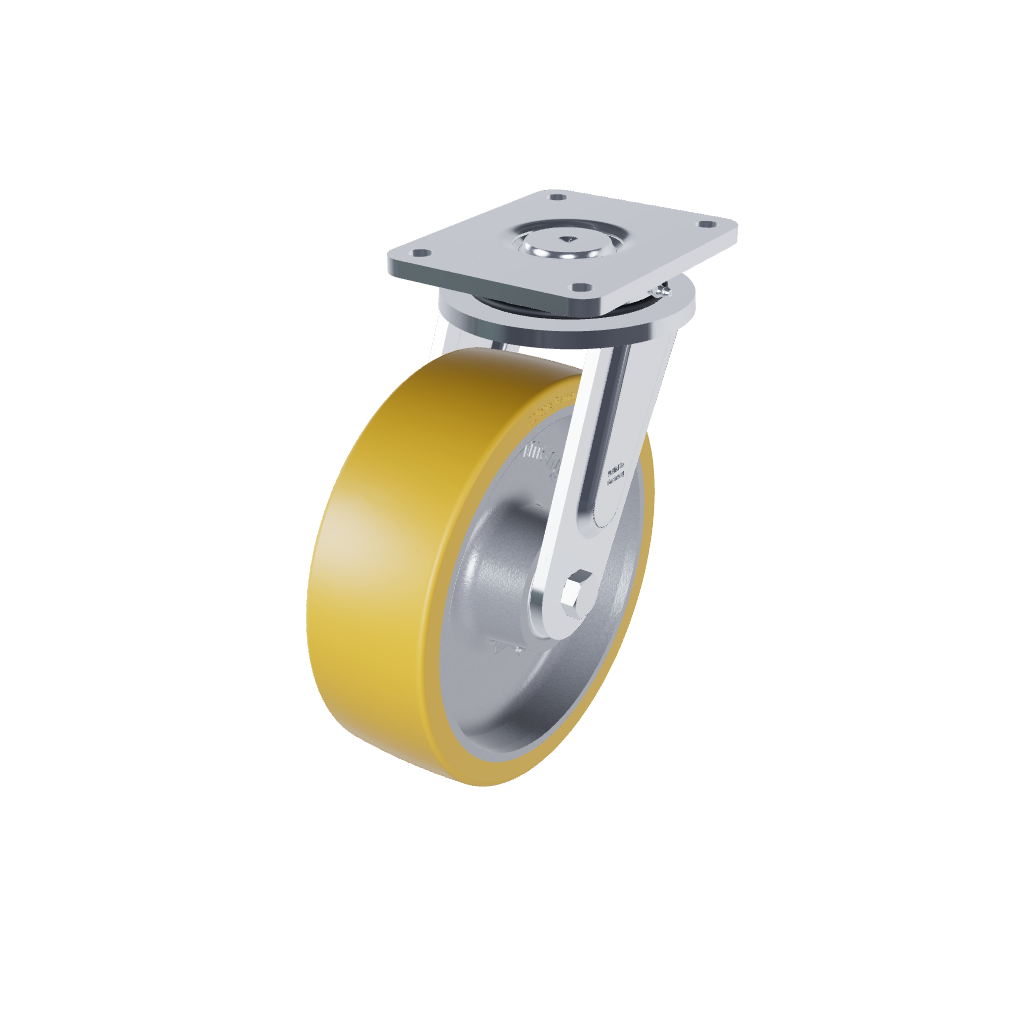

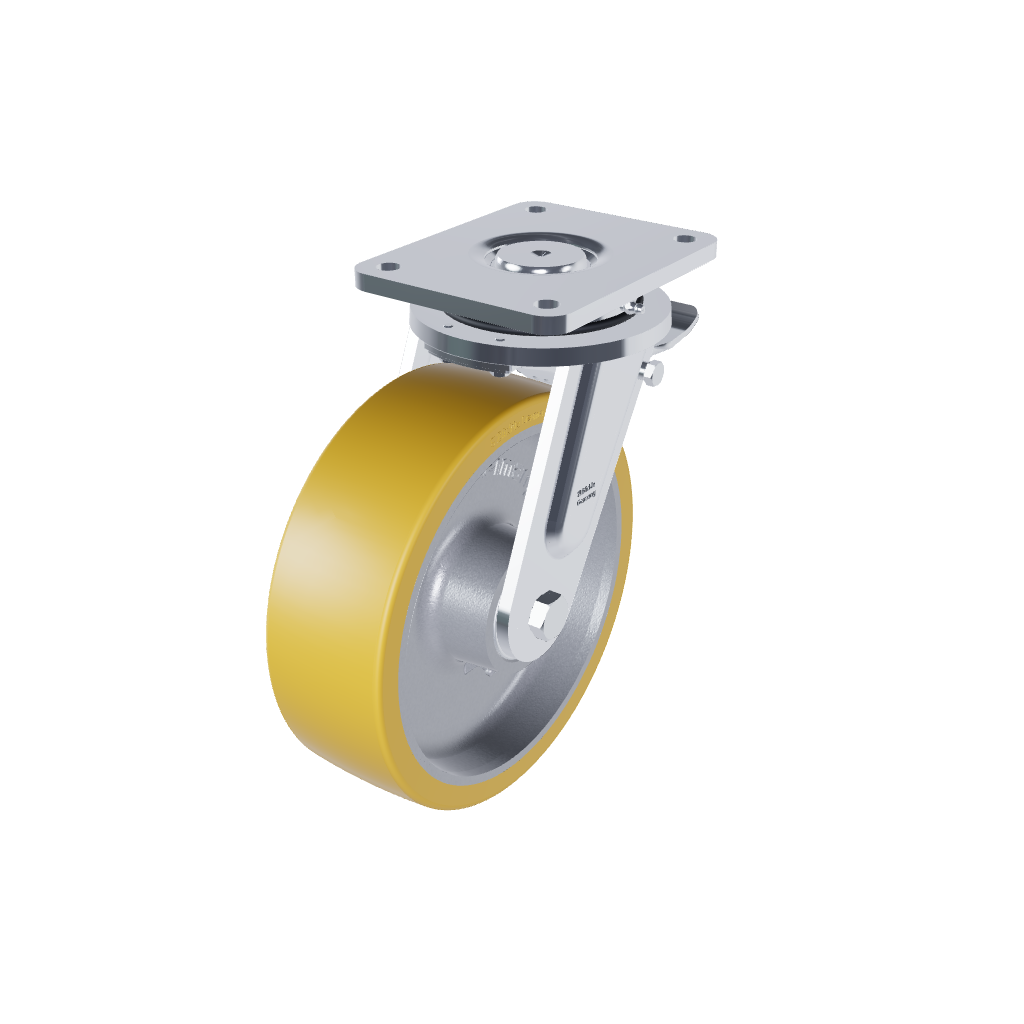

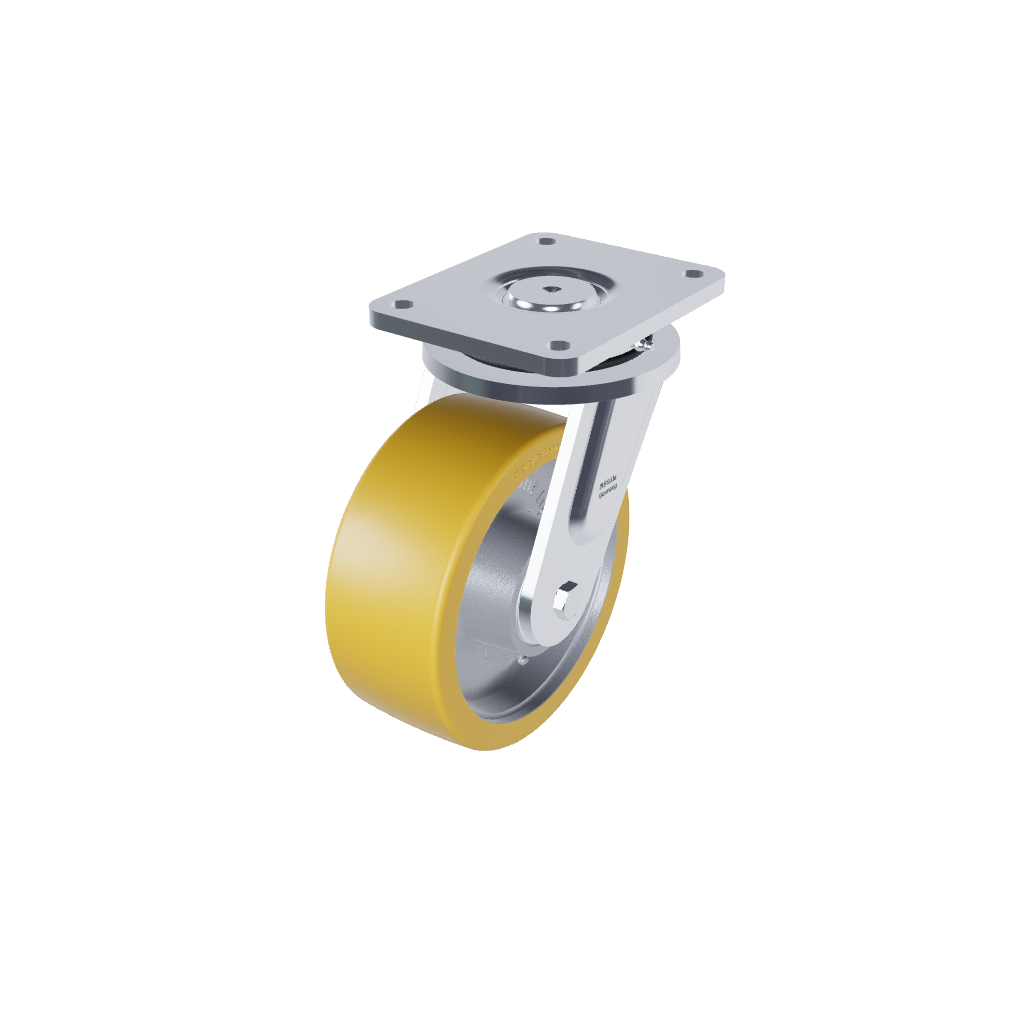

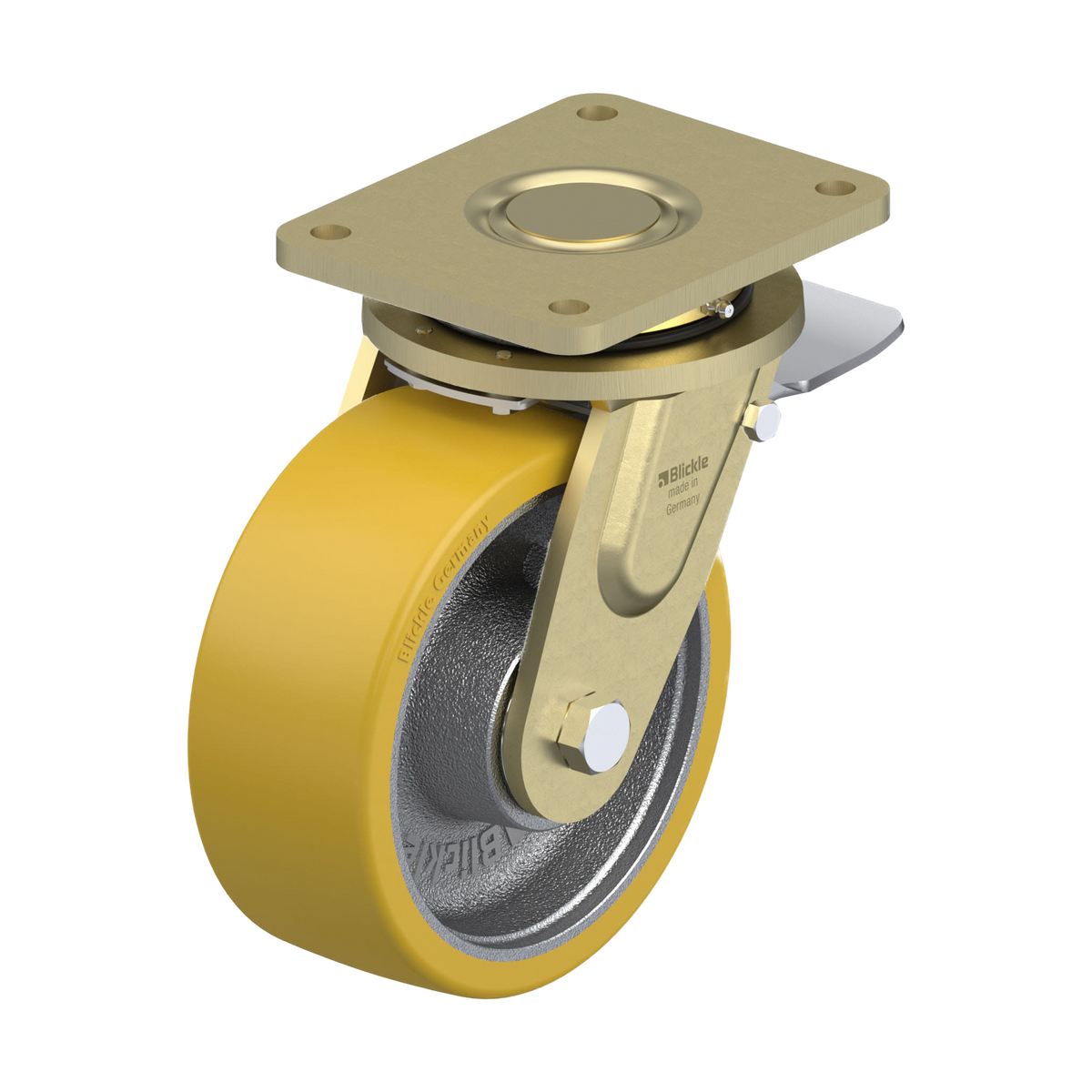

Blickle engineers, manufactures, and tests its castors in Germany under exceptionally tight production tolerances. The ultra heavy duty frames use a particularly robust welded steel construction. Swivel variants combine an axial grooved ball bearing and tapered roller bearing in the swivel head with an extremely strong secured welded central kingpin. The assembly is dust and splash protected, while an integrated grease nipple allows routine servicing of the swivel mechanism.
The GTH ultra heavy duty castor series is tested in accordance with DIN EN 12532 and ISO 22883, with load capacities determined under the applicable transport equipment and heavy duty castor test conditions. Blickle's manufacturing systems are certified to DIN EN ISO 9001, ISO 14001, ISO 45001 and ISO 50001.
The GTH ultra heavy duty series is best suited to applications where extreme capacity, dependable manoeuvrability, excellent wear resistance and improved floor protection are required from a polyurethane castor. For heavy machinery, manufacturing equipment and industrial transport systems, it is our premium ultra heavy duty polyurethane castor choice.
