820V 190 kg 80mm V Groove

$35.35
GST included.
Shipping calculated at checkout.

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours

Call us on (03) 9792 3949 for discounts on trade and quantity orders!

Submit an enquiry

Product Description

Technical Specifications.

  • Groove Type: V Groove
  • Load Capacity: 190 kg
  • Wheel Diameter: 80mm
  • Wheel Material: Steel
  • Finish: Zinc Plated
  • Tyre Material: Steel
  • Tread Width: 20mm
  • Groove Width: 14mm
  • Groove Depth: 7mm
  • Hub Length (Unsleeved): 12mm
  • Hub Length (Sleeved): 24mm
  • Bore Diameter (Unsleeved): 17mm
  • Sleeved Bore Diameter Options: 12mm
  • Sleeve Type: Top Hat Pair
  • Bearing Type: Ball Bearing
  • Axle Bolt/Nut Supplied: ? M12 x 50mm & Nut

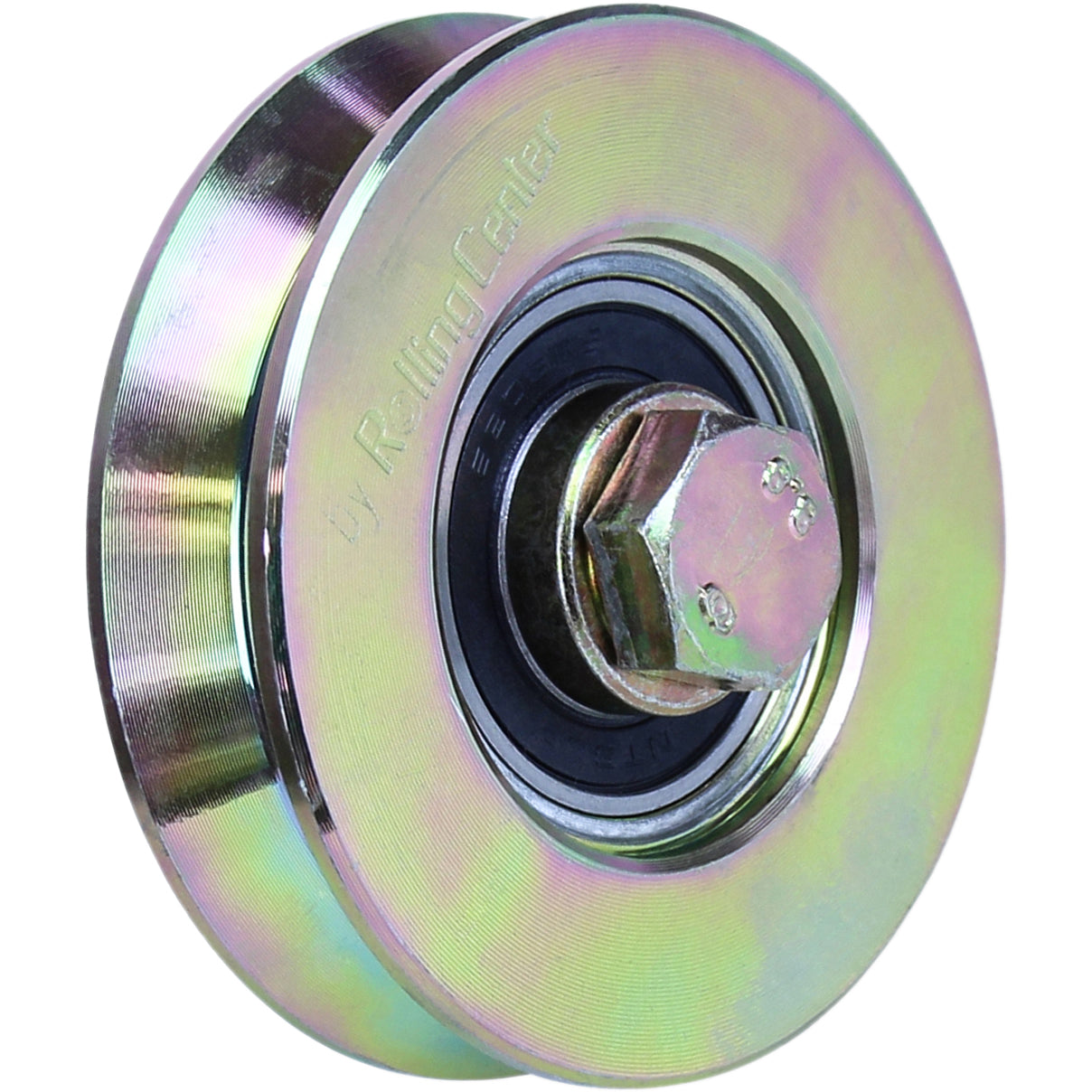

Machined steel "V" groove wheel, for use with folded angle tracks.

  • Maximum Capacity
    190 kg
  • Wheel Diameter
    80 mm
  • Tread Material
    Steel
  • Tread/Wheel Width
    20 mm
  • Bearing Type
    Ball Bearing
  • Sleeve/Bush Type
    Top Hat Pair
  • Sleeved Bore Diameter
    12 mm
  • Unsleeved Bore Diameter
    17
  • Sleeved Hub Length
    24 mm
  • Unsleeved Hub Length
    12 mm
  • Product Range
    Sliding Gate Wheels
