613 100 kg 60mm 6mm Round Groove

$27.55
GST included.
Shipping calculated at checkout.

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours

Call us on (03) 9792 3949 for discounts on trade and quantity orders!

Submit an enquiry

Product Description

Technical Specifications.

  • Groove Type: 6mm Round Groove
  • Load Capacity: 100 kg
  • Wheel Diameter: 60mm
  • Wheel Material: Steel
  • Finish: Zinc Plated
  • Tyre Material: Steel
  • Tread Width: 13mm
  • Groove Width: 6mm
  • Groove Depth: 7mm
  • Hub Length (Unsleeved): 12mm
  • Hub Length (Sleeved): 17mm
  • Bore Diameter (Unsleeved): 17mm
  • Sleeved Bore Diameter Options: 12mm
  • Sleeve Type: Top Hat Pair (Included)
  • Bearing Type: Ball Bearing
  • Axle Bolt/Nut Supplied: ? No

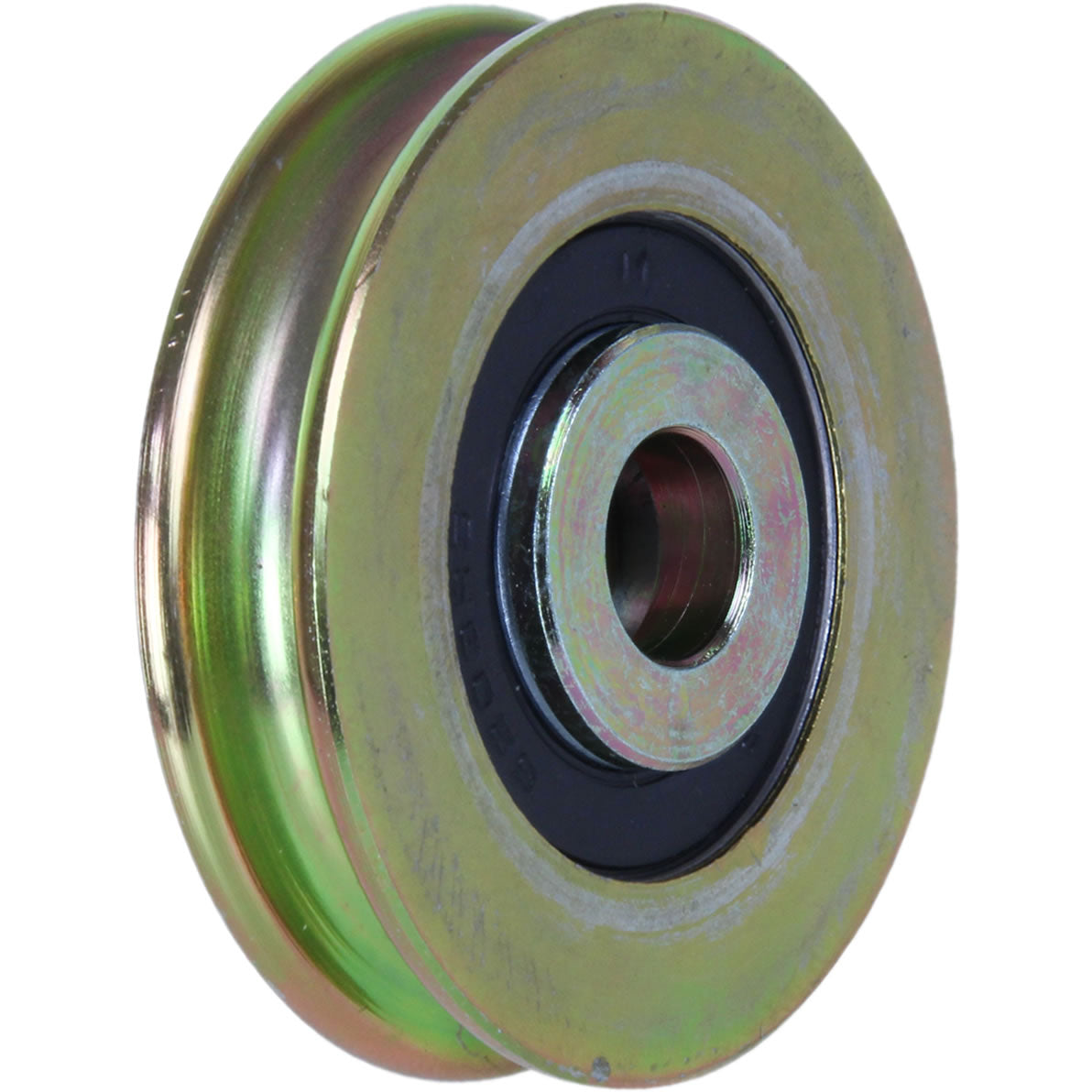

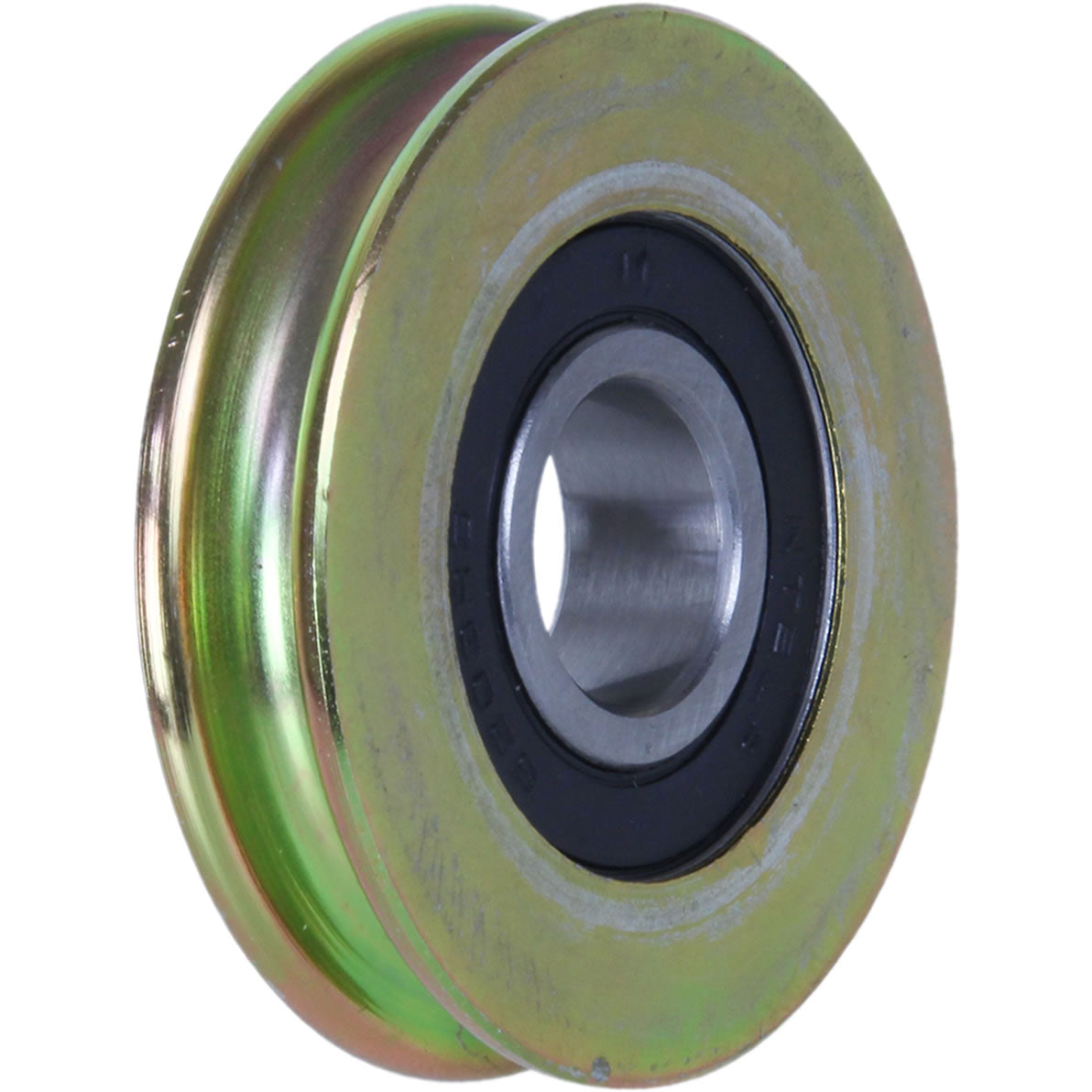

Machined steel rope groove pulley, suits 6mm wire rope.

  • Maximum Capacity
    100 kg
  • Wheel Diameter
    60 mm
  • Tread Material
    Steel
  • Tread/Wheel Width
    13 mm
  • Bearing Type
    Ball Bearing
  • Sleeve/Bush Type
    Top Hat Pair (Included)
  • Sleeved Bore Diameter
    12 mm
  • Unsleeved Bore Diameter
    17
  • Sleeved Hub Length
    17 mm
  • Unsleeved Hub Length
    12 mm
  • Product Range
    Grooved Wheels

Enquire about the 613 100 kg 60mm 6mm Round Groove
