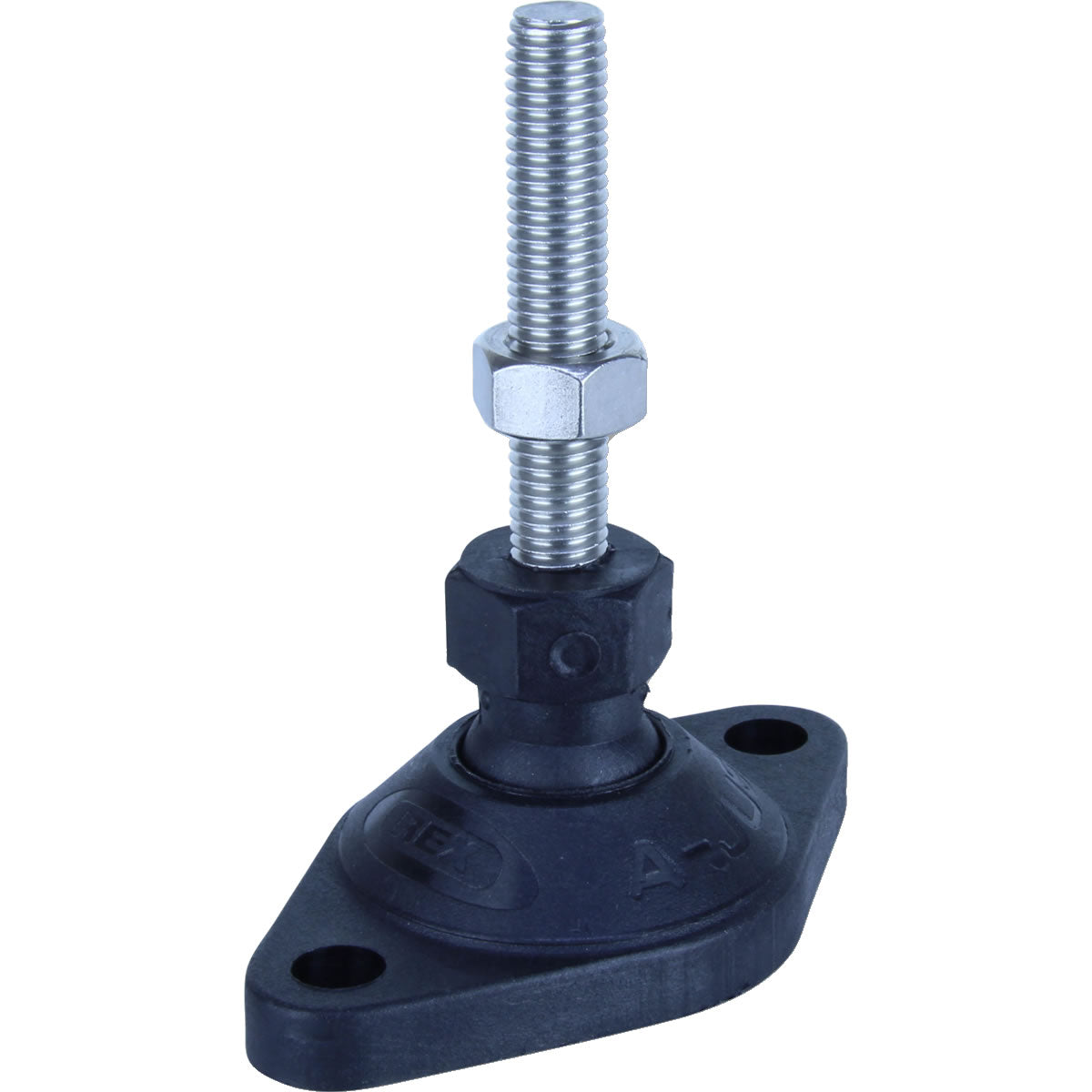

31/60/M12/65 800 Kg 60mm x M12 Stainless Steel Levelling Feet

Technical Specifications

• -Material- Ball Jointed Bolt-Down Stainless Steel
• -Size- 60mm x M12
• -Base Diameter- 60mm
• -Thread Length- 65mm
• -Base+Knuckle Height- 51mm
• -Base Only Height- 23mm
• -Thread Size- M12
• -Thread Type- Stainless Steel
• -Pivot Angle- 40 Deg
• -Load Rating - Vertical- 800 Kg
• -Bolt Down Hole Centres- 80mm
• -Bolt Down Hole Diameter- 11mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are 304 stainless steel.
