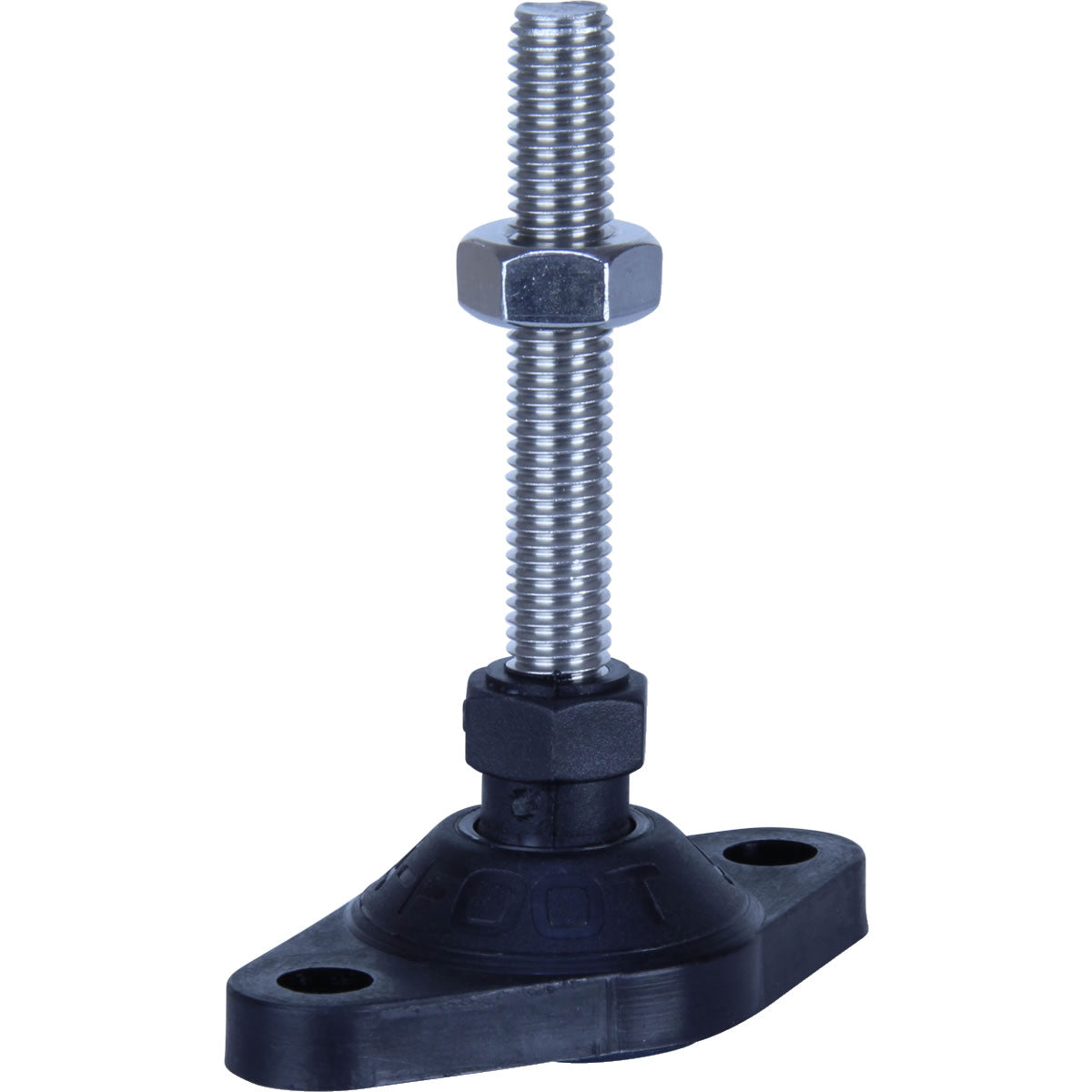

31/40/M10/60 - 500 kg 40mm x M10 Stainless Steel Levelling Feet
Regular price
$16.50
Unit price
GST included.
Shipping calculated at checkout.
Shipping calculated at checkout.
Data Sheet PDF
31/40/M10/60 - 500 kg 40mm x M10 Stainless Steel Levelling Feet is backordered and will ship as soon as it is back in stock.
Notify me when this is back in stock
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Contact us
for discounts on trade and large quantity orders!
31/40/M10/60 - 500 kg 40mm x M10 Stainless Steel Levelling Feet is backordered and will ship as soon as it is back in stock.
Product Description
Technical Specifications
- Material: Ball Jointed Bolt-Down Stainless Steel
- Size: 40mm x M10
- Base Diameter: 40mm
- Thread Length: 60mm
- Base+knuckle Height: 33mm
- Base Only Height: 20mm
- Thread Size: M10
- Thread Type: Stainless Steel
- Pivot Angle: 40 Deg
- Load Rating - Vertical: 500 Kg
- Bolt Down Hole Centres: 60mm
- Bolt Down Hole Diameter: 9mm
Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are 304 stainless steel.
-
Maximum Capacitykg
