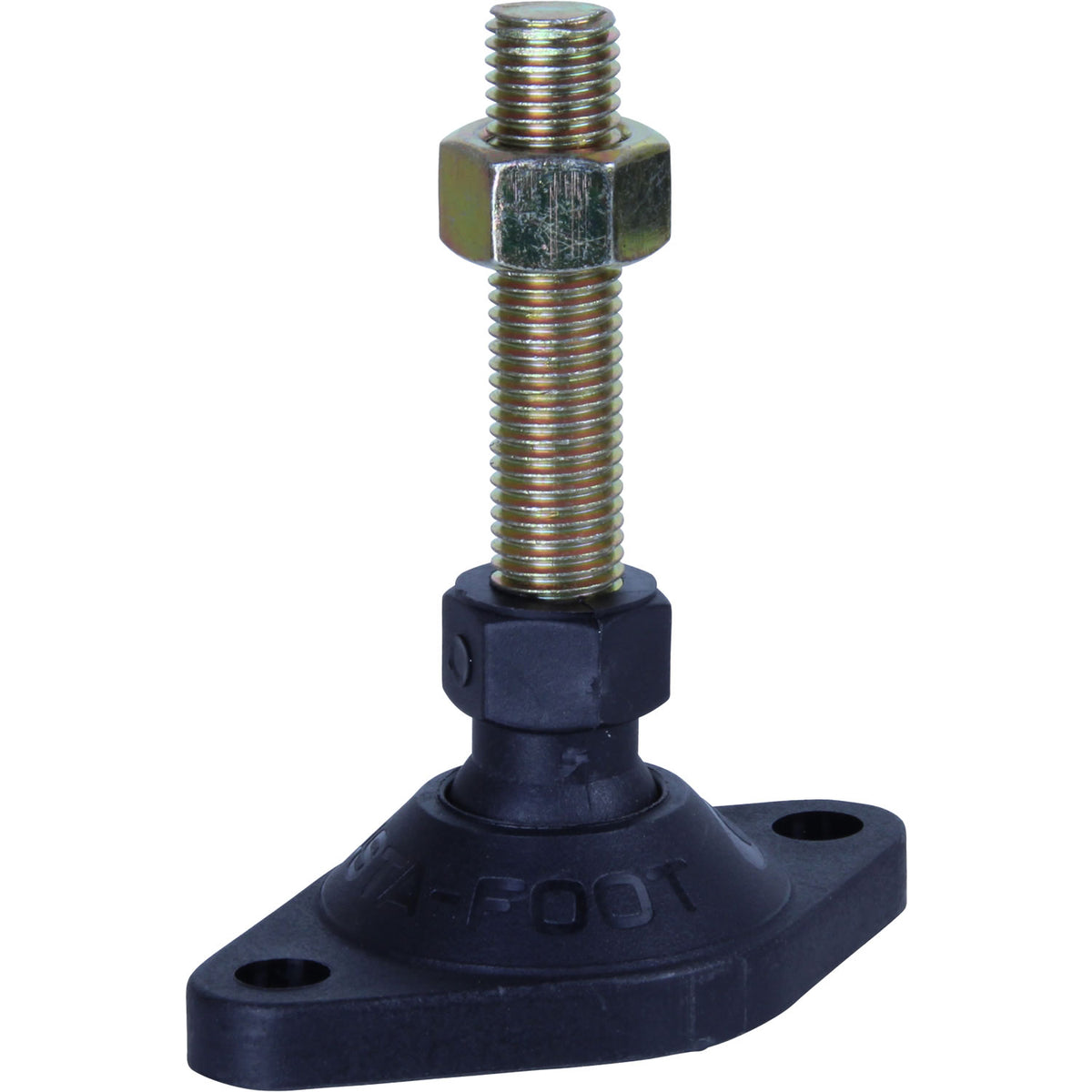

30/60/M16/65 1000 Kg 60mm x M16 Zinc Plated Levelling Feet

Description

Technical Specifications

  • -Material- Ball Jointed Bolt-Down Mild Steel
  • -Size- 60mm x M16
  • -Base Diameter- 60mm
  • -Thread Length- 65mm
  • -Base+Knuckle Height- 51mm
  • -Base Only Height- 23mm
  • -Thread Size- M16
  • -Thread Type- Zinc Plated
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 1000 Kg
  • -Bolt Down Hole Centres- 80mm
  • -Bolt Down Hole Diameter- 11mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

$20.45 (Incl. GST)

Make an enquiry about this product: 30/60/M16/65 1000 Kg 60mm x M16 Zinc Plated Levelling Feet
