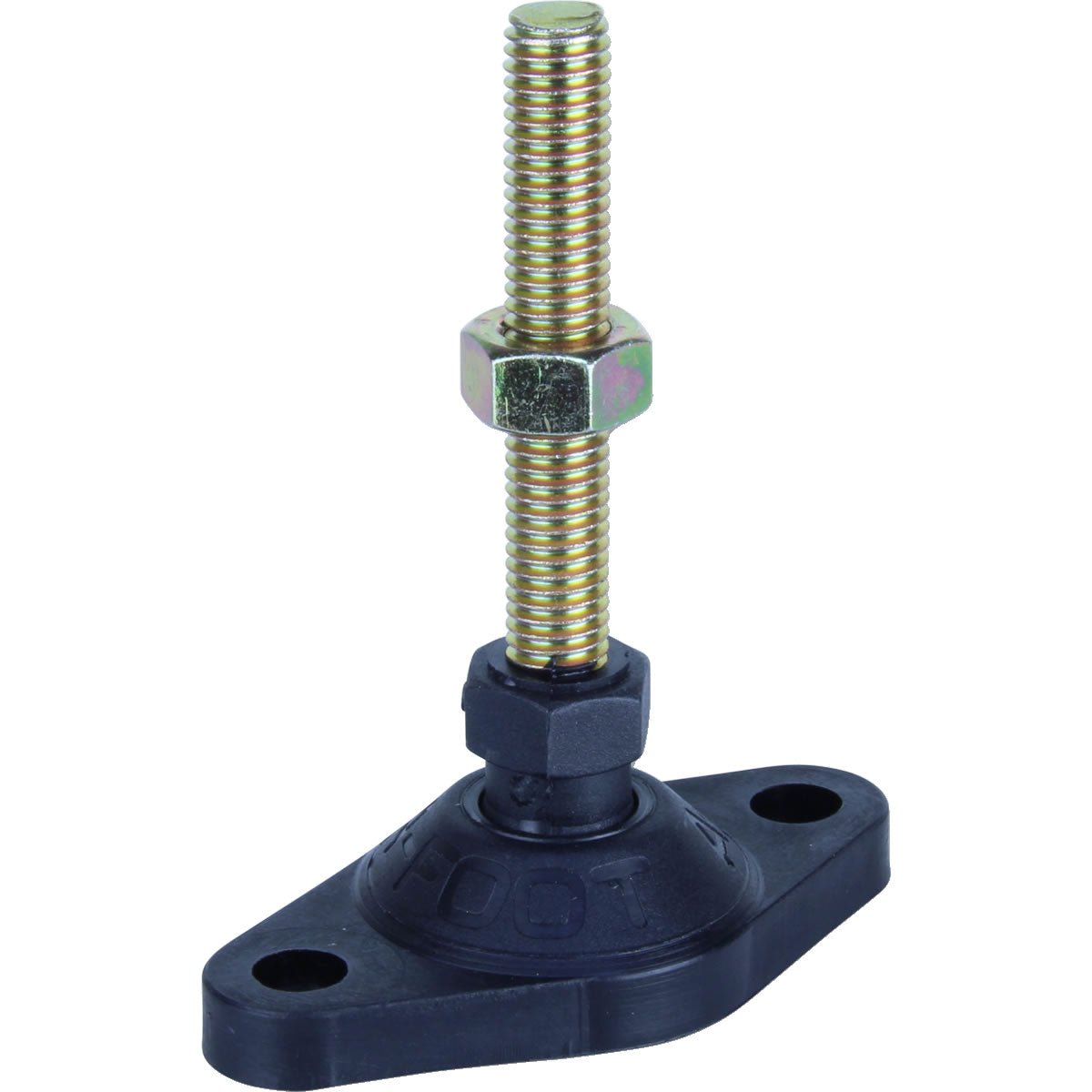

30/40/M10/60 500 Kg 40mm x M10 Zinc Plated Levelling Feet


Technical Specifications:

  • Material: Ball Jointed Bolt-Down Mild Steel
  • Size: 40mm x M10
  • Base Diameter: 40mm
  • Thread Length: 60mm
  • Base & Knuckle Height: 33mm
  • Base Only Height: 20mm
  • Thread Size: M10
  • Thread Type: Zinc Plated
  • Pivot Angle: 40 Deg
  • Load Rating - Vertical: 500 Kg
  • Bolt Down Hole Centres: 60mm
  • Bolt Down Hole Diameter: 9mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Download Specifications PDF

Delivery or in-store pickup available.

$10.50 (Incl. GST)
