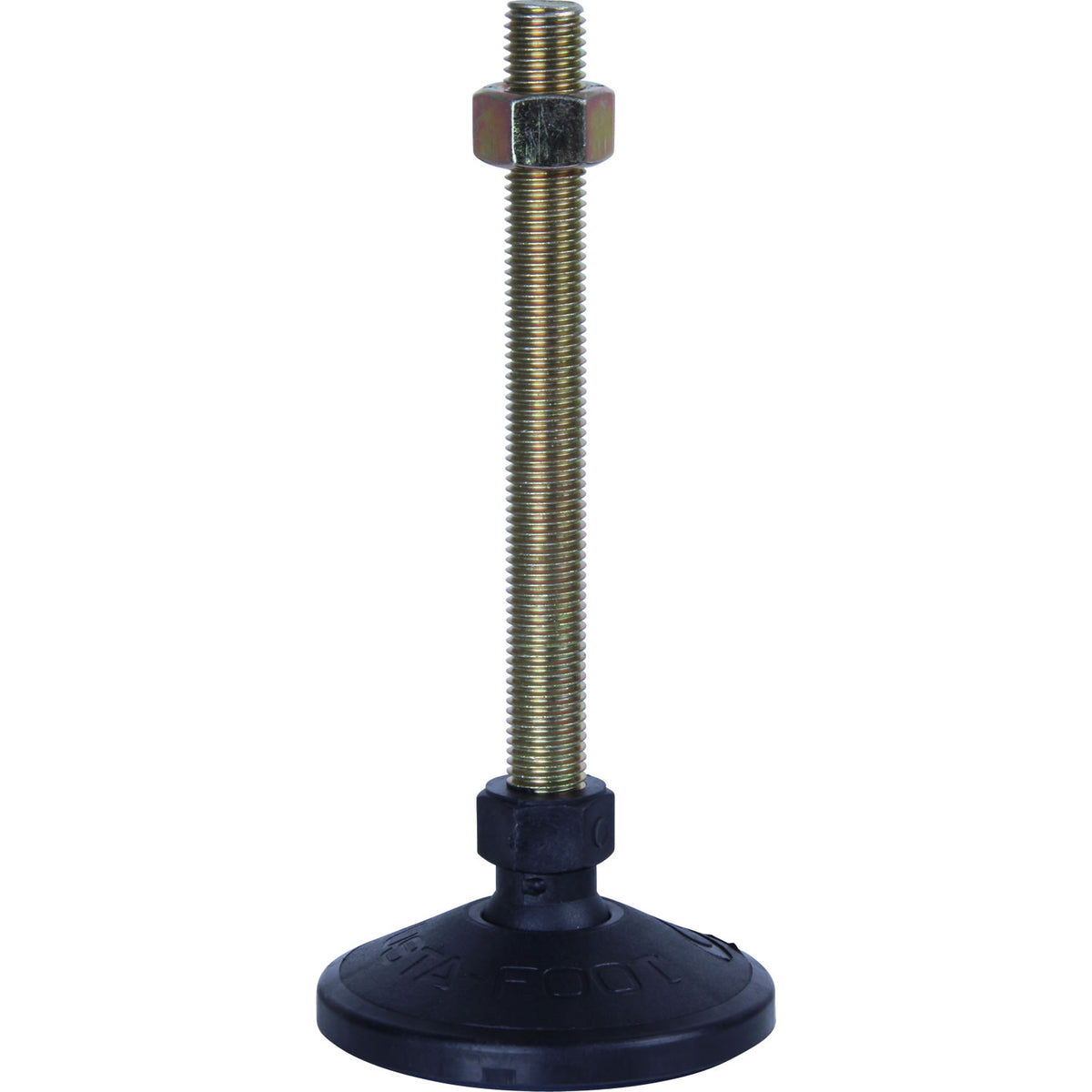

20/90/M16/150 1000kg 90mm x M16 Zinc Plated Levelling Feet

Description

Technical Specifications:

  • Material: Ball Jointed Mild Steel
  • Size: 90mm x M16
  • Base Diameter: 90mm
  • Thread Length: 150mm
  • Base & Knuckle Height: 51mm
  • Base Only Height: 25mm
  • Thread Size: M16
  • Thread Type: Zinc Plated
  • Pivot Angle: 40 Deg
  • Load Rating - Vertical: 1000kg

Adjustable/Levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Download Specifications PDF

Delivery or in-store pickup available.

$22.10 (Incl. GST)
