20/90/M12/65 800kg 90mm x M12 Zinc Plated Levelling Feet


Technical Specifications:

  • Material: Ball Jointed Mild Steel
  • Size: 90mm x M12
  • Base Diameter: 90mm
  • Thread Length: 65mm
  • Base & Knuckle Height: 51mm
  • Base Only Height: 25mm
  • Thread Size: M12
  • Thread Type: Zinc Plated
  • Pivot Angle: 40 Deg
  • Load Rating - Vertical: 800kg

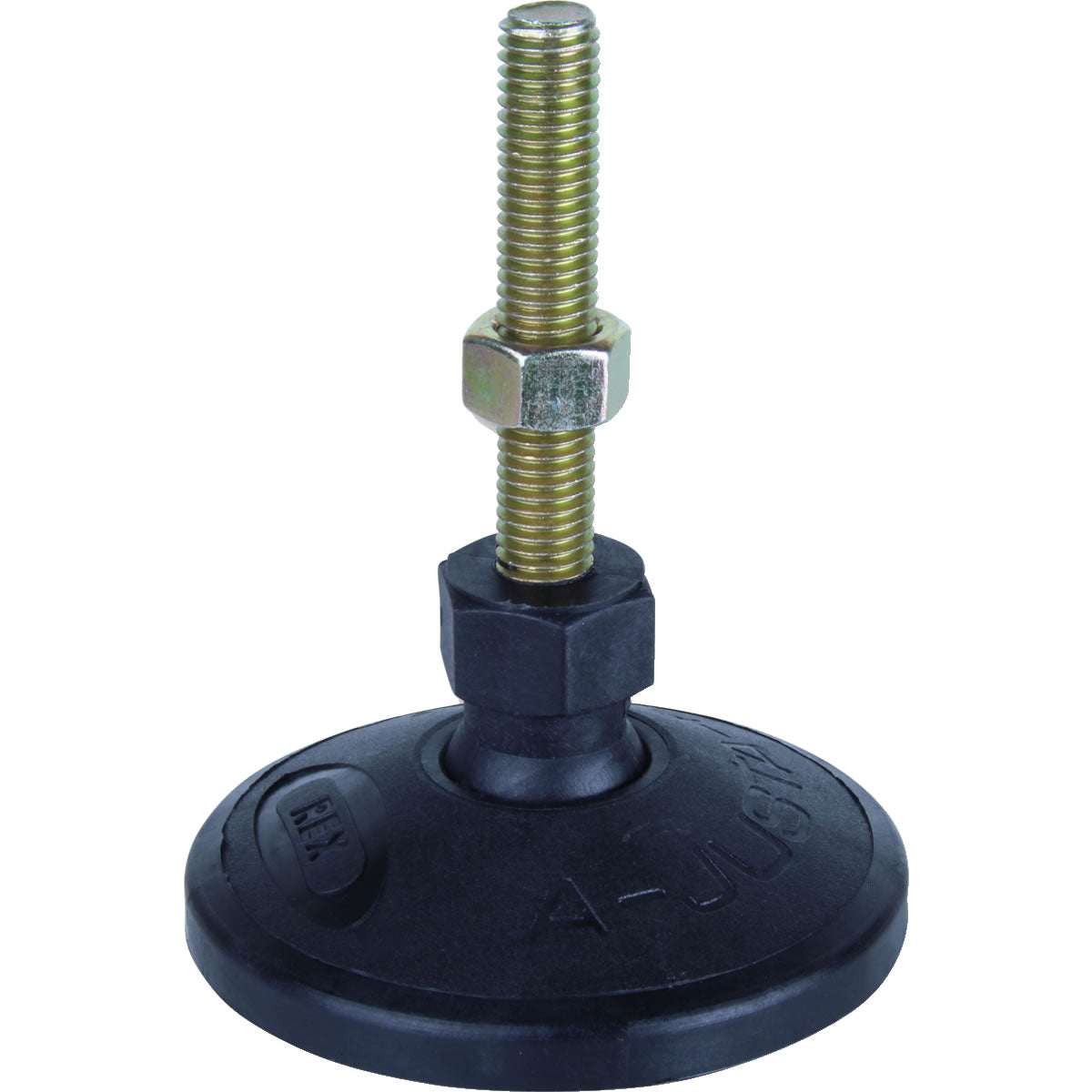

Adjustable/Levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

Download Specifications PDF

Delivery or in-store pickup available.

$16.40 (Incl. GST)
