1477PAO075P30 - 60kg Bolt Hole Total Brake 75mm Polyurethane

Product Description

Technical Specifications

• Brand: Tente
• Castor Type: Swivel
• Load Capacity: 60kg
• Brake Type: Total Brake
• Mounting Type: 11mm Bolt Hole

• Wheel Material: Polyurethane
• Wheel Bearing Type: Plain bore
• Thread Guard Fitted?: N/A
• Frame Finish: Zinc plated

• Overall Height: 100mm
• Axle Type: Internal
• Swivel Radius (Inc. Brake If Fitted): 62.5mm

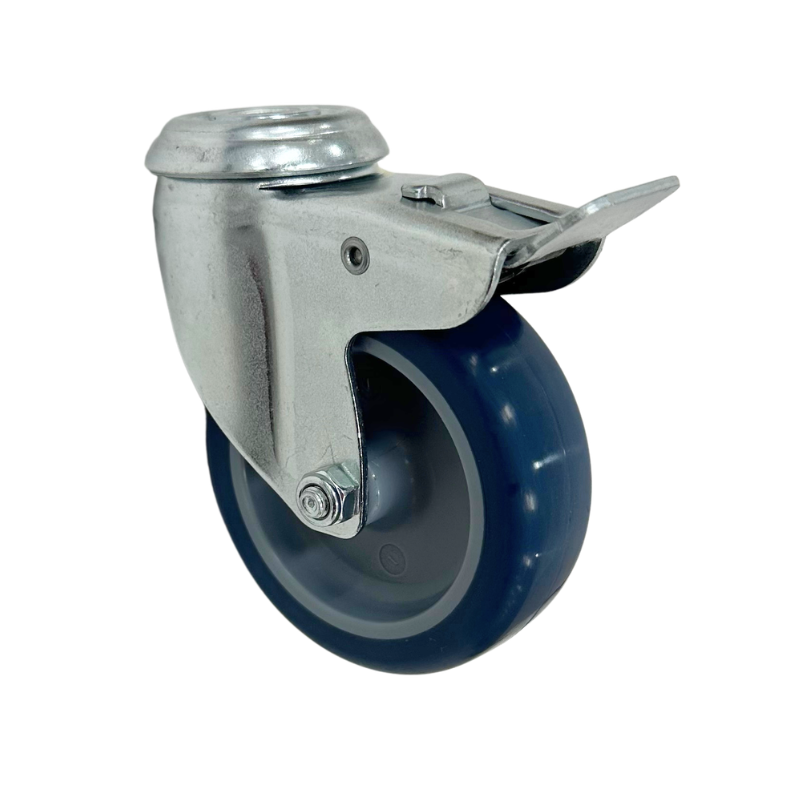

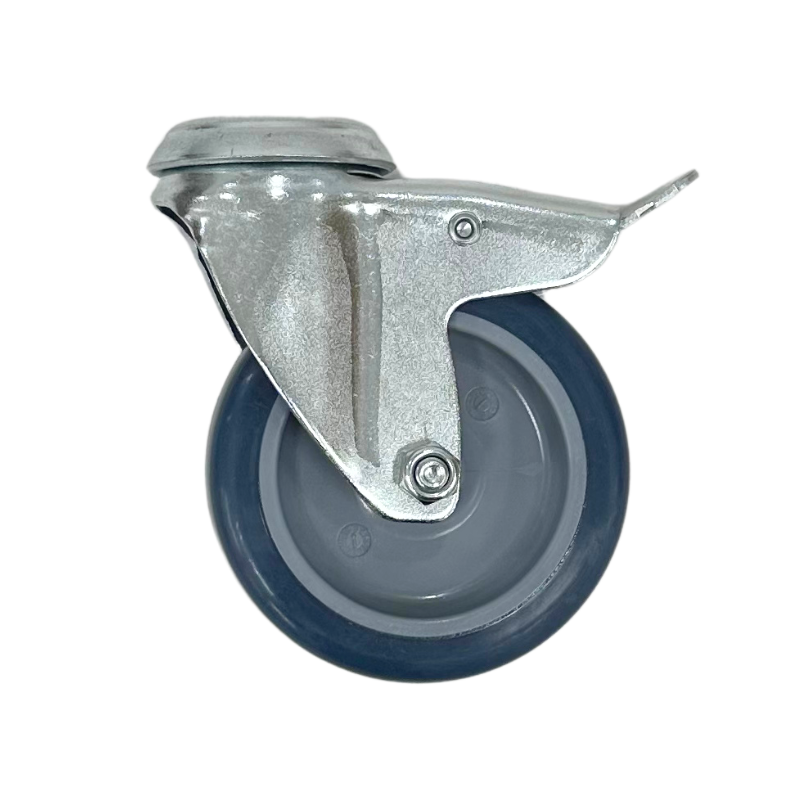

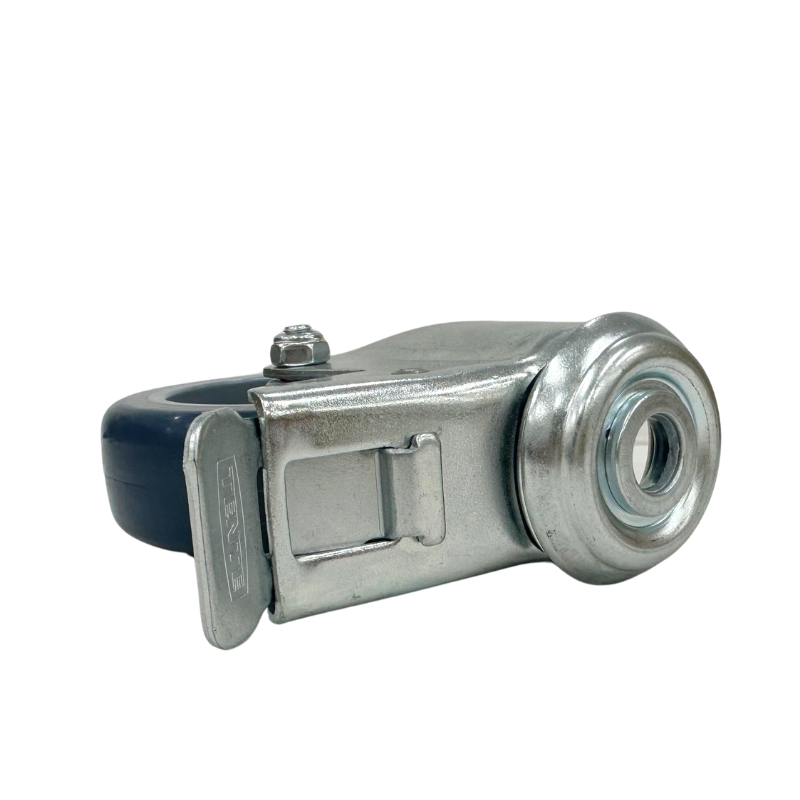

The Agila light swivel castor features a bolt hole fitting that allows mounting with M10 screws of any length, providing flexible installation options. The housing is constructed from light steel sheet and incorporates two ball races for the swivel bearing mechanism, ensuring smooth directional movement and durability. The 75mm wheel comprises of a polypropylene body with injected polyurethane tread material and utilises a plain bearing system. The castor has an overall height of 100mm, making it suitable for compact applications. Load capacity specifications include a dynamic rating of 60kg at speeds up to 3km/h and a static load capacity of 120kg.
This castor is specifically designed for applications including care beds, professional cleaning carts, store fixtures and display equipment.
