1470PAO050P40 - 40kg Swivel Plate 50mm Polyurethane
Shipping calculated at checkout.
Data Sheet PDF
1470PAO050P40 - 40kg Swivel Plate 50mm Polyurethane is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
Product Description
Technical Specifications
- Brand: Tente
- Castor Type: Swivel
- Load Capacity: 40kg
- Brake Type: N/A
-
Mounting Type: Plate
- Wheel Material: Polyurethane
- Wheel Bearing Type: Plain bore
- Thread Guard Fitted?: N/A
-
Frame Finish: Zinc plated
- Overall Height: 70mm
- Axle Type: Internal
- Swivel Radius (Inc. Brake If Fitted): 50mm

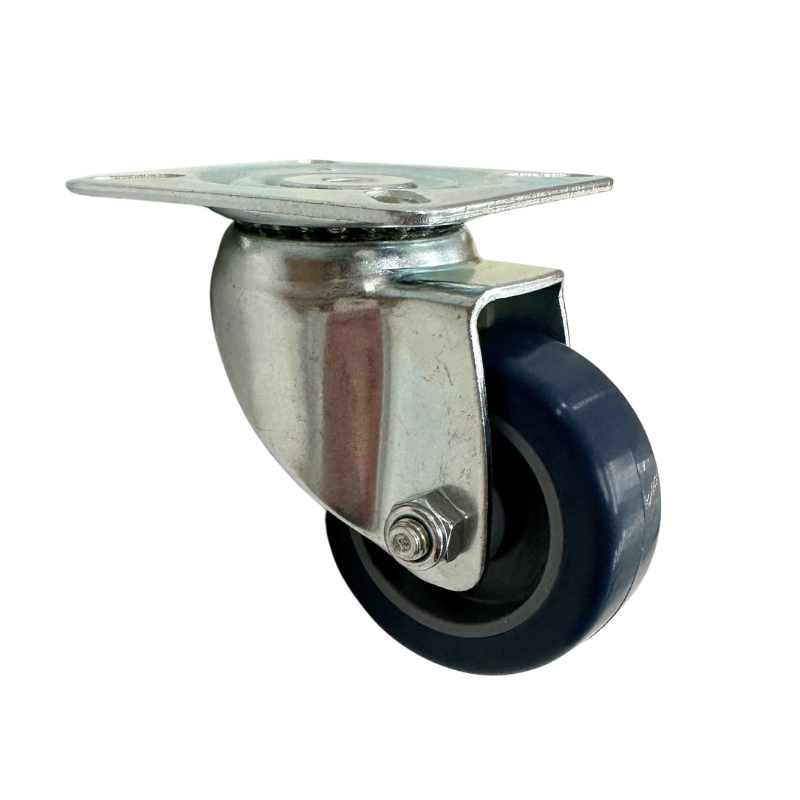

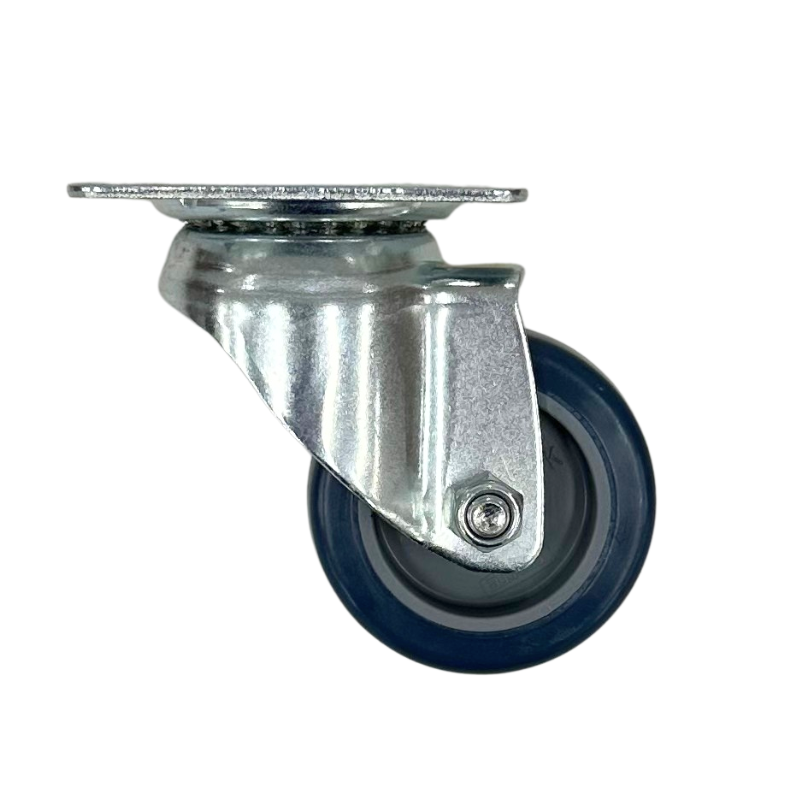

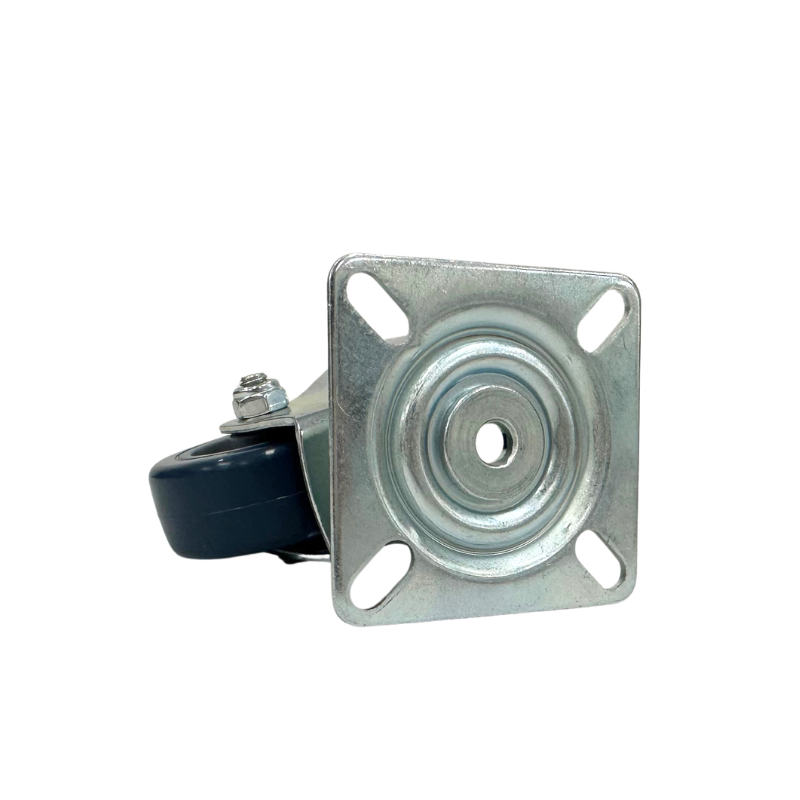

The Agila light swivel castor features a square mounting plate for secure mounting with M6 set screws of any length, providing flexible installation options. The housing is constructed from light steel sheet and incorporates two ball races for the swivel bearing mechanism, ensuring smooth directional movement and durability. The 50mm wheel comprises of a polypropylene body with injected polyurethane tread material and utilises a plain bearing system. The castor has an overall height of 70mm, making it suitable for compact applications. Load capacity specifications include a dynamic rating of 40kg at speeds up to 3km/h and a static load capacity of 80kg.
This castor is specifically designed for applications including care beds, professional cleaning carts, store fixtures and display equipment.
-
Wheel Diameter50 mm
-
Tread Width19 mm
-
Load Capacity40 kg
-
Mounting TypePlate
-
Wheel MaterialPolyurethane
