5947UAP100W11RK - 120 Kg Swivel/Brake 100mm Twin Wheel Polyurethane

Product Description

Technical Specifications

• Brand: Tente
• Castor Type: Swivel
• Load Capacity: 120 Kg
• Brake Type: Total Brake
• Mounting Type: 11mm Bolt Hole
• Wheel Material: Polyurethane
• Wheel Bearing Type: Precision Ball Bearing
• Thread Guard Fitted?: Yes
• Frame Finish: White Polyamide

• Overall Height: 118mm
• Axle Type: Internal
• Swivel Radius (Inc. Brake If Fitted): 105mm

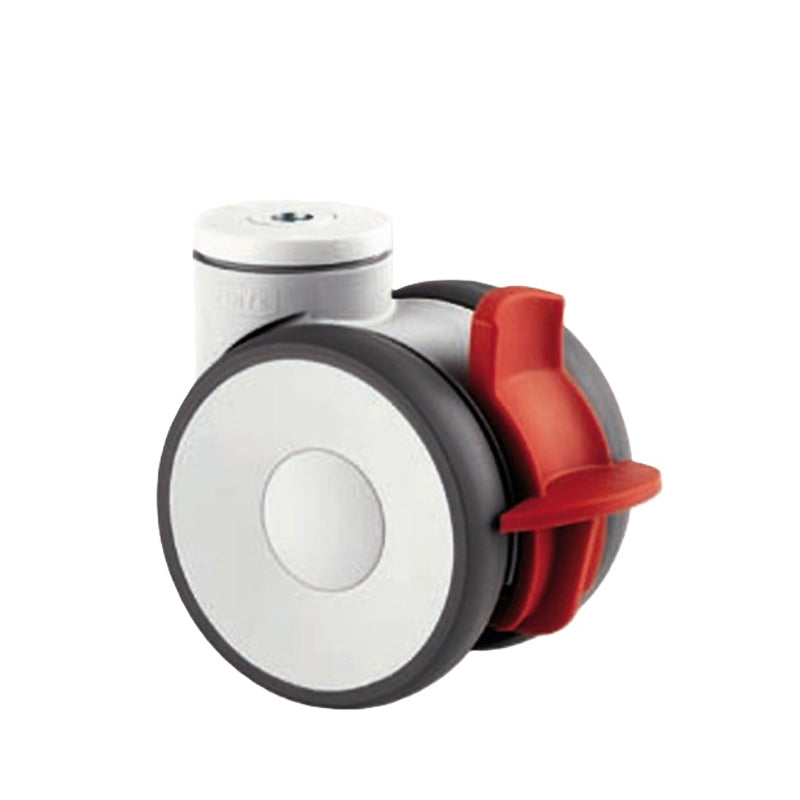

The 5940UAP100W-11 is a robust twin-wheel swivel/brake castor from the TENTE Linea range, offering smooth, reliable rolling and excellent manoeuvrability. It features a durable polyamide body, polyurethane tread (Shore A 92), and precision ball bearings in both the wheels and swivel head for reduced friction and long-lasting performance—even under frequent or heavy use.

With 100 mm diameter wheels, 20 mm tread width, and a castor width of 82 mm, this twin-wheel castor supports a 120 kg dynamic load and 240 kg static load, operating reliably between –10 °C and +40 °C. Key dimensions include a centre hole of 11mm for 10mm bolt fitting.overall height of 118 mm.

Designed to EN 12530 standards, the 5947UAP100W11RK is ideal for medical equipment, laboratory furniture, or service trolleys, combining strength, quiet operation, and long-term durability.
