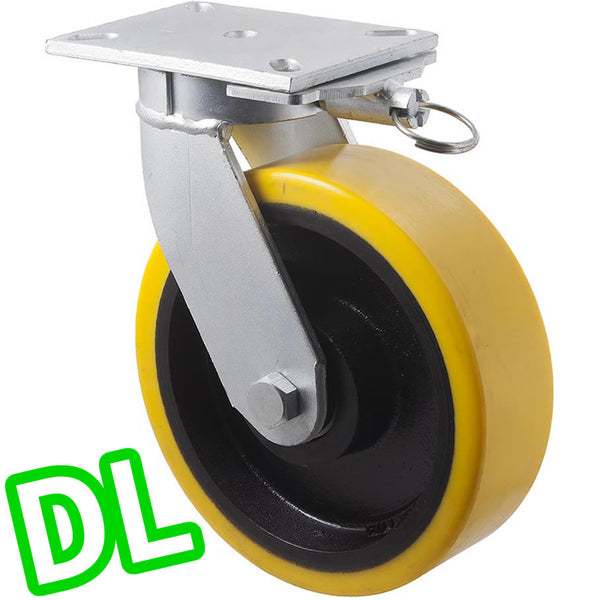

VUQ250/VZPDL 2000 Kg Swivel Plate Direction Lock Only 250mm Polyurethane

Description

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 2000 Kg
  • -Brake Type- Direction Only

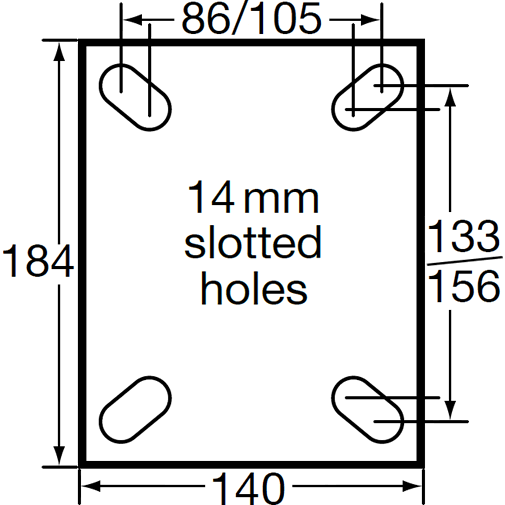

  • -Mounting Type- Plate
  • -Wheel Material- P/U on Cast Iron
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 250mm x 75mm
  • -Overall Height- 318mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 190mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Ultra heavy duty industrial polyurethane castor. General use including power towed trolleys, very heavy trolleys, factory machinery, portable buildings and boat building.

Related Options..

$718.95 (Incl. GST)

Make an enquiry about this product: VUQ250/VZPDL 2000 Kg Swivel Plate Direction Lock Only 250mm Polyurethane
