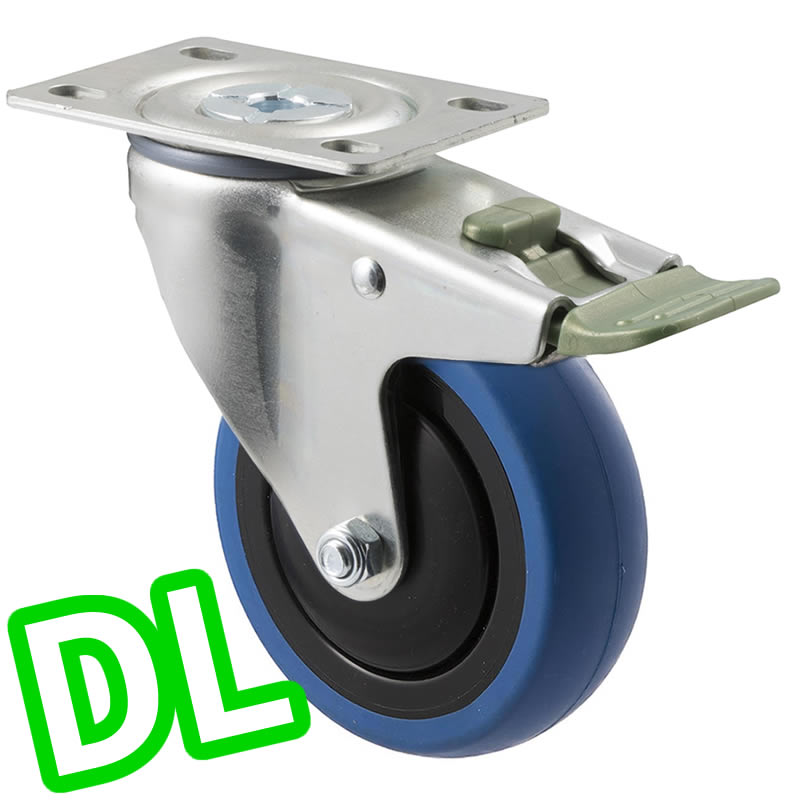

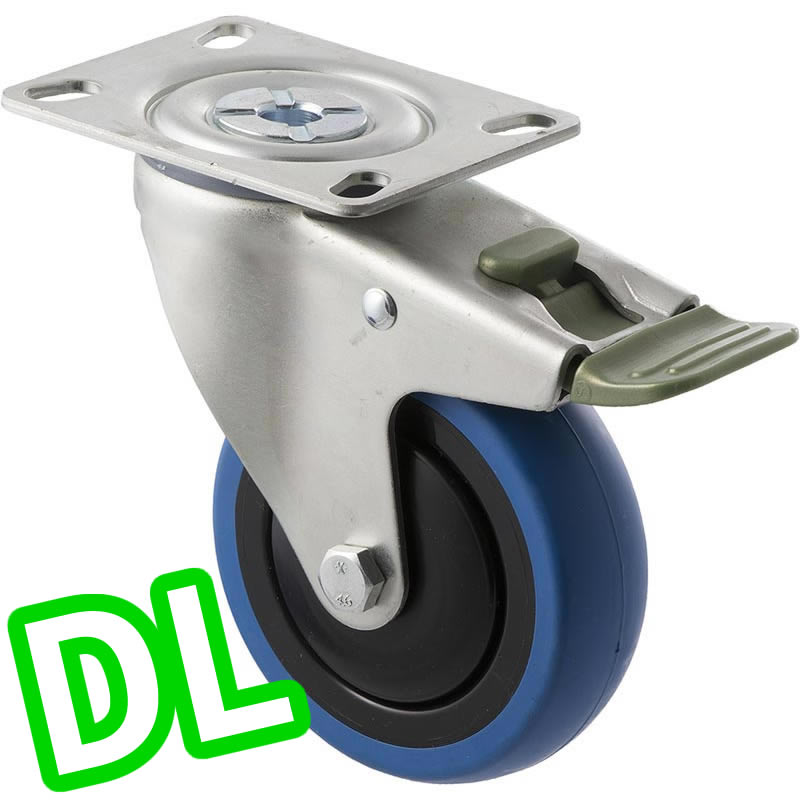

CBQ100G/MZPDL - 100 kg Swivel Plate Direction Lock Only 100mm Blue Rubber

$47.35 $49.85
GST included.
Shipping calculated at checkout.
Data Sheet PDF Data Sheet PDF Mounting Solutions Mounting Solutions
Top Plate Option

Order within:

00:00:00 for same day dispatch.

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours
Contact us for discounts on trade and large quantity orders!

Product Description

Technical Specifications

  • Castor Type: Swivel
  • Load Capacity: 100 kg
  • Brake Type:Direction Only
  • Mounting Type: Plate
  • Wheel Material: Blue Rubber
  • Wheel Bearing Type: Ball Bearing
  • Thread Guard Fitted?: Yes
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 30mm
  • Overall Height: 135mm
  • Axle Type: Bolted
  • Swivel Radius (Inc. Brake If Fitted): 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial blue rubber castor. General use including warehouse trolleys, engineering and furniture.

Related Options..

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

  • Maximum Capacity
    100 kg
  • Overall Height
    135 mm
  • Wheel Diameter
    100 mm
  • Tread Width
    30 mm
  • Tread Material
    Blue Rubber
  • Castor Type
    Swivel
  • Mounting Type
    Mounting Plate
  • Frame Finish
    Zinc
  • Bearing Type
    Ball Bearing
  • Axle Type
    Bolted

Enquire about the CBQ100G/MZPDL - 100 kg Swivel Plate Direction Lock Only 100mm Blue Rubber
