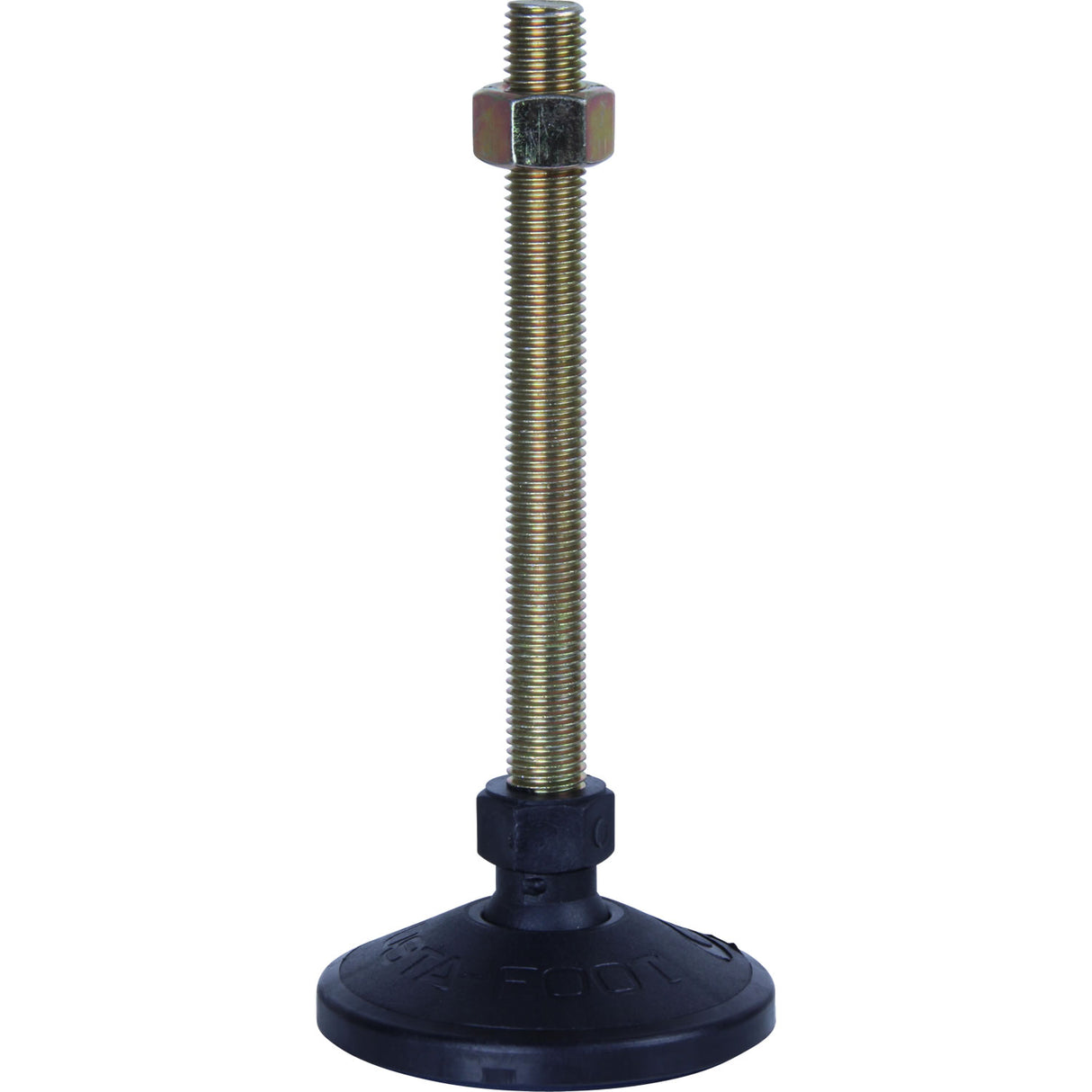

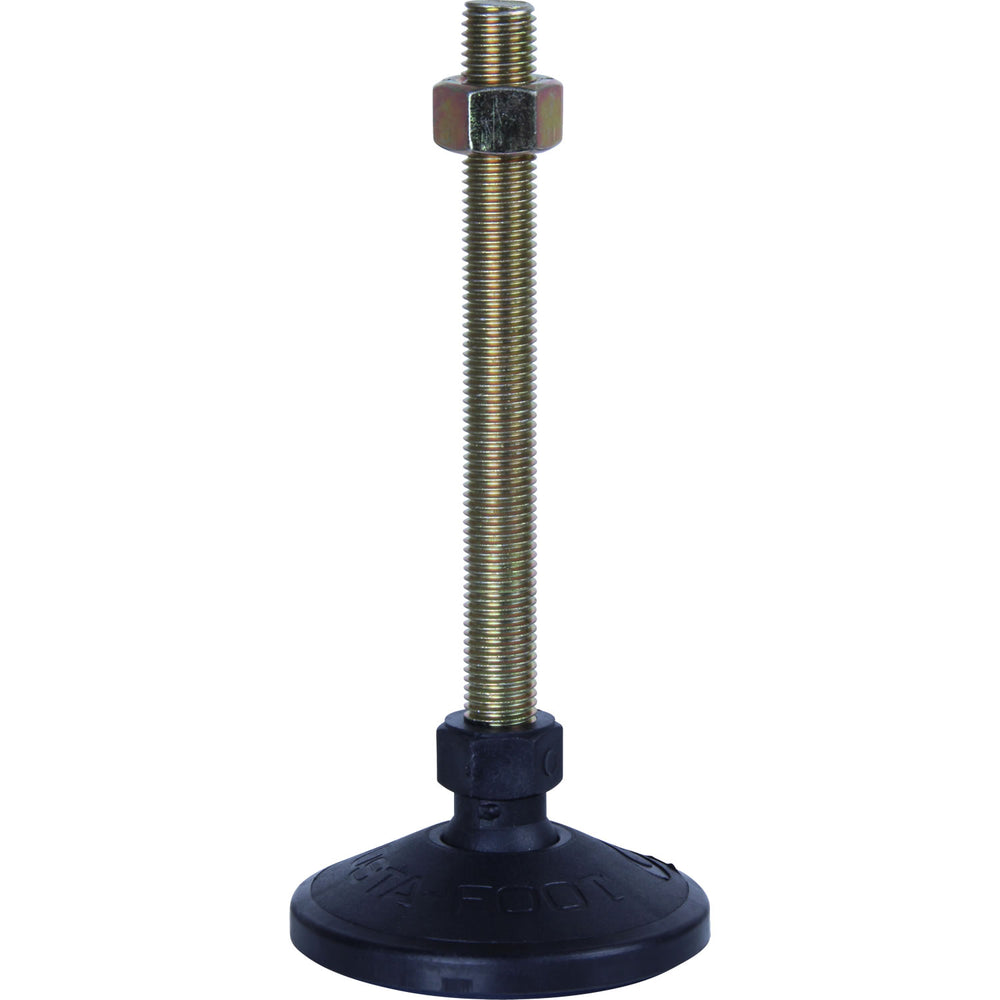

20/90/M16/150 1000 Kg 90mm x M16 Zinc Plated Levelling Feet

Description

Technical Specifications

  • -Material- Ball Jointed Mild Steel
  • -Size- 90mm x M16
  • -Base Diameter- 90mm
  • -Thread Length- 150mm
  • -Base+Knuckle Height- 51mm
  • -Base Only Height- 25mm
  • -Thread Size- M16
  • -Thread Type- Zinc Plated
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 1000 Kg

Adjustable/Levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are zinc plated steel.

$26.00 (Incl. GST)
