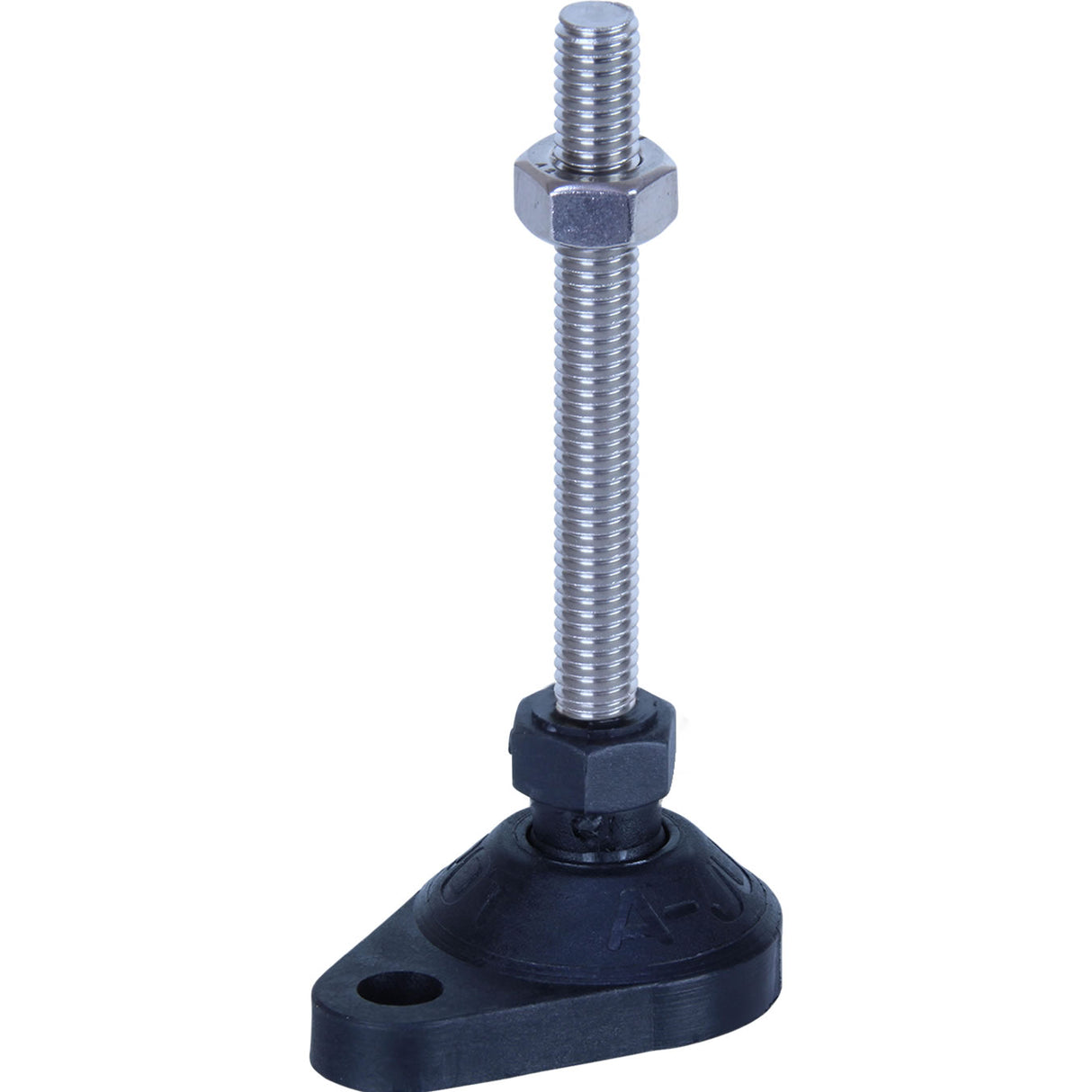

31/40/M8/80/1Lug 350 Kg 40mm x M8 Stainless Steel Levelling Feet
Regular price
$16.78
Unit price
/
Unavailable
GST included
Data Sheet PDF
31/40/M8/80/1Lug 350 Kg 40mm x M8 Stainless Steel Levelling Feet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
Product Description
Technical Specifications
- Material: Ball Jointed Bolt-Down Stainless Steel
- Size: 40mm x M8
- Base Diameter: 40mm
- Thread Length: 80mm
- Base+knuckle Height: 33mm
- Base Only Height: 20mm
- Thread Size: M8
- Thread Type: Stainless Steel
- Pivot Angle: 40 Deg
- Load Rating - Vertical: 350 Kg
- Bolt Down Hole Diameter: 9mm
Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are 304 stainless steel.
-
Load Capacity350 kg
