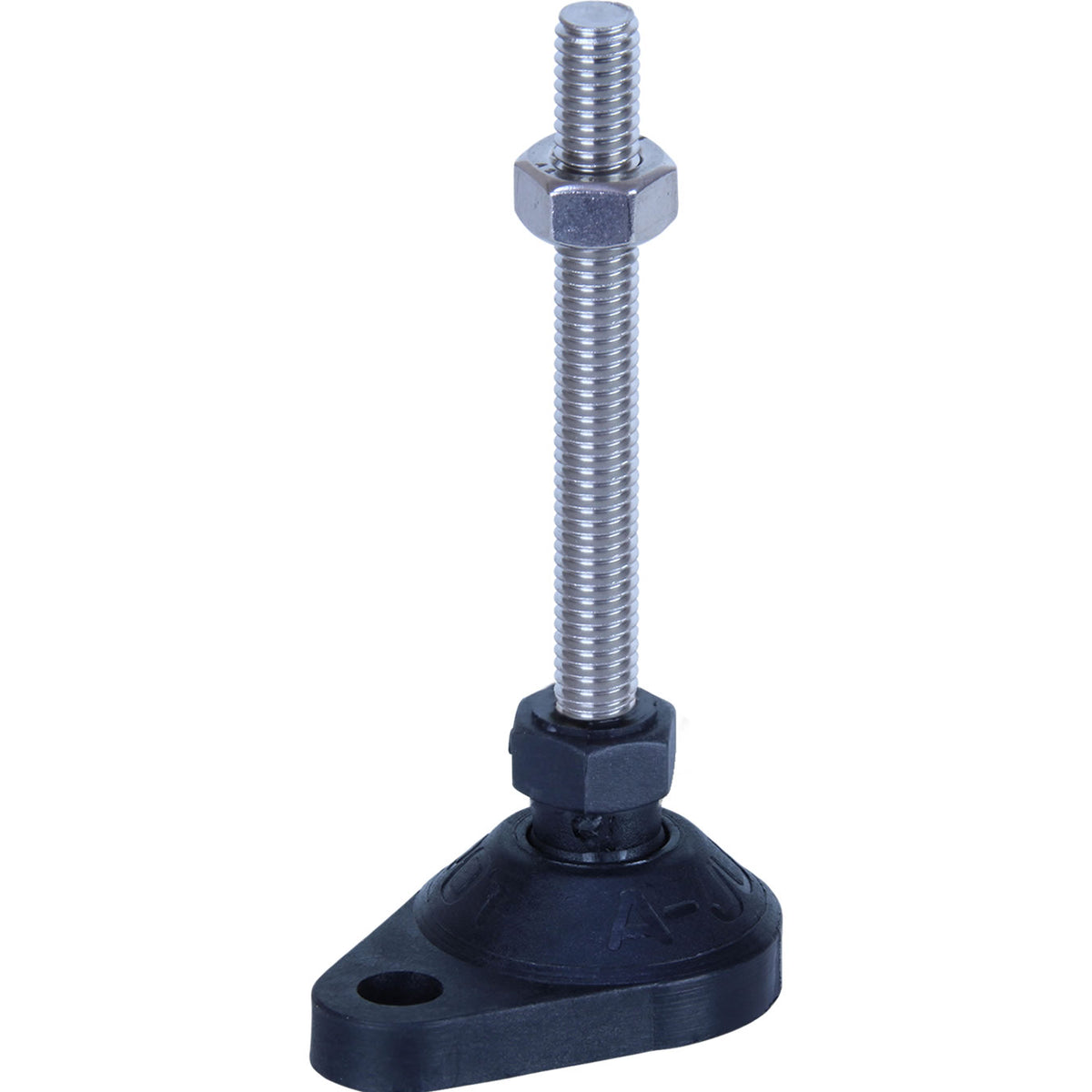

31/40/M8/80/1Lug 350 Kg 40mm x M8 Stainless Steel Levelling Feet

Description

Technical Specifications

  • -Material- Ball Jointed Bolt-Down Stainless Steel
  • -Size- 40mm x M8
  • -Base Diameter- 40mm
  • -Thread Length- 80mm
  • -Base+Knuckle Height- 33mm
  • -Base Only Height- 20mm
  • -Thread Size- M8
  • -Thread Type- Stainless Steel
  • -Pivot Angle- 40 Deg
  • -Load Rating - Vertical- 350 Kg
  • -Bolt Down Hole Diameter- 9mm

Bolt Down adjustable/levelling foot with ball joint and fitted with non-slip insert in base. Thread and nut are 304 stainless steel.

$15.25 (Incl. GST)

Make an enquiry about this product: 31/40/M8/80/1Lug 350 Kg 40mm x M8 Stainless Steel Levelling Feet
