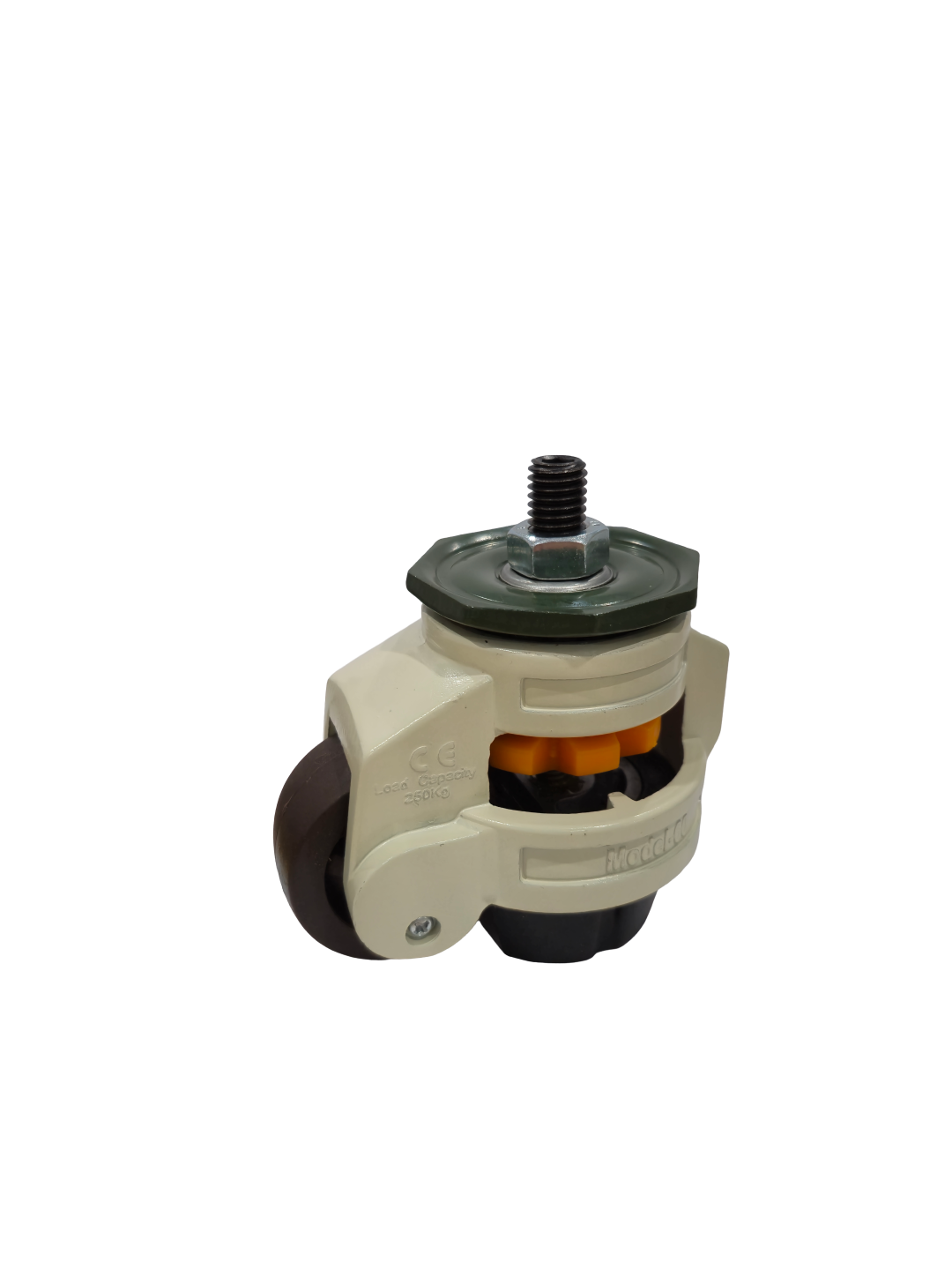

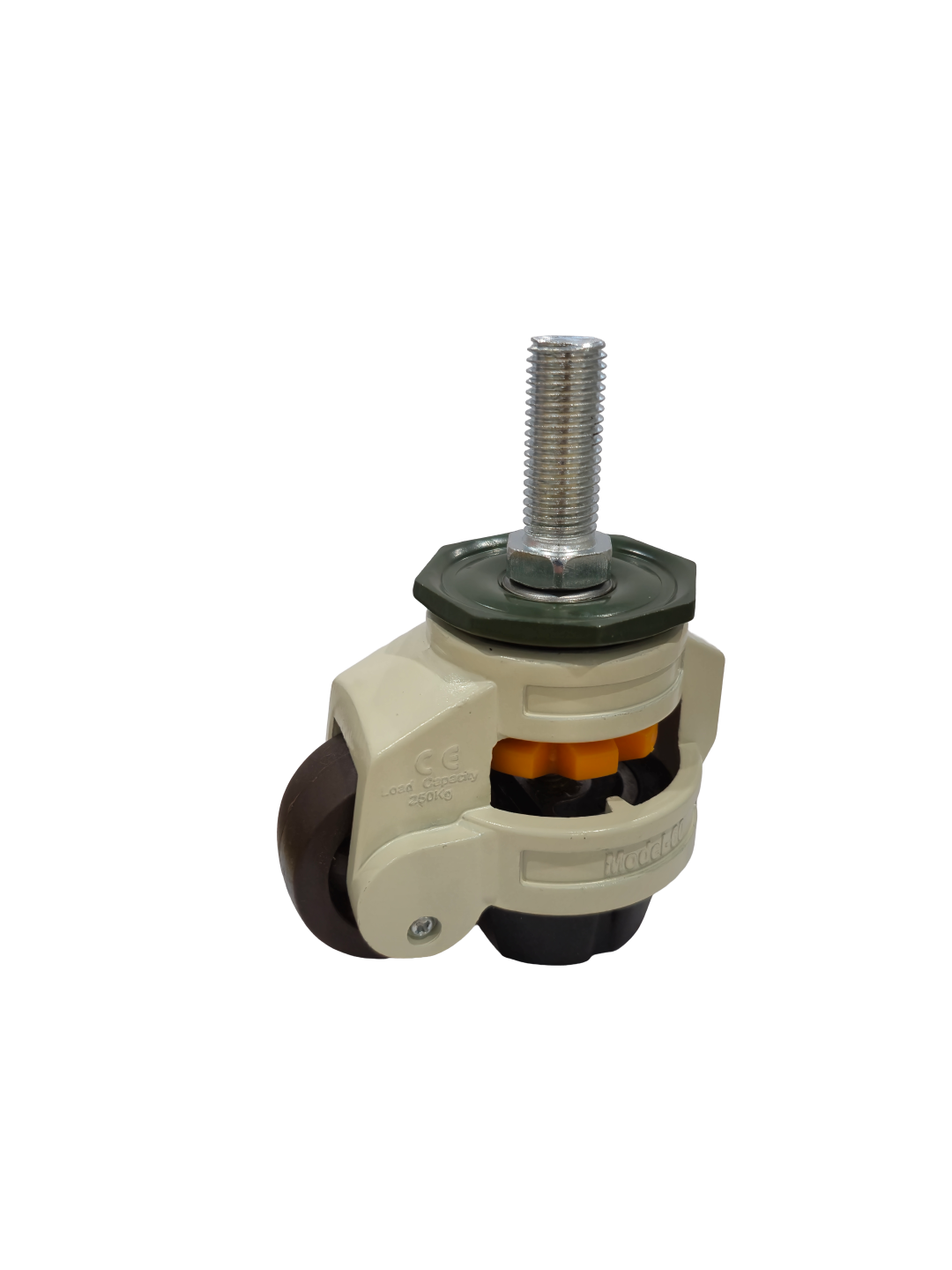

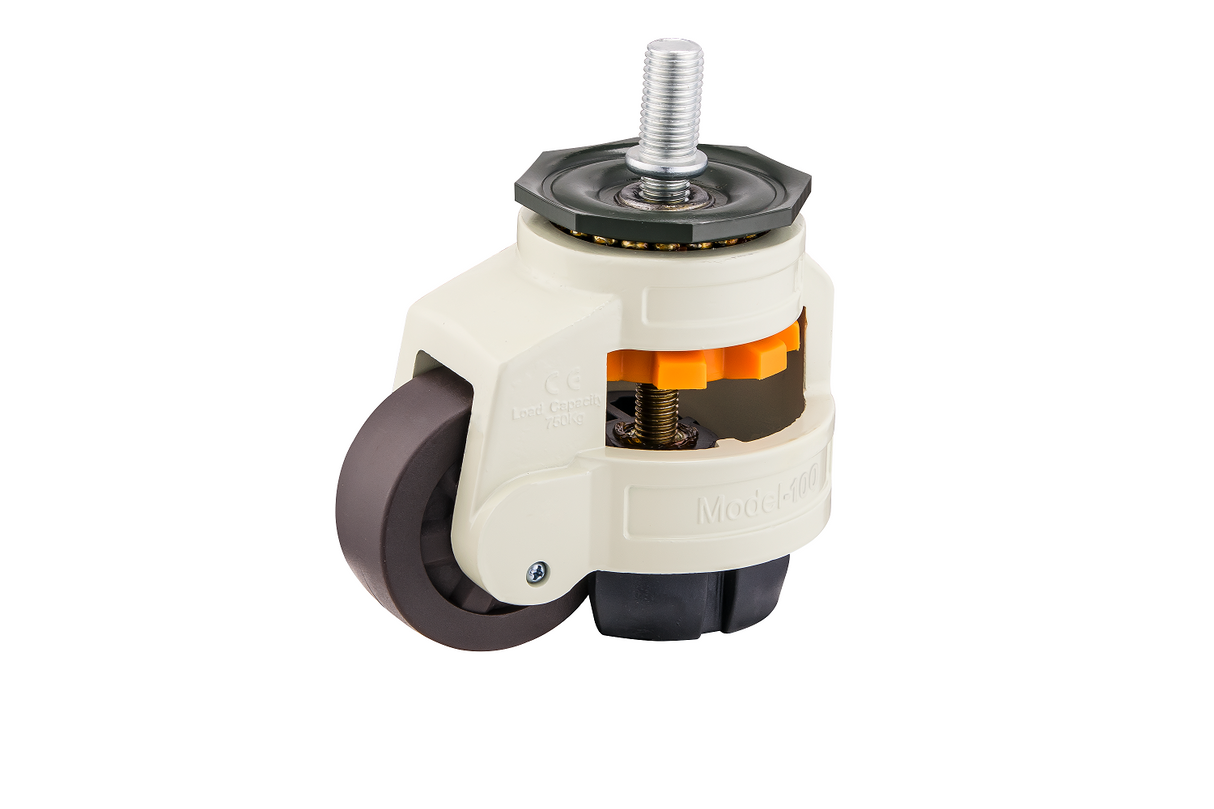

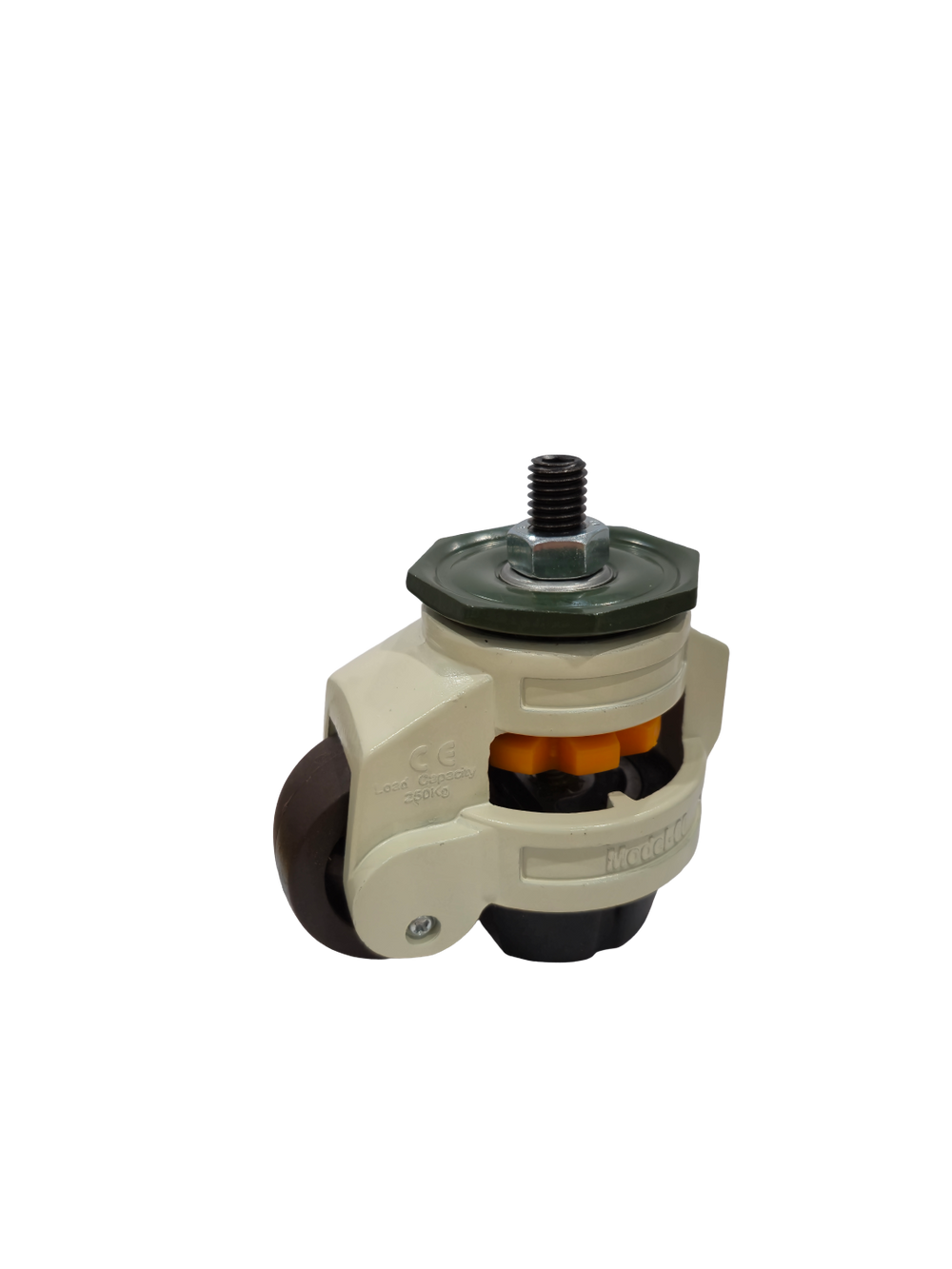

LV50HWHTBH - Level/Height Adjustment Castor 250kg
Shipping calculated at checkout.
LV50HWHTBH - Level/Height Adjustment Castor 250kg - M16 is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
Product Description
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 250 Kg per castor
- Mounting Type: Female M12, supplied standard with M12 removeable male fitting, M14 & M16 40mm pintle options available.
- Wheel Material: Nylon
- Wheel Bearing Type: Plain Bush
- Frame Finish: White Powder Coat
- Wheel Diameter X Tread Width: 50mm x 24mm
- Swivel Radius:- 63mm
- Lift Operation:Finger Operated Rotating Wheel (orange)
- -adjustable Range: 0-12mm
- Overall Height:Castor 110mm+12mm at max height adjustment
Finger operated levelling castor. Anti vibration rubber foot and nylon wheel. Cast alloy body with powder coat finish. Once the rubber foot is lowered the castor wheel is raised off the ground (heavier loads must be taken off castors to allow adjustment). When the foot is wound up the wheel contacts the ground and becomes a swivel castor. Suitable for workbenches, pool tables, machinery and displays. 1000kg max load over 4 units.
M12,M14,M16 Threads available. Select option below.
-
Wheel Diameter50 mm
-
Tread Width24 mm
-
Load Capacity250 kg
