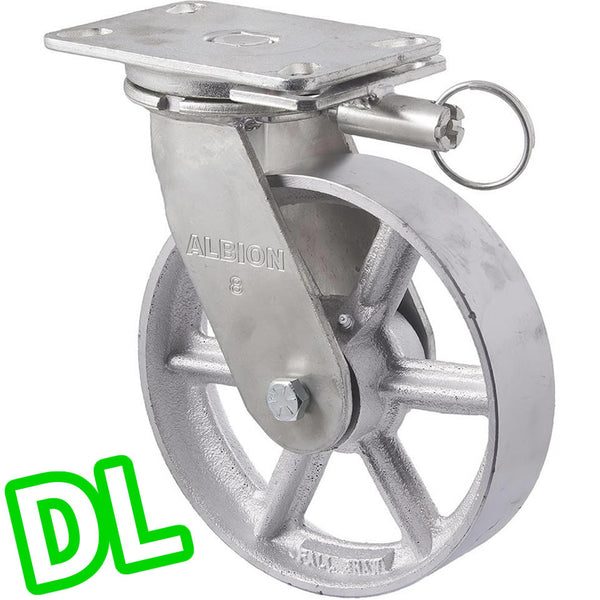

XCQ200/XZPDL - 820 kg Swivel Plate Direction Lock Only 200mm Cast Iron

$218.15 $229.65
GST included.
Shipping calculated at checkout.
Data Sheet PDF Data Sheet PDF Mounting Solutions Mounting Solutions

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours

Contact us for discounts on trade and large quantity orders!

Product Description

Technical Specifications

  • Castor Type: Swivel
  • Load Capacity: 820 kg
  • Brake Type:Direction Only
  • Mounting Type: Plate
  • Wheel Material: Cast Iron
  • Wheel Bearing Type: Ball Bearing
  • Thread Guard Fitted?: No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 200mm x 50mm
  • Overall Height: 257mm
  • Axle Type: Bolted
  • Swivel Radius (Inc. Brake If Fitted): 162mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.

Related Options..

  • Maximum Capacity
    820 kg
  • Overall Height
    257 mm
  • Wheel Diameter
    200 mm
  • Tread Width
    50 mm
  • Tread Material
    Cast Iron
  • Castor Type
    Swivel
  • Mounting Type
    Mounting Plate
  • Frame Finish
    Zinc
  • Bearing Type
    Ball Bearing
  • Axle Type
    Bolted
