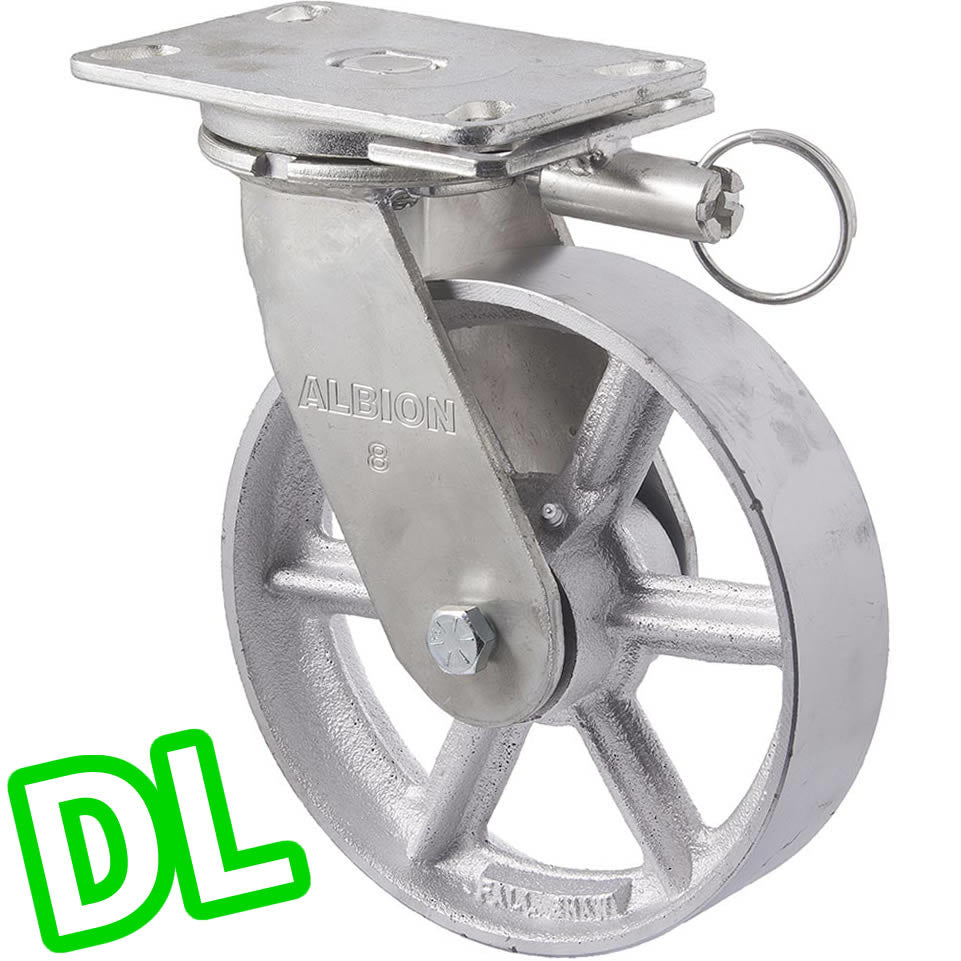

XCQ200/XZPDL - 820 kg Swivel Plate Direction Lock Only 200mm Cast Iron
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
XCQ200/XZPDL - 820 kg Swivel Plate Direction Lock Only 200mm Cast Iron is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
XCQ200/XZPDL - 820 kg Swivel Plate Direction Lock Only 200mm Cast Iron is backordered and will ship as soon as it is back in stock.
Product Description
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 820 kg
- Brake Type:Direction Only

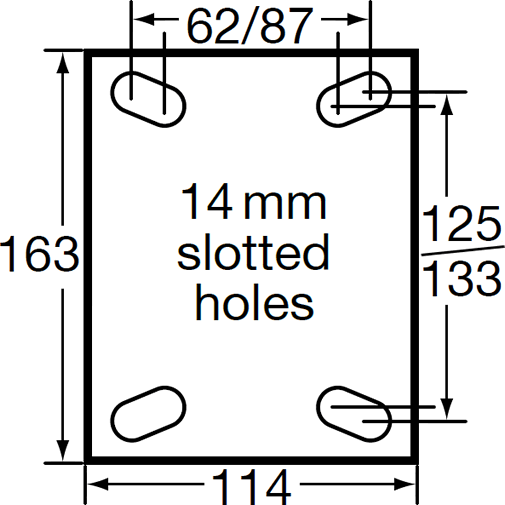

- Mounting Type: Plate
- Wheel Material: Cast Iron
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 200mm x 50mm
- Overall Height: 257mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 162mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Very heavy duty industrial cast iron castor. General use including power towed trolleys, heavy trolleys, factory jigs and machinery. Good impact resistance.
