VGR100 280 Kg 100mm V Groove


Technical Specifications.

  • -Groove Type- V Groove
  • -Load Capacity- 280 Kg
  • -Wheel Diameter- 100mm
  • -Wheel Material- Steel
  • -Finish- Black Paint
  • -Tyre Material- Steel
  • -Wheel Width- 36mm
  • -Groove Width- 22mm
  • -Groove Depth- 11mm
  • -Hub Length (unsleeved)- 41mm
  • -Hub Length (sleeved)- N/A
  • -Bore Diameter (unsleeved)- 12.7mm (1/2")
  • -Sleeved Bore Diameter Options- N/A
  • -Sleeve Type- N/A
  • -Bearing Type- Ball Bearing

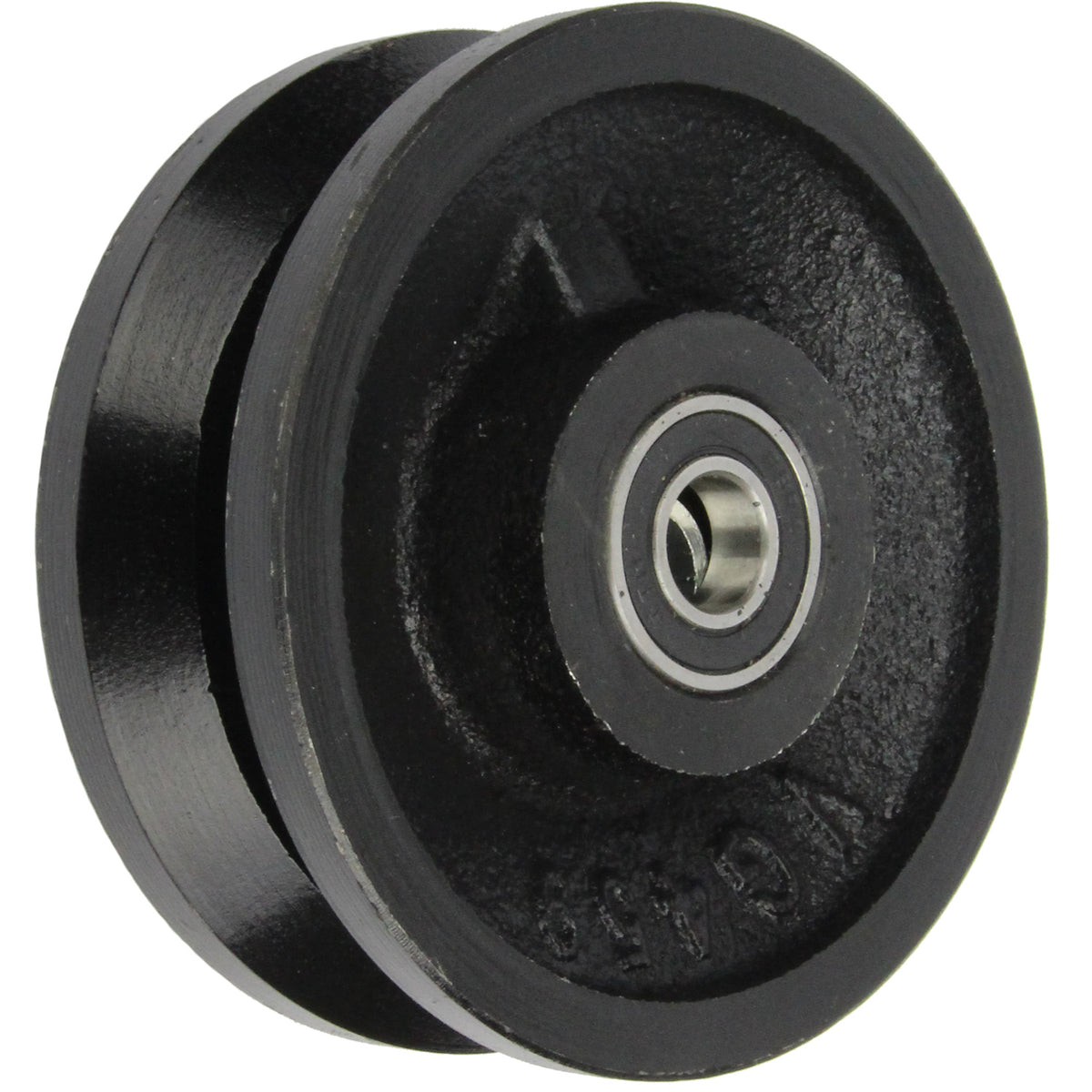

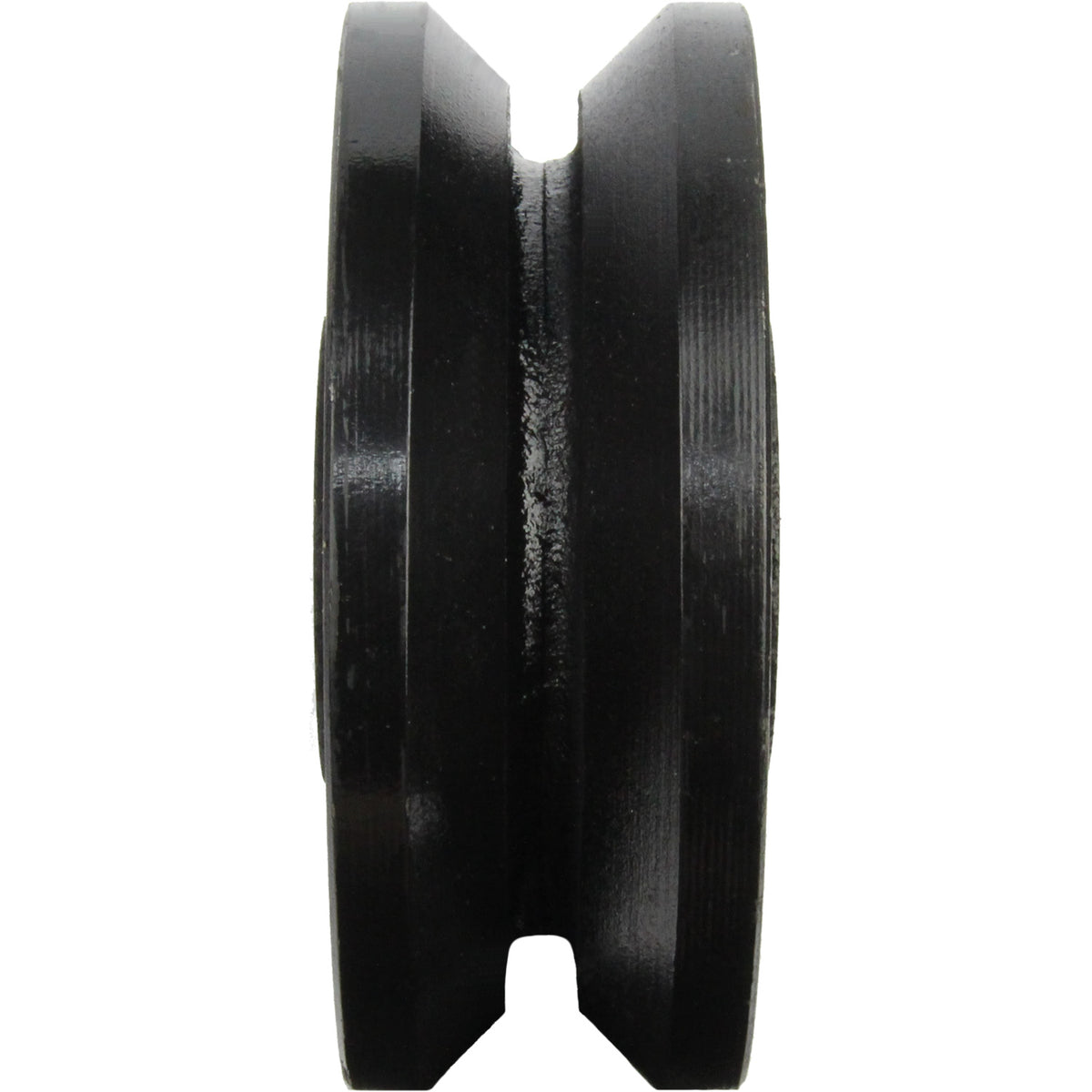

Machined steel "V" groove wheel, for use with folded angle tracks.

$97.45 (Incl. GST)
