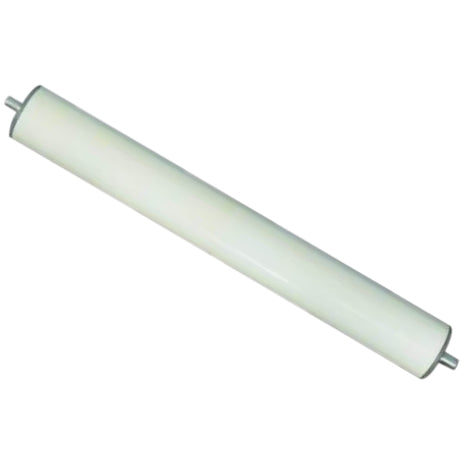

TSPROLL450 30 Kg 450x50 (380mm x 48mm) PVC Conveyor Roller

Description

Technical Specifications

  • -Load Capacity- 30 Kg
  • -Roller Diameter- 48mm
  • -Roller Face Length- 380mm
  • -Roller Over Bearing Width - 387mm
  • -Roller Material- White PVC
  • -Shaft Diameter- 10mm x 8mm(Flat)
  • -Shaft Length- 412mm
  • -Shaft Extension- 12.5mm
  • -Spring Loaded Shaft?- Yes
  • -Bearing Type- Ball Bearings

Our 450mm PVC Gravity Conveyor Rollers have a load capacity of 30kg each. They deliver smooth, efficient, and safe goods transportation along conveyor lines in all kinds of industries. Using the power of gravity, these rollers offer a straightforward and cost-effective solution for everyone from warehouses to manufacturing plants.

With spring-loaded shafts for ease of maintenance and installation. Shafts also have flats to lock into the frame, ensuring the roller is running on the bearings. Remember to always have at least three rollers supporting your goods for the best results.

We can also custom manufacture rollers to fit your exact needs. Whether you need different sizing or material we can offer Stainless steel, PVC, galvanized steel, rubber coating. Also threaded ends and different shafts. Please call or email the office to discuss any custom needs.

Related Items...

Other Sizes & Materials...

$19.53 (Incl. GST)

Make an enquiry about this product: TSPROLL450 30 Kg 450x50 (380mm x 48mm) PVC Conveyor Roller
