TSFRAME600 600mm x 3000mm Conveyor Frame In-store pickup required

Description

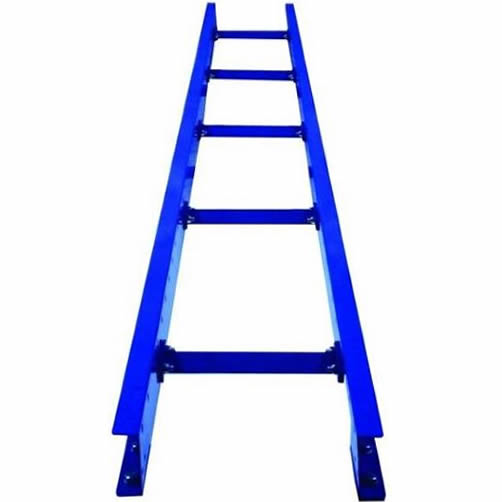

Product Description: TSFRAME600

  • Our mild steel powder-coated conveyor frame is engineered to meet the highest standards of durability and performance. With a width of 590mm and a length of 3000mm, this robust frame is designed to excel in various industrial applications.

    Key Features:

  • Enhanced Strength and Rigidity: The frame is reinforced with five bolted cross members, ensuring maximum strength and stability even under heavy loads.

  • Versatile Roller Configuration: Equipped with pre-punched holes to accommodate our STEEL or PVC spring-loaded rollers, this conveyor frame offers flexibility in roller placement. It is recommended to have a minimum of three rollers underneath your goods at all times for safe support and stability. Depending on your specific requirements, up to 40 rollers can be effortlessly installed, providing a pitch of 75mm, while 20 rollers deliver a pitch of 150mm. Once installed, the distance from the frame's bottom surface to the top of the roller measures 90mm.

  • Customization Options: Our commitment to meeting diverse customer needs extends to offering customized conveyor solutions. Whether you require specific dimensions, additional features, or unique configurations, our team is dedicated to tailoring conveyors to your exact requirements.

    For custom conveyor solutions or further inquiries, please don't hesitate to contact our sales office via email or phone.

Related Items...

Other Sizes and Materials...

In-store pickup required.
Local freight can be arranged call (03) 9792 3949.

$275.00 (Incl. GST)
