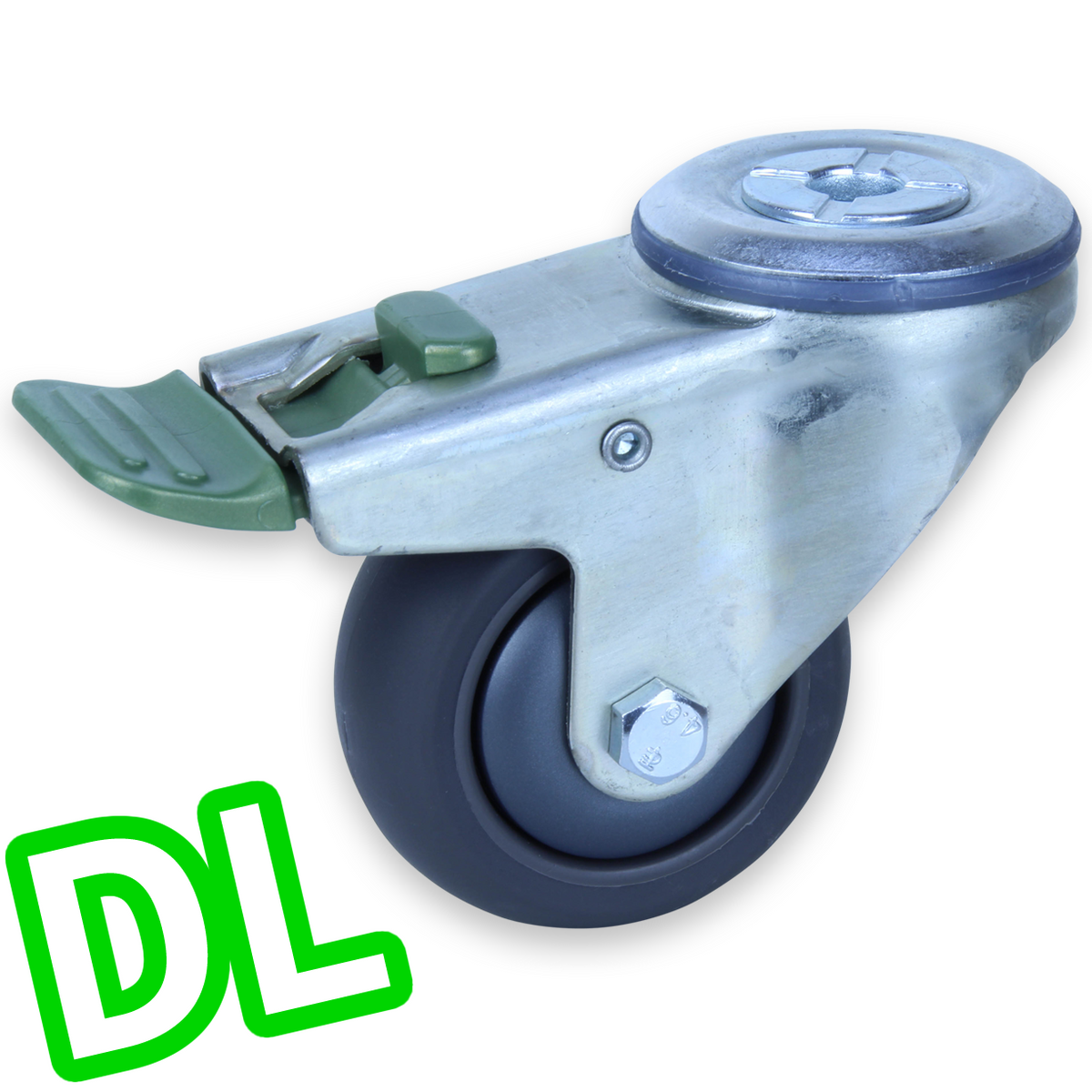

QUQ75G/MZHDL - 100 kg Bolt-Hole Direction Lock Only 75mm Polyurethane
Shipping calculated at checkout.
Data Sheet PDF
QUQ75G/MZHDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Shipping calculated at checkout.
QUQ75G/MZHDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
- SKU QUQ75G/MZHDL
-
Castor TypeSwivel
-
Capacity100 kg
-
Overall Height106 mm
- Wheel
-
Wheel DiameterØ75 mm
-
Tread Width32 mm
-
Wheel MaterialNylon
-
Tread MaterialPolyurethane
- Frame
-
Frame FinishZinc
-
Bolt Hole DiameterØ 1/2" (12.7 mm)
-
Axle TypeBolted
- Bearing & Bore
-
TypeBall Bearing
Technical Specifications
- Castor Type: Bolt-Hole
- Load Capacity: 100 kg
- Brake Type:Direction Only
- Mounting Type: 12.7mm Bolt-Hole
- Wheel Material: P/U on Nylon
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: Yes
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 75mm x 32mm
- Overall Height: 106mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 128mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Light industrial grey polyurethane castor. General use including warehouse trolleys, engineering and furniture.
