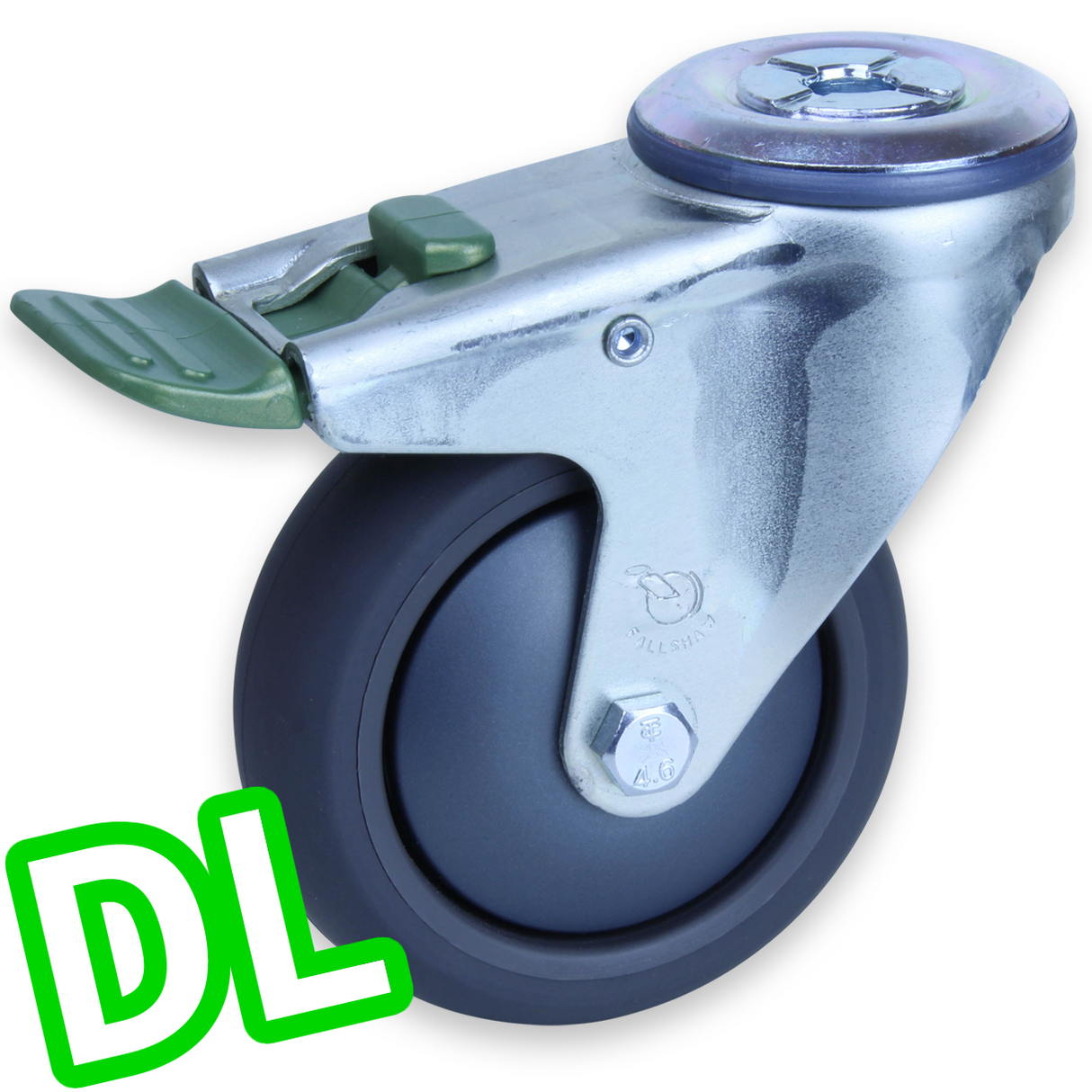

QUQ100G/MZHDL - 100 kg Bolt-Hole Direction Lock Only 100mm Polyurethane

$45.75 $48.20
GST included.
Shipping calculated at checkout.
Data sheet Data Sheet PDF

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours

Call us on (03) 9792 3949 for discounts on trade and quantity orders!

Submit an enquiry

Product Description

Technical Specifications

  • Castor Type: Bolt-Hole
  • Load Capacity: 100 kg
  • Brake Type:Direction Only

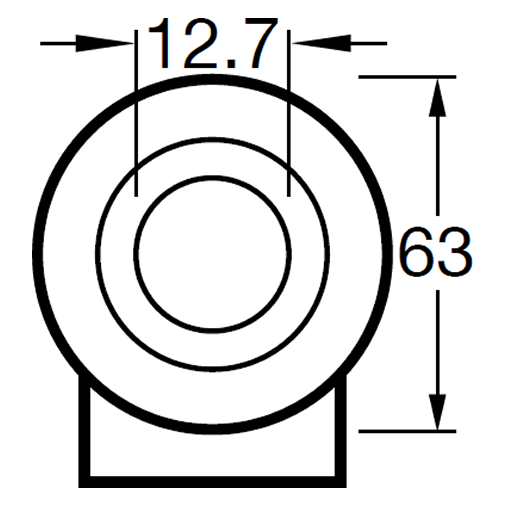

  • Mounting Type: 12.7mm Bolt-Hole
  • Wheel Material: P/U on Nylon
  • Wheel Bearing Type: Ball Bearing
  • Thread Guard Fitted?: Yes
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 135mm
  • Axle Type: Bolted
  • Swivel Radius (Inc. Brake If Fitted): 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial grey polyurethane castor. General use including warehouse trolleys, engineering and furniture.

Related Options..

  • Castor Type
    Bolt-Hole Swivel
  • Mounting Type
    Bolt Hole
  • Bolt Hole Diameter
    12.7 mm
  • Frame Finish
    Zinc
  • Maximum Capacity
    100 kg
  • Overall Height
    135 mm
  • Wheel Diameter
    100 mm
  • Wheel Material
    Nylon
  • Tread Material
    Polyurethane
  • Tread/Wheel Width
    32 mm
  • Axle Type
    Bolted
  • Bearing Type
    Ball Bearing
  • Product Range
    Premium Light Industrial Castor

Enquire about the QUQ100G/MZHDL - 100 kg Bolt-Hole Direction Lock Only 100mm Polyurethane
