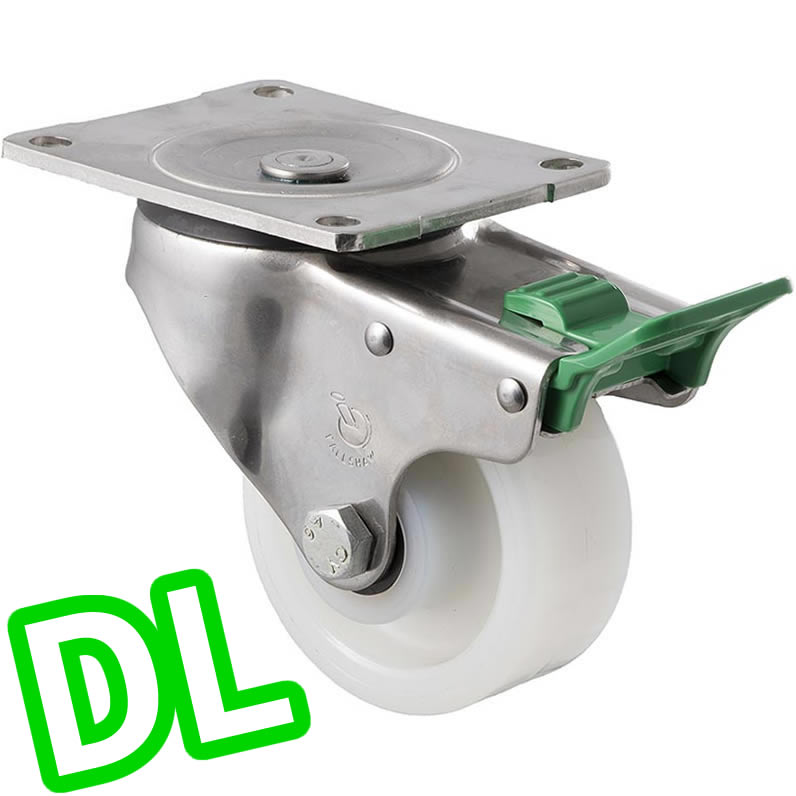

ONS100W/OSPDL - 350 Kg Stainless Steel Swivel Plate Direction Lock Only 100mm White Nylon

$126.34
GST included
Data sheet Data Sheet PDF Mounting solutions Mounting Solutions

Call us on (03) 9792 3949 for discounts on trade and quantity orders!

Submit an enquiry

Product Description

Technical Specifications

  • Castor Type: Swivel
  • Load Capacity: 350 Kg
  • Brake Type:Direction Only

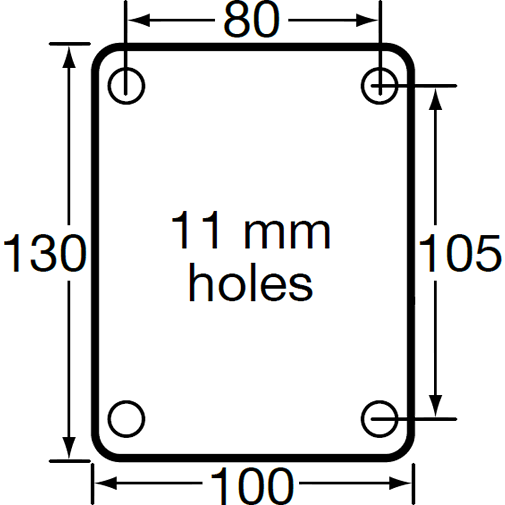

  • Mounting Type: Plate
  • Wheel Material: White Nylon
  • Wheel Bearing Type: S/S Roller Bearing
  • Thread Guard Fitted?: No
  • Frame Finish: Stainless Steel
  • Wheel Diameter X Tread Width: 100mm x 40mm
  • Overall Height: 138mm
  • Axle Type: Bolted
  • Swivel Radius (Inc. Brake If Fitted): 140mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Heavier industrial stainless steel white nylon castor. General use including food trolleys, wet areas, pharmaceutical and corrosive environments.

Related Options..

  • Wheel Diameter
    100 mm
  • Tread Width
    40 mm
  • Load Capacity
    350 kg
  • Mounting Type
    Plate
  • Wheel Material
    Nylon
  • Quality
    Premium (Best Performance)

Enquire about ONS100W/OSPDL - 350 Kg Stainless Steel Swivel Plate Direction Lock Only 100mm White Nylon
