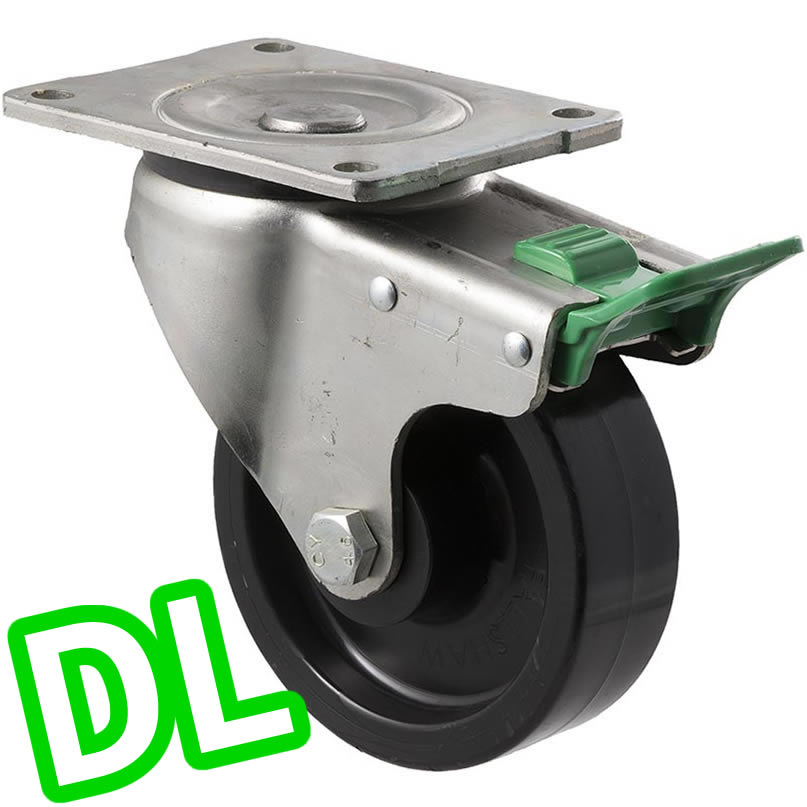

ONR125/OZPDL - 400 kg Swivel Plate Direction Lock Only 125mm Black Nylon
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
ONR125/OZPDL - 400 kg Swivel Plate Direction Lock Only 125mm Black Nylon - ISO is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
ONR125/OZPDL - 400 kg Swivel Plate Direction Lock Only 125mm Black Nylon - ISO is backordered and will ship as soon as it is back in stock.
Product Description
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 400 kg
- Brake Type:Direction Only -
- Mounting Type: Plate
- Wheel Material: Black Nylon
- Wheel Bearing Type: Needle Roller
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 125mm x 40mm
- Overall Height: 162mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 140mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Heavier Industrial black nylon castor. General use including heavier trolleys, engineering, transport and workshops.
Related Options..

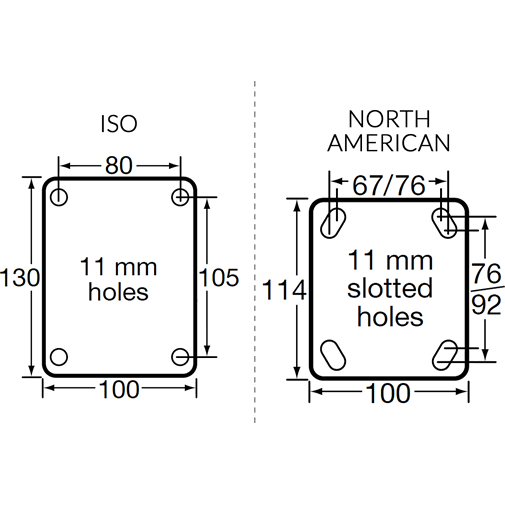

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!
-
Castor Type
-
Mounting Type
-
Frame Finish
-
Maximum Capacitykg
-
Overall Heightmm
-
Wheel Diametermm
-
Tread Material
-
Tread/Wheel Widthmm
-
Axle Type
-
Bearing Type
-
Product Range
