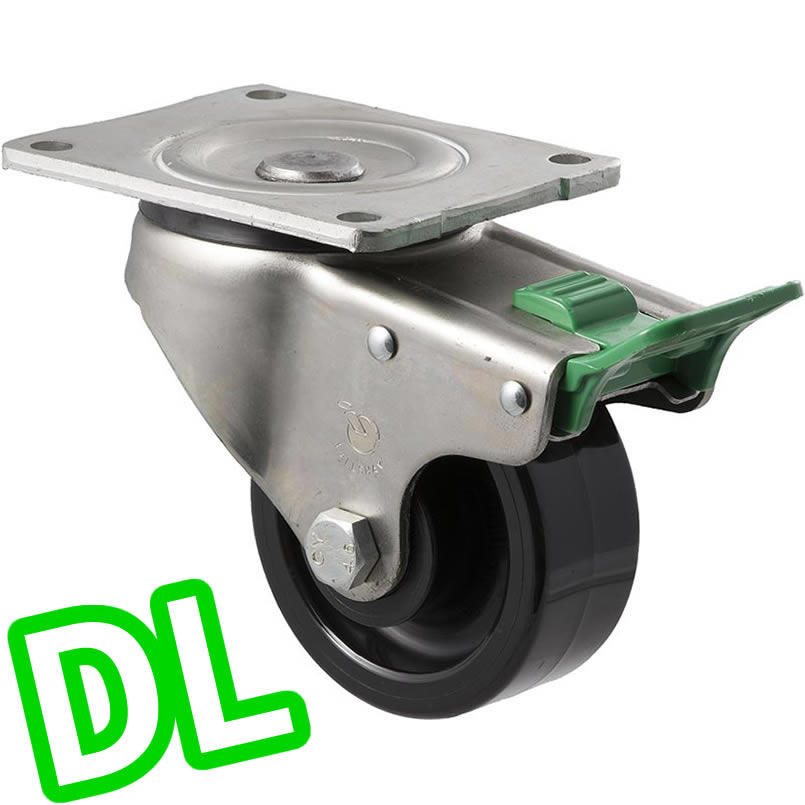

ONR100/OZPDL 350 Kg Zinc Castor Swivel Direction Lock Only Black Nylon 100mm x 40mm

Description

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 350 Kg
  • -Brake Type- Direction Only
  • -Mounting Type- Plate
  • -Wheel Material- Black Nylon
  • -Wheel Bearing Type- Needle Roller
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 40mm
  • -Overall Height- 138mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 140mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Heavier Industrial black nylon castor. General use including heavier trolleys, engineering, transport and workshops.

Related Options...

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

Top Plate Option
$61.35 (Incl. GST)
