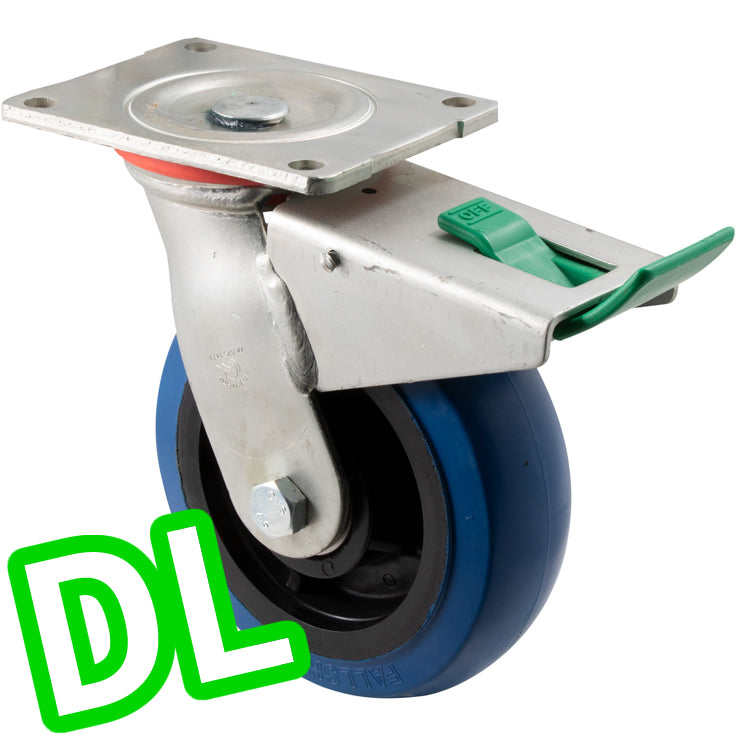

OBQ150/HZPDL - H SERIES 400 kg Swivel Plate Direction Lock Only 150mm Blue Rubber
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
OBQ150/HZPDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
OBQ150/HZPDL is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
OBQ150/HZPDL - H SERIES 400 kg Swivel Plate Direction Lock Only 150mm Blue Rubber
Shipping calculated at checkout.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
This item is currently available on backorder only.Backorders are generally dispatched within 2-4 business days from your order date.
Underlined specification values indicate differences between product options.
Please confirm all specifications before ordering.
- SKU OBQ150/HZPDL
-
Castor TypeSwivel
-
Capacity400 kg
-
Overall Height188 mm
- Wheel
-
Wheel DiameterØ150 mm
-
Tread Width45 mm
-
Tread MaterialBlue Rubber
- Frame
-
Frame FinishZinc
-
Axle TypeBolted
- Bearing & Bore
-
TypeBall Bearing
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 400 kg
- Brake Type:Direction Only
- Mounting Type: Plate
- Wheel Material: Blue Rubber
- Wheel Bearing Type: Ball Bearing
- Thread Guard Fitted?: No
- Frame Finish: Zinc
- Wheel Diameter X Tread Width: 150mm x 45mm
- Overall Height: 188mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 140mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Heavy (fabricated) industrial blue rubber castor. General use including heavy trolleys, engineering, transport and factories.

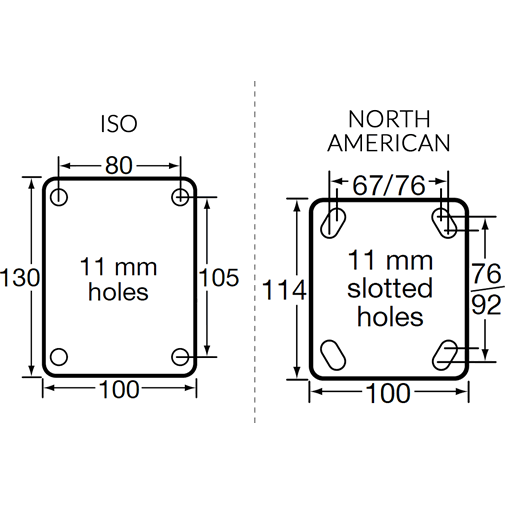

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!
Click the wheel only option to view other OBQ150 frame options.
