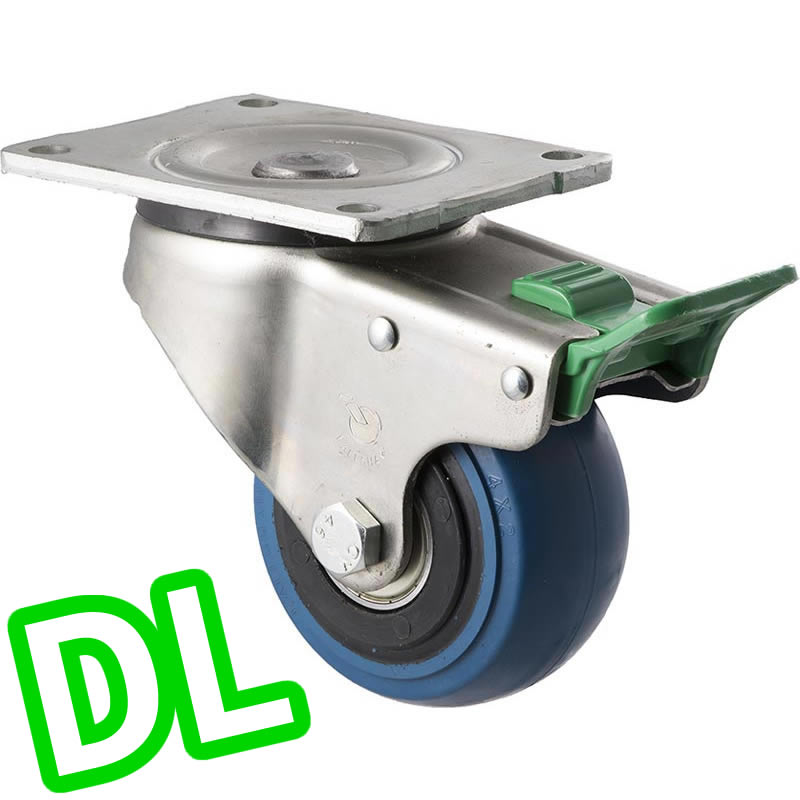

OBQ100/OZPDL 300 Kg Zinc Castor Swivel Direction Lock Only Blue Rubber 100mm x 45mm

Description

Technical Specifications

  • -Castor Type- Swivel
  • -Load Capacity- 300 Kg
  • -Brake Type- Direction Only
  • -Mounting Type- Plate
  • -Wheel Material- Blue Rubber
  • -Wheel Bearing Type- Ball Bearing
  • -Thread guard Fitted?- No
  • -Frame Finish- Zinc
  • -Wheel Diameter X Tread Width- 100mm x 45mm
  • -Overall Height- 138mm
  • -Axle Type- Bolted

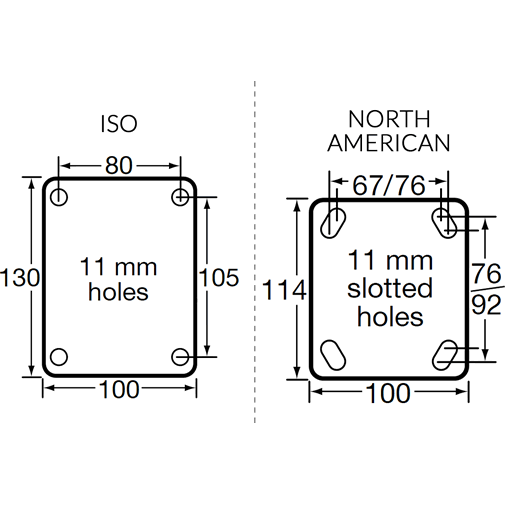

  • -Mounting Plate Dimensions- 130mm x 100mm
  • -Mounting Plate Hole Centres- 105mm x 80mm
  • -Mounting Plate Hole Diameter- 11mm
  • -Swivel Radius (inc. brake if fitted)- 162mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Heavy Industrial blue rubber castor. General use including heavier trolleys, engineering, transport and workshops.

-<--- DON'T FORGET YOUR MOUNTING HARDWARE!

Delivery or in-store pickup available.

$76.60 (Incl. GST)
