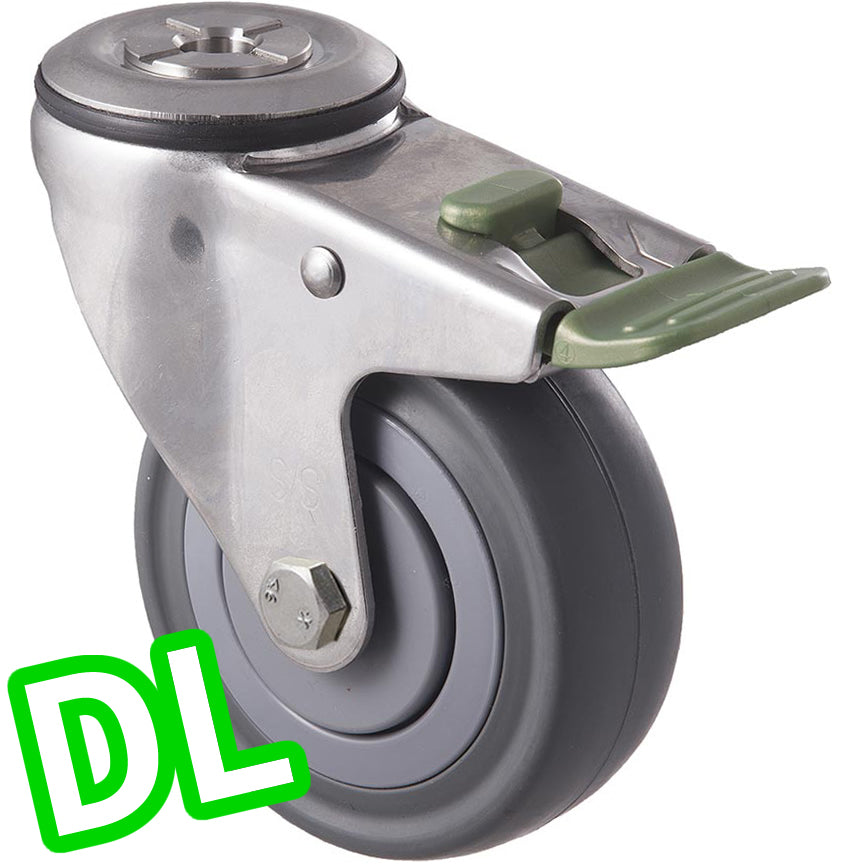

MSC100G/MSHDL 140 Kg Stainless Steel Bolt-Hole Direction Lock Only 100mm Grey Rubber

Description

Technical Specifications

  • -Castor Type- Bolt-Hole
  • -Load Capacity- 140 Kg
  • -Brake Type- Direction Only
  • -Mounting Type- 12.7mm Bolt-Hole
  • -Wheel Material- Grey Rubber
  • -Wheel Bearing Type- Plain S/S Bush
  • -Thread guard Fitted?- Yes
  • -Frame Finish- Stainless Steel
  • -Wheel Diameter X Tread Width- 100mm x 32mm
  • -Overall Height- 135mm
  • -Axle Type- Bolted
  • -Swivel Radius (inc. brake if fitted)- 128mm

***DIRECTION LOCK ONLY, NO WHEEL LOCK***

When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.

Light industrial stainless steel grey rubber castor. General use including food trolleys, wet areas, medical, pharmaceutical and corrosive environments.

Related Options..

$82.85 (Incl. GST)
