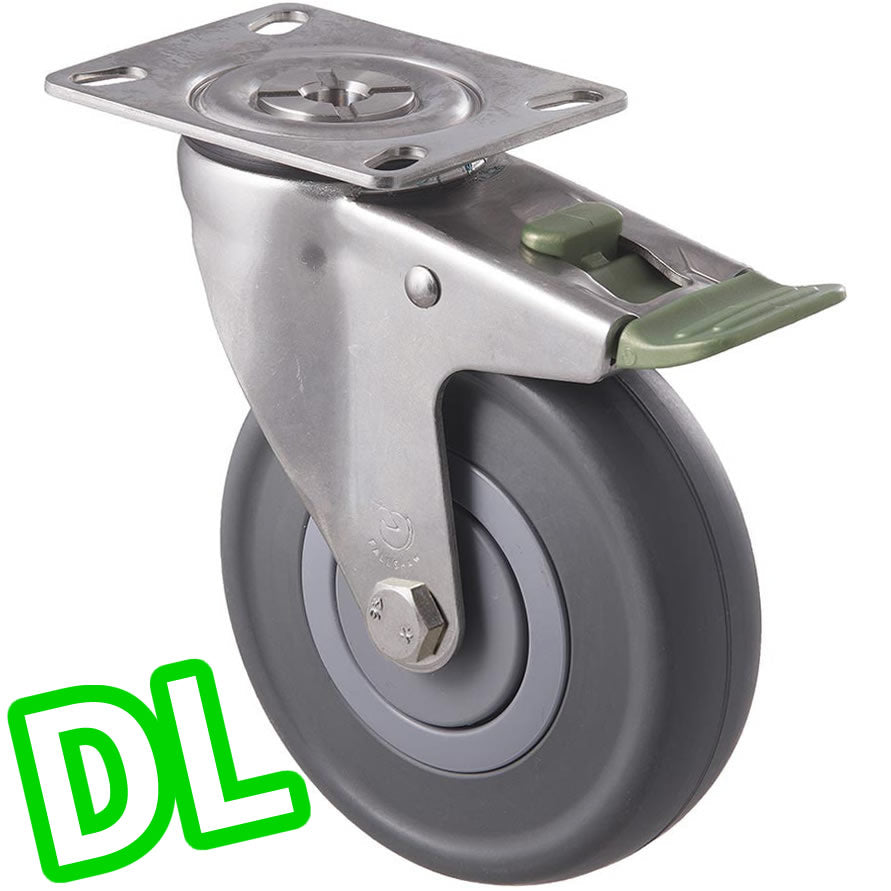

MSA125G/MSPDL 150 kg Stainless Steel Swivel Plate Direction Lock Only 125mm Grey Rubber
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
MSA125G/MSPDL 150 kg Stainless Steel Swivel Plate Direction Lock Only 125mm Grey Rubber is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
MSA125G/MSPDL 150 kg Stainless Steel Swivel Plate Direction Lock Only 125mm Grey Rubber is backordered and will ship as soon as it is back in stock.
Product Description
Technical Specifications
- Castor Type: Swivel
- Load Capacity: 150 kg
- Brake Type:Direction Only
- Mounting Type: Plate
- Wheel Material: Grey Rubber
- Wheel Bearing Type: Plain S/S Bush
- Thread Guard Fitted?: Yes
- Frame Finish: Stainless Steel
- Wheel Diameter X Tread Width: 125mm x 32mm
- Overall Height: 161mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 128mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Light industrial stainless steel grey rubber castor. General use including food trolleys, wet areas, medical, pharmaceutical and corrosive environments.
