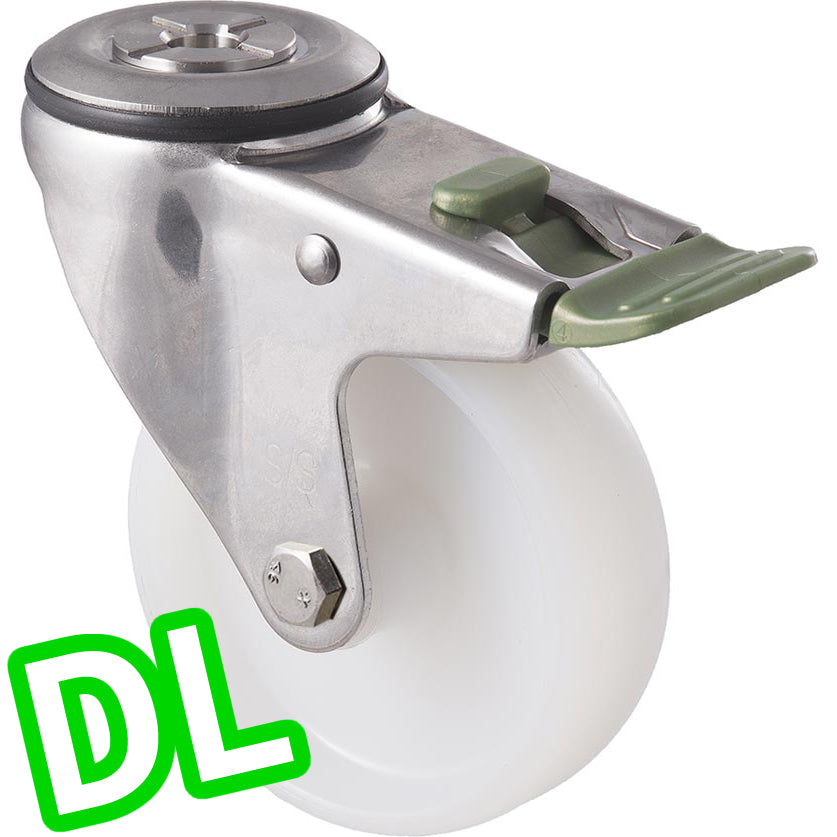

MNN100WS/MSHDL 150 Kg Stainless Steel Bolt-Hole Direction Lock Only 100mm White Nylon
Shipping calculated at checkout.
Data Sheet PDF
Mounting Solutions
MNN100WS/MSHDL 150 Kg Stainless Steel Bolt-Hole Direction Lock Only 100mm White Nylon is backordered and will ship as soon as it is back in stock.
Pickup available at 310 Sth Gippsland Hwy
Usually ready in 2 hours
Call us on (03) 9792 3949 for discounts on trade and quantity orders!
Product Description
Technical Specifications
- Castor Type: Bolt-Hole
- Load Capacity: 150 Kg
- Brake Type:Direction Only

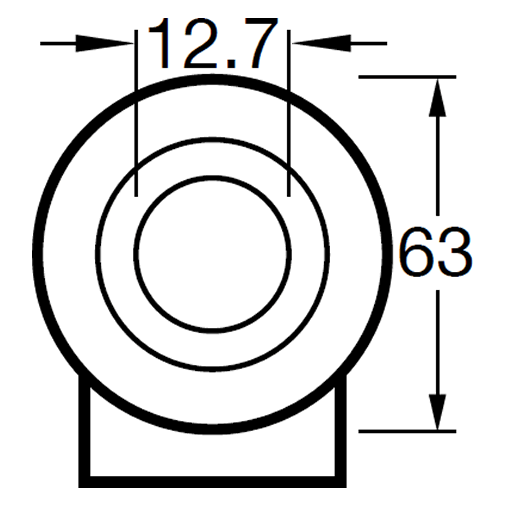

- Mounting Type: 12.7mm Bolt-Hole
- Wheel Material: White Nylon
- Wheel Bearing Type: Plain S/S Bush
- Thread Guard Fitted?: No
- Frame Finish: Stainless Steel
- Wheel Diameter X Tread Width: 100mm x 32mm
- Overall Height: 135mm
- Axle Type: Bolted
- Swivel Radius (Inc. Brake If Fitted): 128mm
***DIRECTION LOCK ONLY, NO WHEEL LOCK***
When the pedal is engaged the castor will lock in a forward direction to provide dual functionality as either a fixed castor (pedal engaged) or a swivel castor (pedal released). No brake will be applied to the wheel.
Light industrial stainless steel white nylon castor. General use including food trolleys, wet areas, medical, pharmaceutical and corrosive environments.
Related Options..
-
Wheel Diameter100 mm
-
Tread Width32 mm
-
Load Capacity150 kg
-
Mounting Type12 7mm Bolt Hole
-
Wheel MaterialNylon
-
QualityPremium (Best Performance)
