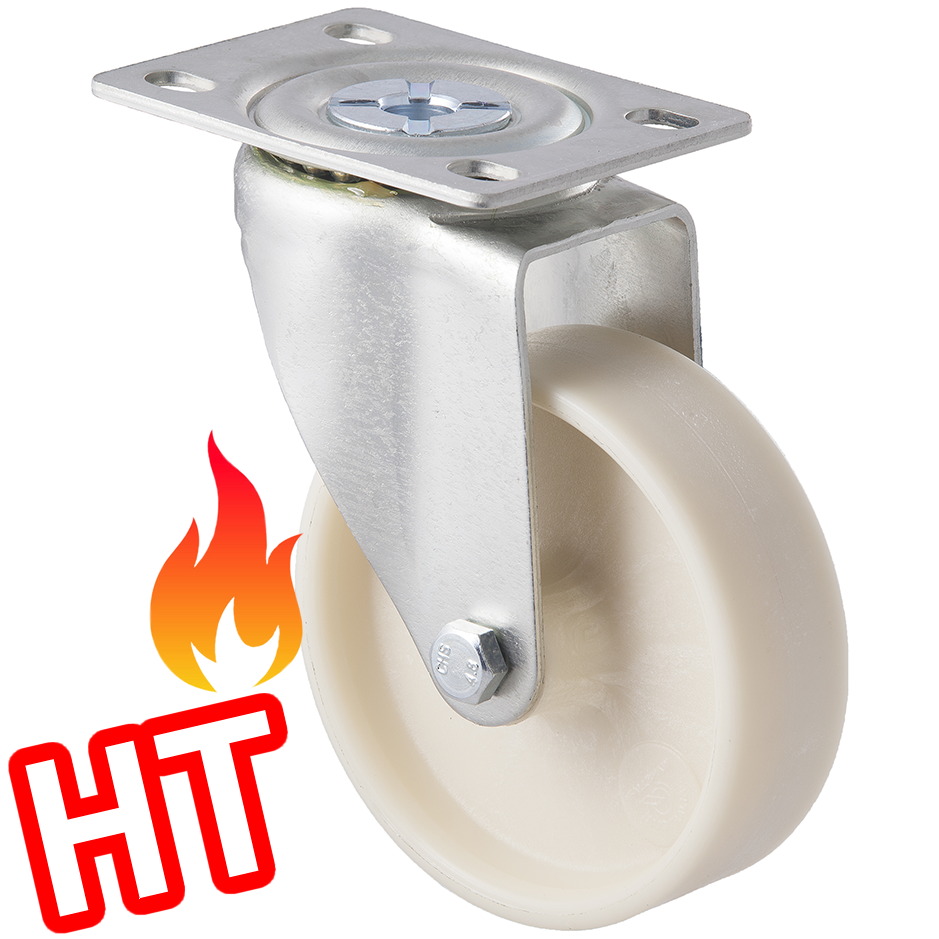

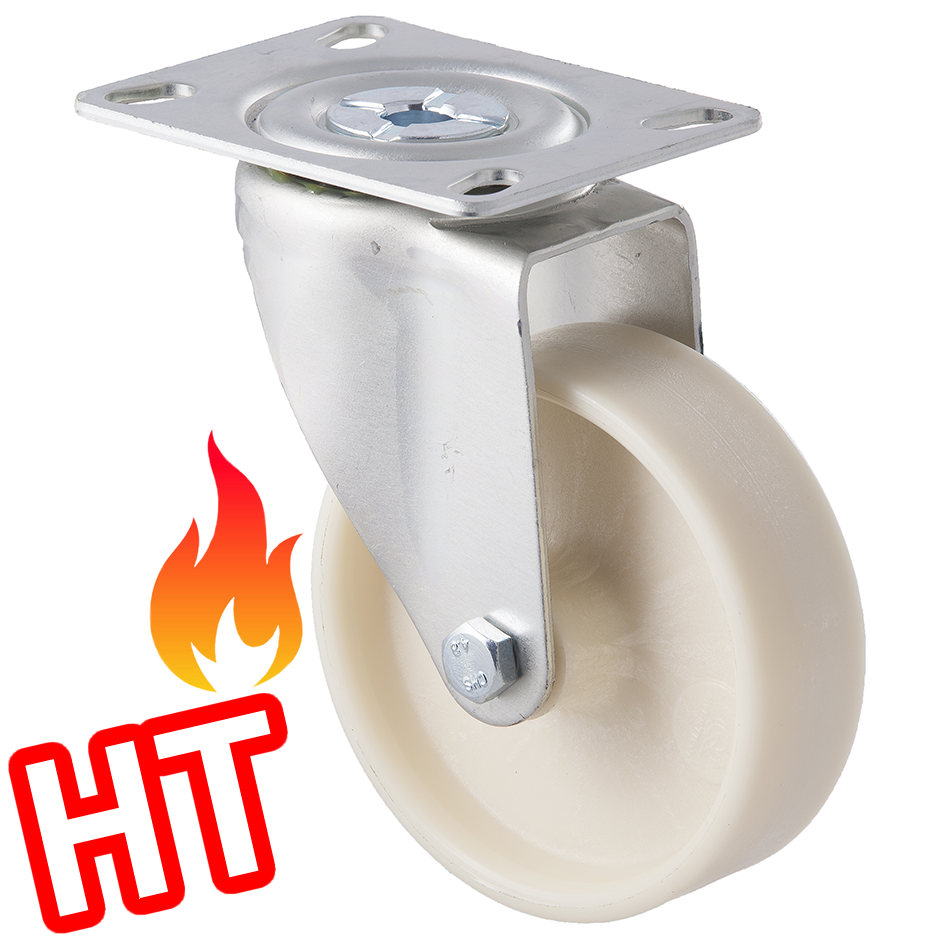

MHH100/MZPHT - 80 kg HIGH TEMP Swivel Plate 100mm Glass Filled Nylon

$45.75 $48.20
GST included.
Shipping calculated at checkout.
Data sheet Data Sheet PDF Mounting solutions Mounting Solutions
Top Plate Option

Pickup available at 310 Sth Gippsland Hwy

Usually ready in 2 hours

Call us on (03) 9792 3949 for discounts on trade and quantity orders!

Submit an enquiry

Product Description

Technical Specifications - HIGH TEMP!

  • Castor Type: Swivel
  • Load Capacity:
    • 80 kg @ 150°C
    • 70 Kg @ 180°C
    • 60 Kg @ 210°C
    • 50 Kg @ 230°C
  • Brake Type: N/A
  • Mounting Type: Plate
  • Wheel Material: Glass Filled Nylon
  • Wheel Bearing Type: Plain
  • Thread Guard Fitted?: No
  • Frame Finish: Zinc
  • Wheel Diameter X Tread Width: 100mm x 32mm
  • Overall Height: 135mm
  • Axle Type: Bolted
  • Swivel Radius (Inc. Brake If Fitted): 91mm

Light industrial high/low temp castor. General use including oven racks, powder coating trolleys and freezer trolleys.

Related Options..

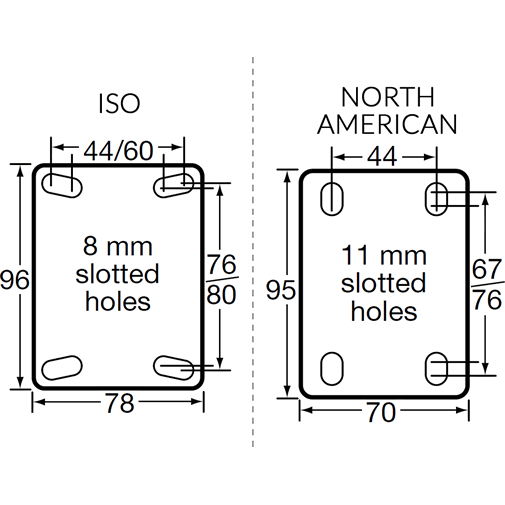

MAKE SURE TO SELECT YOUR DESIRED TOP PLATE SIZE BELOW!

  • Castor Type
    Swivel
  • Mounting Type
    Mounting Plate
  • Frame Finish
    Zinc
  • Maximum Capacity
    80 kg
  • Overall Height
    135 mm
  • Wheel Diameter
    100 mm
  • Tread Material
    Glass Filled Nylon
  • Tread/Wheel Width
    32 mm
  • Axle Type
    Bolted
  • Bearing Type
    Plain
  • Product Range
    Premium High Low Temp Castor

Enquire about the MHH100/MZPHT - 80 kg HIGH TEMP Swivel Plate 100mm Glass Filled Nylon
