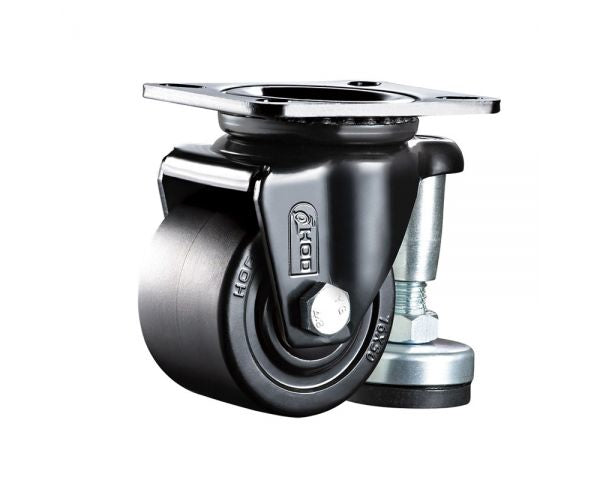

LVFNNQ75S - 75mm Heavy Duty 500kg Levelling Castor
Shipping calculated at checkout.
LVFNNQ75S - 75mm Heavy Duty 500kg Levelling Castor is backordered and will ship as soon as it is back in stock.
LVFNNQ75S - 75mm Heavy Duty 500kg Levelling Castor is backordered and will ship as soon as it is back in stock.
- SKU LVFNNQ75S
-
Castor TypeLevelling Castor
-
Capacity500 kg
-
Overall Height106 mm
- Wheel
-
Wheel DiameterØ75 mm
-
Tread MaterialBlack Nylon
- Frame
-
Frame FinishBlack Powder Coat
-
Plate Dimensions (L x W)100 x 82 mm
Technical Specifications
- Castor Type: Swivel - Levelling
- Wheel Material: Nylon with Ball Bearings
- Wheel Diameter: 75mm
- Wheel Width: 50mm
-
Frame Finish: Black Powder Coat
- Swivel Radius: 68mm
- Mounting Plate Size: 100mm x 82mm
- Plate Hole Spacing: 76.5mm x 56.5mm
- Overall Height: 106mm
- Adjustment Range: 106mm-135mm
- Levelling Foot: 1/2" thread with 50mm Base, Rubber Pad.
-
Load Capacity (Per Castor): 500kg
This robust levelling castor is engineered for applications where both mobility and stability are required. The 75mm nylon wheel offers high capacity and low rolling resistance. Swivel castor offers easy multi-directional movement.
Once the unit is in position, the integrated rubber based levelling foot can be adjusted to lift the wheel off the ground, converting the castor into a stable and vibration-resistant support.
Perfect for use with portable workstations, welding benches, equipment racks, and industrial machinery where repositioning is required, and secure levelling is critical.
